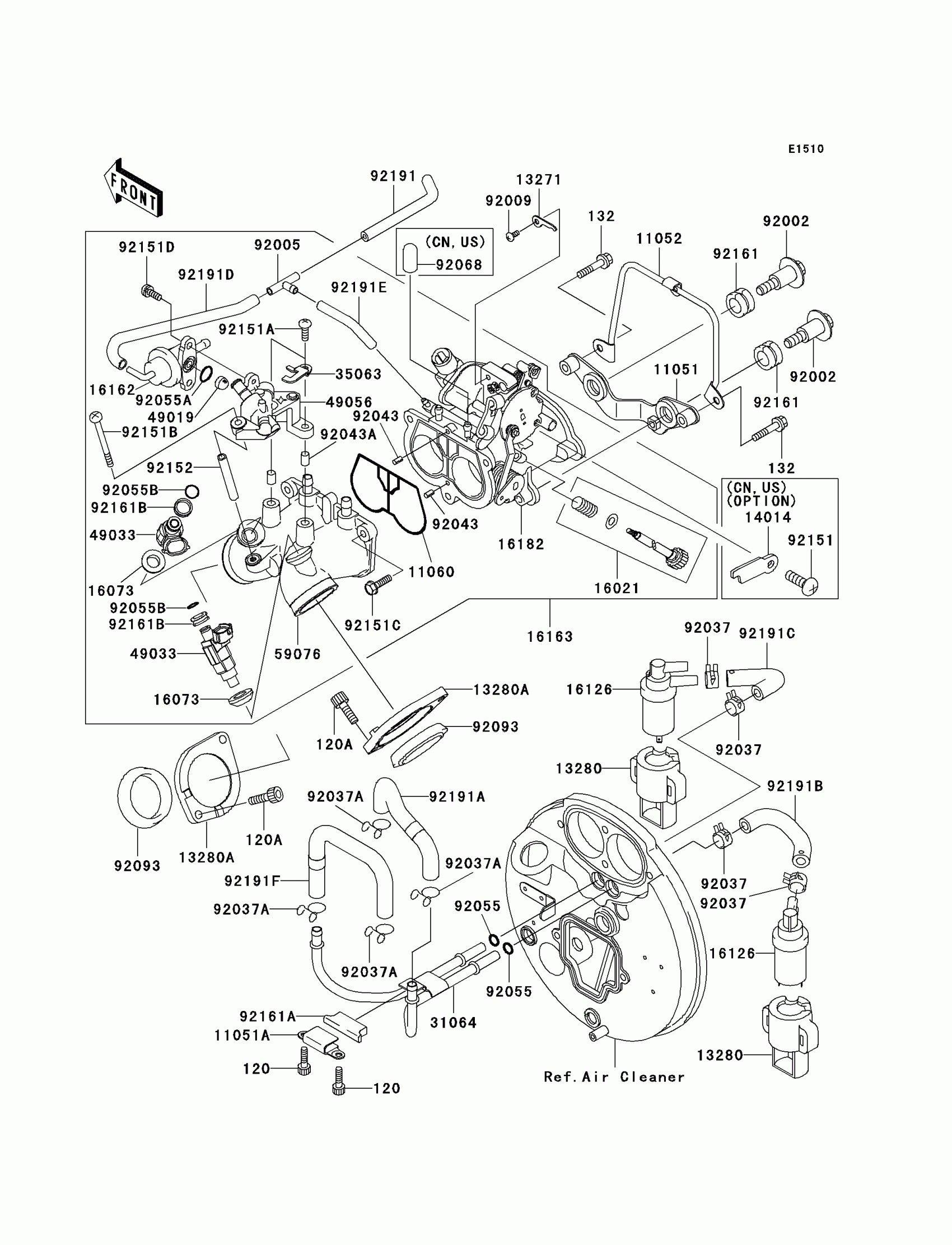

Kawasaki Vulcan 1500 Classic Fi Throttle Diagram

#

Description
Price

11051

BRACKET

11051-1333

$38.71

11051A

BRACKET

11051-1345

$7.24

11052

BRACKET,HIGH TENSHION CORD

11052-1067

$53.16

11060

GASKET,THROTTLE BODY

11060-1928

$45.68

13271

PLATE,STARTER CABLE

13271-1314

$2.75

13280

HOLDER

13280-1139

$28.48

13280A

HOLDER

13280-1154

$23.79

16021

SCREW-THROTTLE STOP

16021-1227

$99.26

16073

INSULATOR

16073-1119

$23.00

16126

VALVE

16126-1372

$72.96

16162

REGULATOR-FUEL

16162-1054

$154.38

16163

THROTTLE-ASSY

16163-1099

$1,612.99

16182

BODY-THROTTLE

16182-1002

$1,230.54

31064

PIPE-COMP

31064-1227

$52.37

35063

STAY

35063-1148

$13.62

49019

FILTER-FUEL,STRAINER

49019-3707

$8.15

49033

NOZZLE-INJECTION

49033-1057

$138.24

49056

PIPE-INJECTION

49056-1054

$1,084.53

59076

MANIFOLD-INTAKE

59076-1110

$474.46

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$13.07

92005

FITTING

92005-1366

$36.06

92009

SCREW,4X6

92009-1903

$2.06

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,12.5MM

92037-1271

$2.79

92043

PIN,THROTTLE BODY

92043-1600

$3.29

92043A

PIN,DELIVERY PIPE

92043-1601

$3.29

92055

RING-O,7.8X3.5

92055-029

$4.39

92055A

RING-O,FUEL REGULATOR

92055-1620

$3.29

92055B

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92093

SEAL

92093-1484

Unavailable

92151A

BOLT,5X20

92151-1585

Unavailable

92151B

BOLT,5X75

92151-1586

$3.02

120

BOLT-SOCKET,5X10

120S0510

$1.60

120A

BOLT-SOCKET,6X20

120Z0620

$4.35

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

92151C

BOLT,THROTTLE BODY

92151-1587

$3.97

92151D

BOLT,6X12

92151-1588

$1.94

92152

COLLAR,DELIVERY PIPE

92152-1206

$10.60

92161

DAMPER

92161-1058

$5.59

92161A

DAMPER

92161-1062

$9.47

92161B

DAMPER,INJECTION NOZZLE

92161-1083

$7.21

92191

TUBE,THROTTLE-BOOST

92191-1298

$7.55

92191A

TUBE,FRONT PORT,RED

92191-1366

$12.50

92191B

TUBE,REAR VALVE,RED

92191-1367

$8.53

92191C

TUBE,FRONT VALVE,BLUE

92191-1368

$8.53

92191D

TUBE,L=130

92191-1402

$5.15

92191E

TUBE,L=55

92191-1403

$4.37

92191F

TUBE,REAR PORT,YELLOW

92191-1564

$12.12

14014

PLATE-POSITION,25KW

14014-1142

$13.00

92068

PLUG,12X25

92068-006

$4.26

92151

BOLT,5X10,25KW

92151-1528

$4.74
