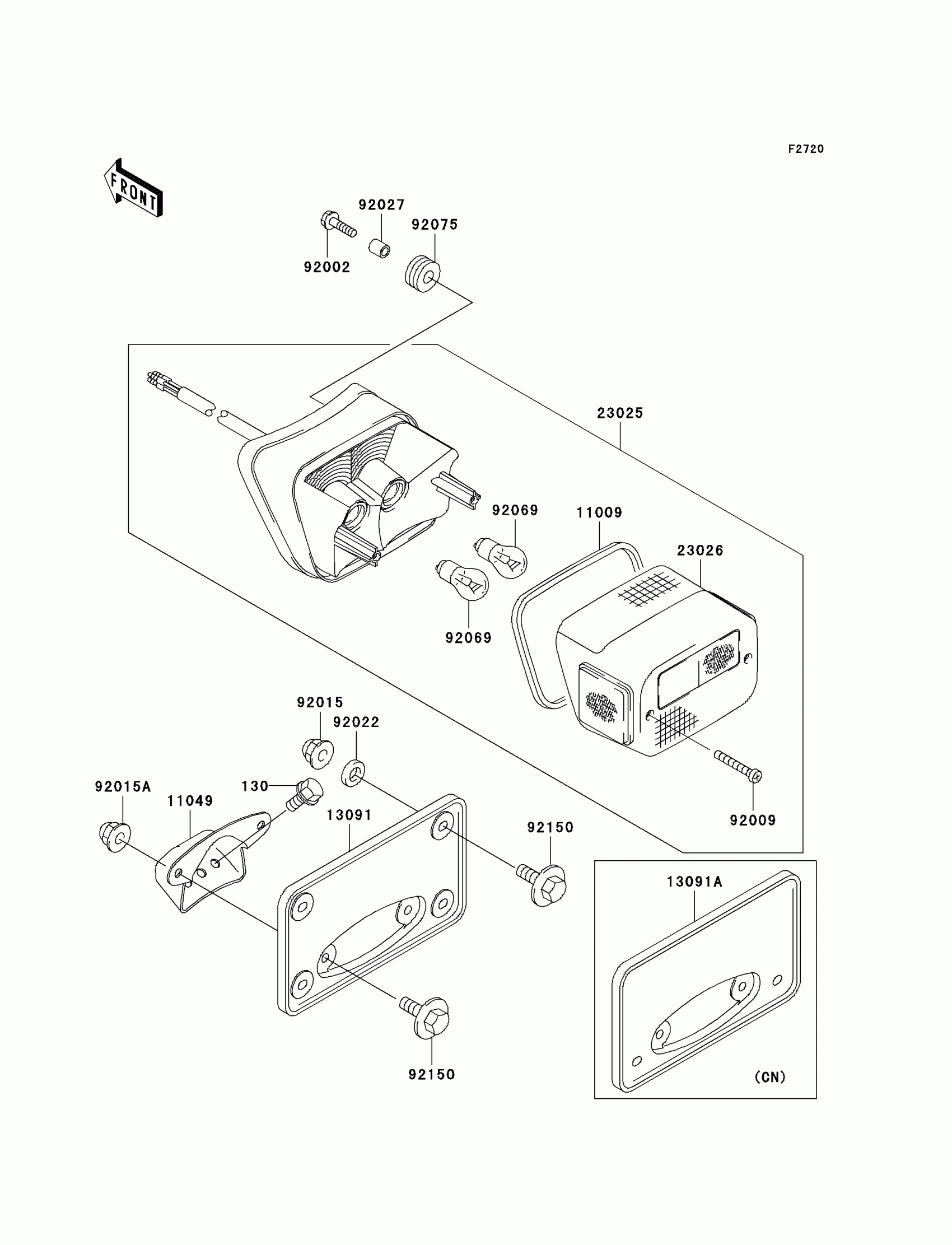

Kawasaki Vulcan 1500 Classic Fi Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130V0610

Unavailable

11009

GASKET,TAIL LAMP LENS

11009-1660

$9.13

11049

BRACKET,LICENSE PLATE

11049-1604

$79.79

23025

LAMP-TAIL

23025-1295

$320.96

23026

LENS,TAIL LAMP

23026-1087

$49.90

92002

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92015A

NUT,CAP,6MM

92015-1385

$4.31

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

13091

HOLDER,LICENSE PLATE

13091-1500

$26.23

13091A

HOLDER,LICENSE PLATE

13091-1952

Unavailable

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92150

BOLT,6X14

92150-1133

$4.31

92150

BOLT,6X14

92150-1133

$4.31
