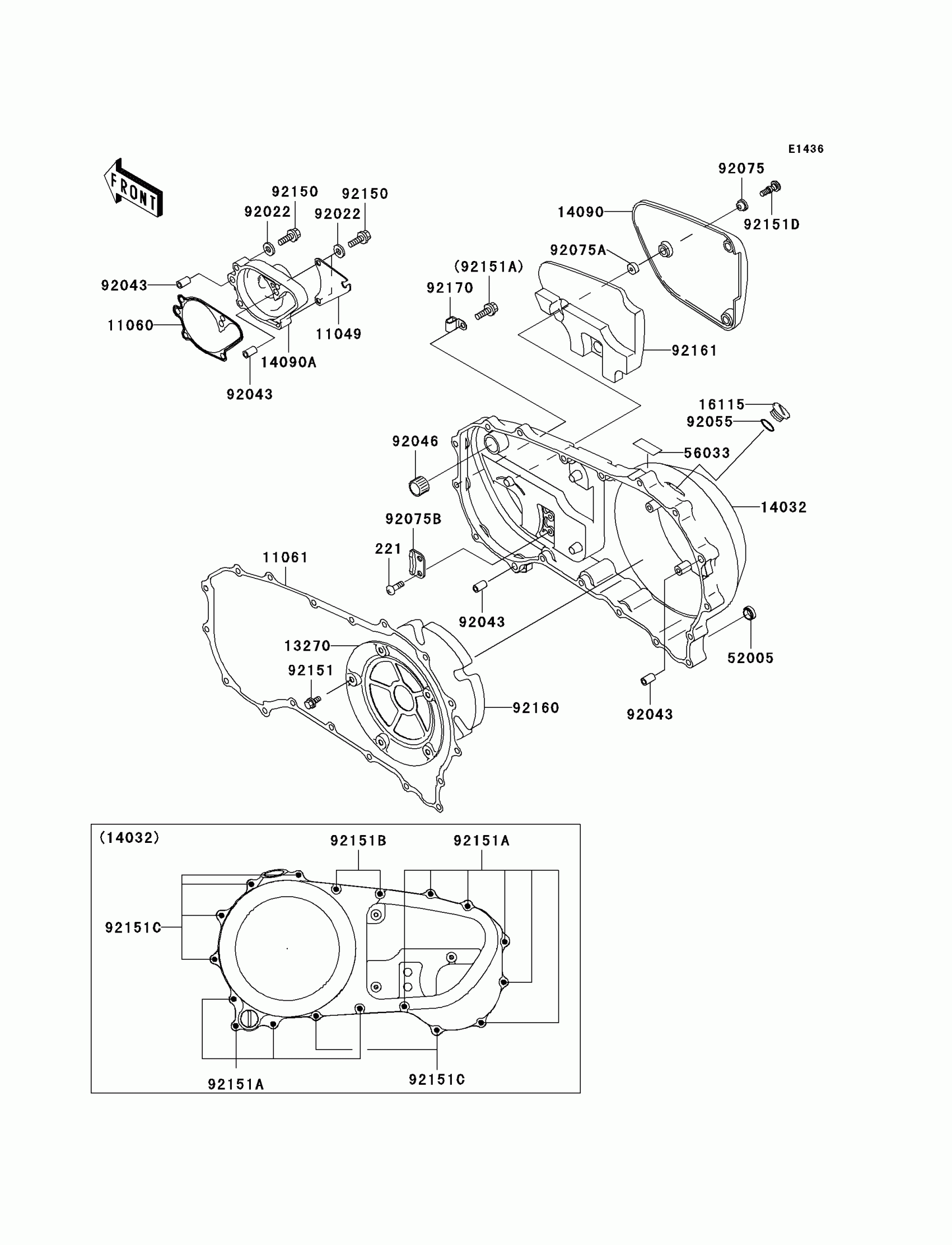

Kawasaki Vulcan 1500 Classic Fi Right Engine Cover(s) Diagram

Description

Price

221

SCREW-CSK-CROS,6X12

221B0612

$2.06

11049

BRACKET

11049-1789

$7.98

11060

GASKET,WATER PUMP COVER

11060-1124

Unavailable

11061

GASKET,CLUTCH COVER

11061-1081

$41.22

13270

PLATE

13270-1592

$21.29

14032

COVER-CLUTCH

14032-1493

$754.28

14090

COVER,CLUTCH OUTER

14090-1678

$180.43

14090A

COVER,WATER PUMP

14090-1932

$68.90

16115

CAP-OIL FILLER

16115-1063

$30.09

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

56033

LABEL-MANUAL,OIL CAPACITY

56033-1156

$6.55

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1212

92046-1163

$15.17

92055

RING-O,31.5X2.6

92055-049

$4.31

92075

DAMPER

92075-1855

$8.10

92075A

DAMPER

92075-1856

$9.57

92075B

DAMPER

92075-1905

$11.07

92150

BOLT,6X30

92150-1021

Unavailable

92151

BOLT,6X10

92151-1064

$3.13

92151A

BOLT,6X25

92151-1130

$2.80

92151B

BOLT,6X30

92151-1134

$2.15

92151C

BOLT,6X35

92151-1135

$4.18

92151D

BOLT,SOCKET,6X22.5

92151-1273

$8.12

92160

DAMPER

92160-1716

$34.47

92161

DAMPER

92161-1139

$83.64

92170

CLAMP

92170-1804

$5.29
