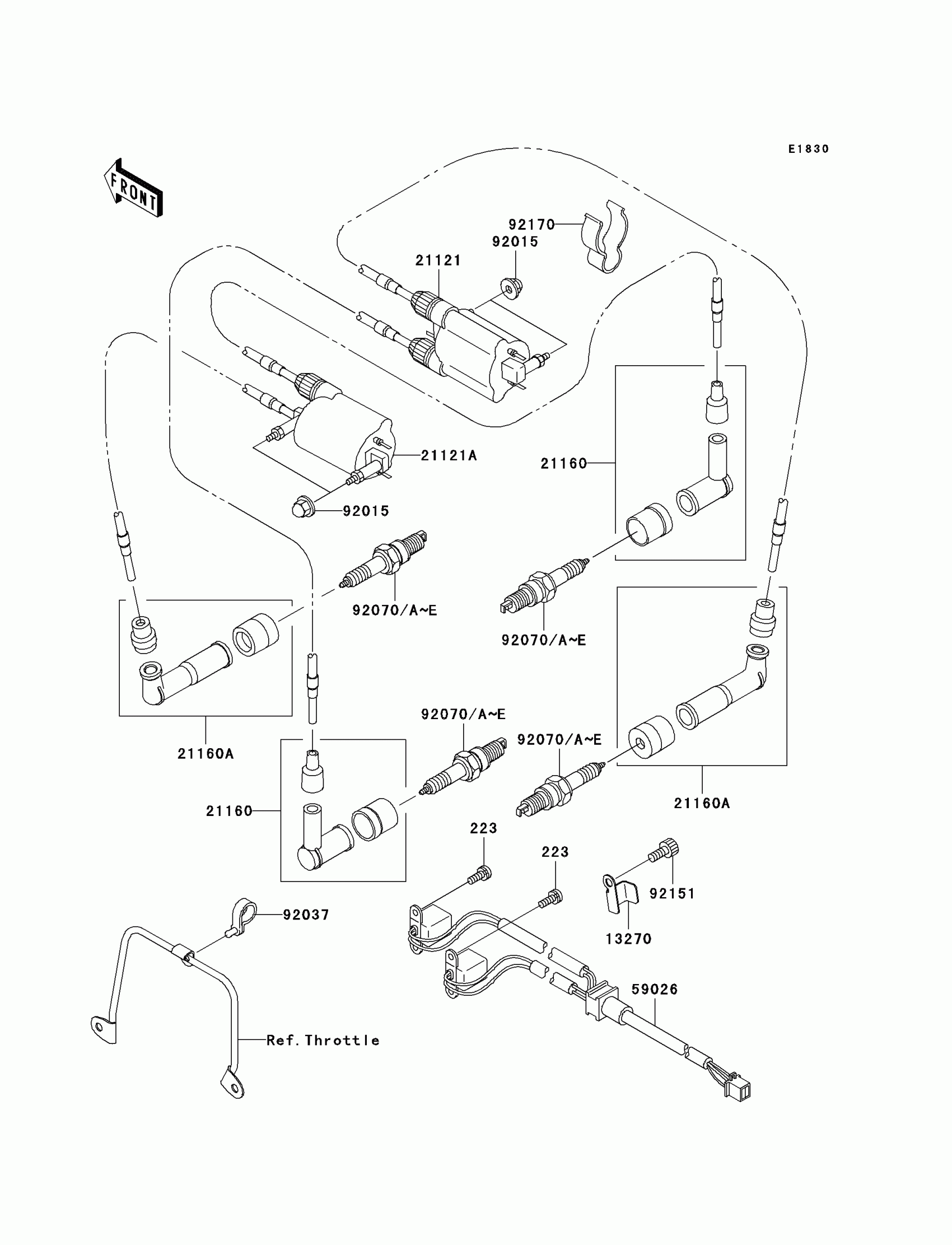

Kawasaki Vulcan 1500 Classic Fi Ignition System Diagram

Description

Price

223

SCREW-PAN-WS-CROS,5X16

223B0516

$5.19

13270

PLATE

13270-1979

$3.44

21121

COIL-IGNITION,RR

21121-1288

$149.76

21121A

COIL-IGNITION,FR

21121-1289

$149.76

21160

CAP-ASSY-PLUG

21160-1085

$30.12

21160A

CAP-ASSY-PLUG

21160-1091

$30.91

59026

COIL-PULSING

59026-1157

$131.81

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92070

Not Available As Spare Part - Friction Washer

Unavailable

92070A

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

Unavailable

92070B

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

$3.62

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92070D

PLUG-SPARK,DPR5EA9(NGK)

92070-1250

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92151

BOLT,6X10

92151-3704

$4.20

92170

CLAMP,HOSE

92170-1930

$9.47
