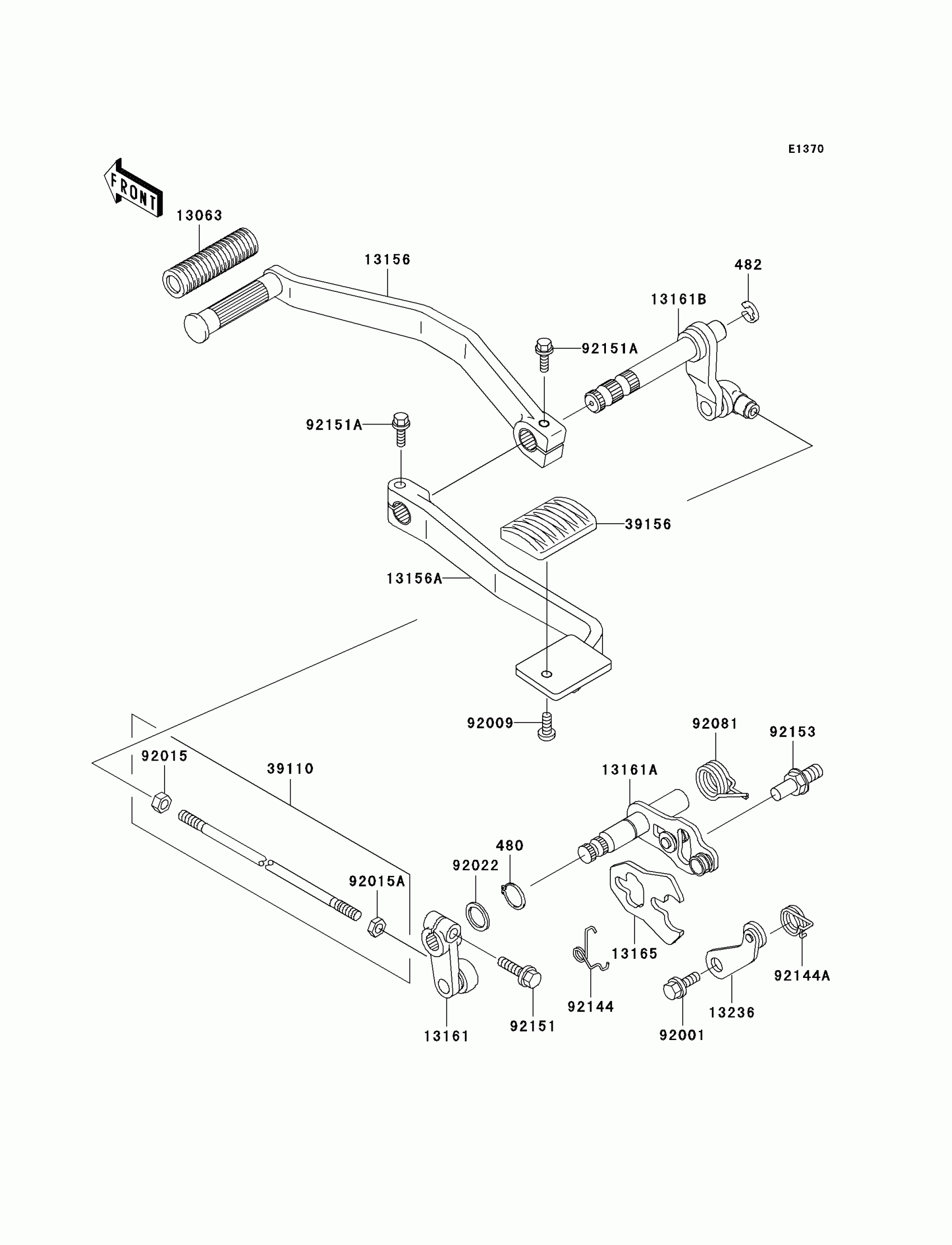

Kawasaki Vulcan 1500 Classic Fi Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

13063

DAMPER,PEDAL

13063-002

$5.00

13156

LEVER-CHANGE

13156-1456

$90.31

13156A

LEVER-CHANGE

13156-1467

$86.72

13161

LEVER-COMP-CHANGE SHAFT

13161-1253

$75.46

13161A

LEVER-COMP-CHANGE SHAFT

13161-1254

$67.33

13161B

LEVER-COMP-CHANGE SHAFT

13161-1266

$69.25

13165

PAWL

13165-1120

$14.10

13236

LEVER-COMP,POSITION

13236-1126

$13.60

39110

ROD-ASSY-TIE

39110-1119

$15.39

39156

PAD

39156-1641

$11.68

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92009

SCREW,6X8

92009-1677

$4.31

92015

NUT,6MM

92015-1443

$3.92

92015A

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$10.19

92144

SPRING

92144-1029

$7.77

92144A

SPRING,RETURN

92144-1140

$8.88

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92151A

BOLT,6X25

92151-1898

$2.73

92153

BOLT,RETURN SPRING

92153-1076

$9.07
