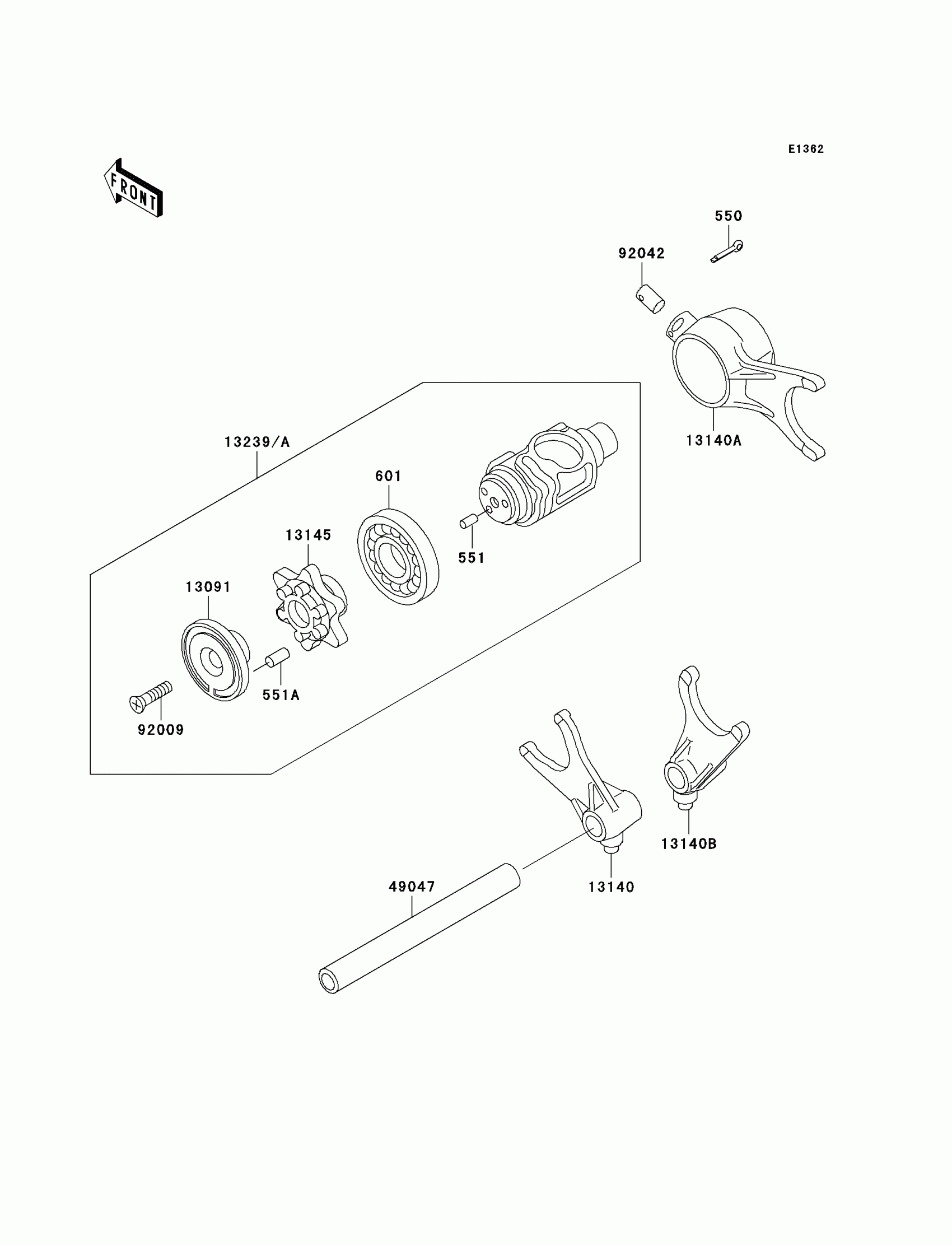

Kawasaki Vulcan 1500 Classic Fi Gear Change Drum/Shift Fork(s) Diagram

Description

Price

550

PIN-COTTER,3.0X20

550D3020

$1.78

551

PIN-DOWEL,4X8

551A0408

$0.78

551A

PIN-DOWEL

551A0412

$1.59

601

BEARING-BALL

601A6005

$13.82

13091

HOLDER,CHANGE DRUM PIN

13091-1104

$26.23

13140

FORK-SHIFT,OUTPUT TOP

13140-1270

$115.97

13140A

FORK-SHIFT,INPUT 3RD

13140-1292

$118.99

13140B

FORK-SHIFT,OUTPUT 4TH

13140-1293

$118.99

13145

CAM-CHANGE DRUM

13145-1089

$53.01

13239A

DRUM-ASSY-CHANGE

13239-1210

Unavailable

49047

ROD-SHIFT

49047-1095

$27.80

92009

SCREW,6X45

92009-1599

$3.96

92042

PIN,DOWEL,8X18

92042-021

$11.51
