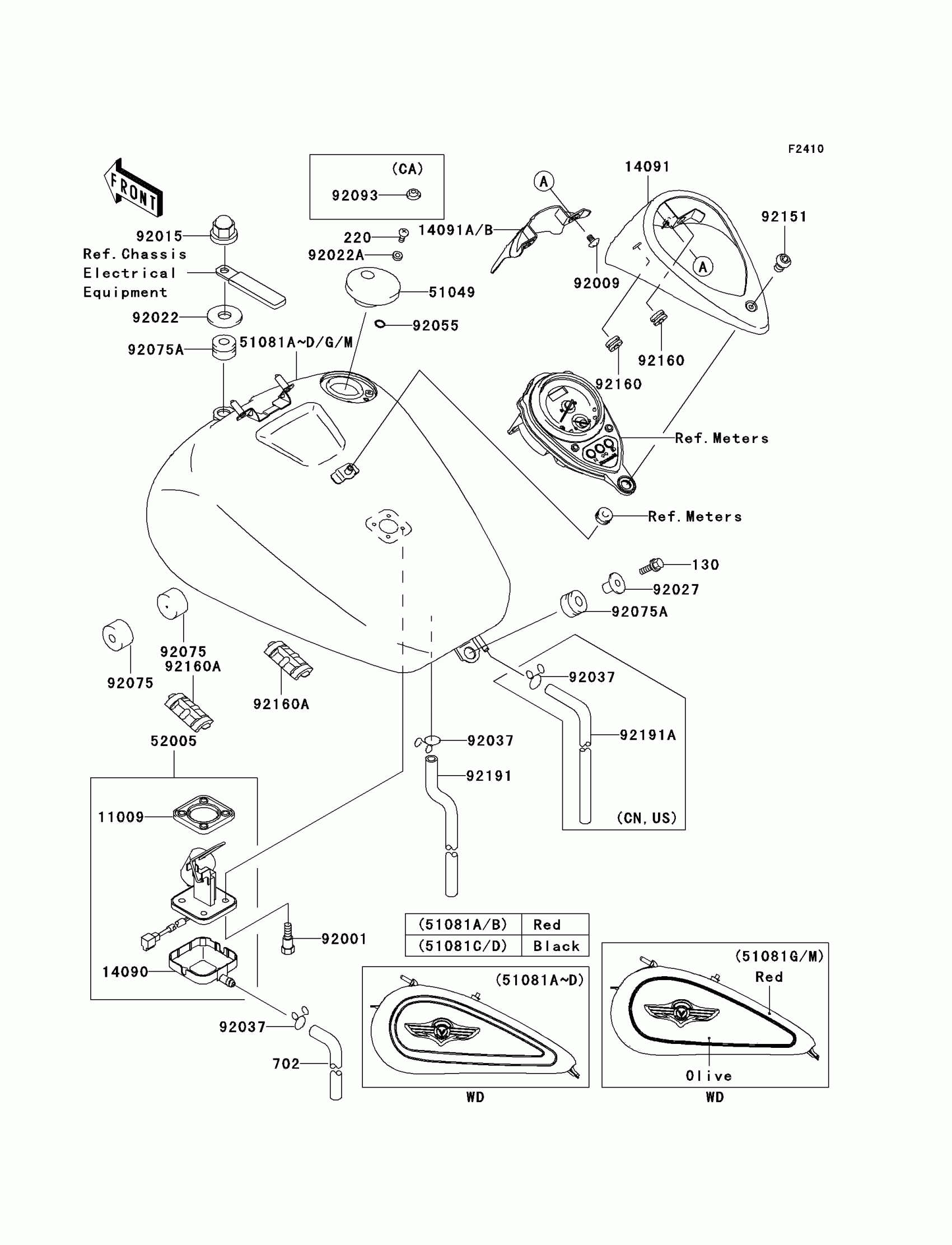

Kawasaki Vulcan 1500 Classic Fi Fuel Tank(VN1500-N1/N2) Diagram

Description

Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$17.07

14091

COVER,METER

14091-1208

$163.72

14091B

COVER,METER,FR

14091-1301

$41.47

51049

CAP-TANK,FUEL

51049-1121

$109.78

52005

GAUGE,FUEL

52005-1138

$145.71

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92009

SCREW,6X12

92009-1877

$2.06

130

BOLT-FLANGED,8X30

130H0830

$1.92

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$13.38

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92022

WASHER,8X26X2.3

92022-1345

$4.31

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=19.3

92027-1780

$6.57

92055

RING-O

92055-1023

$3.92

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER

92075-1736

$6.57

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER,FUEL TANK

92160-1907

$19.13

92191

TUBE,DRAIN

92191-1272

$24.06

51081C

TANK-COMP-FUEL,BLACK

51081-5299-B5

$1,431.76

51081D

TANK-COMP-FUEL,BLACK

51081-5300-B5

Unavailable

51081G

TANK-COMP-FUEL,OLIVE/RED

51081-5344-ZI

Unavailable

51081M

TANK-COMP-FUEL,OLIVE/RED

51081-5391-ZI

Unavailable

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92191A

TUBE,5X10X650

92191-1529

$14.39
