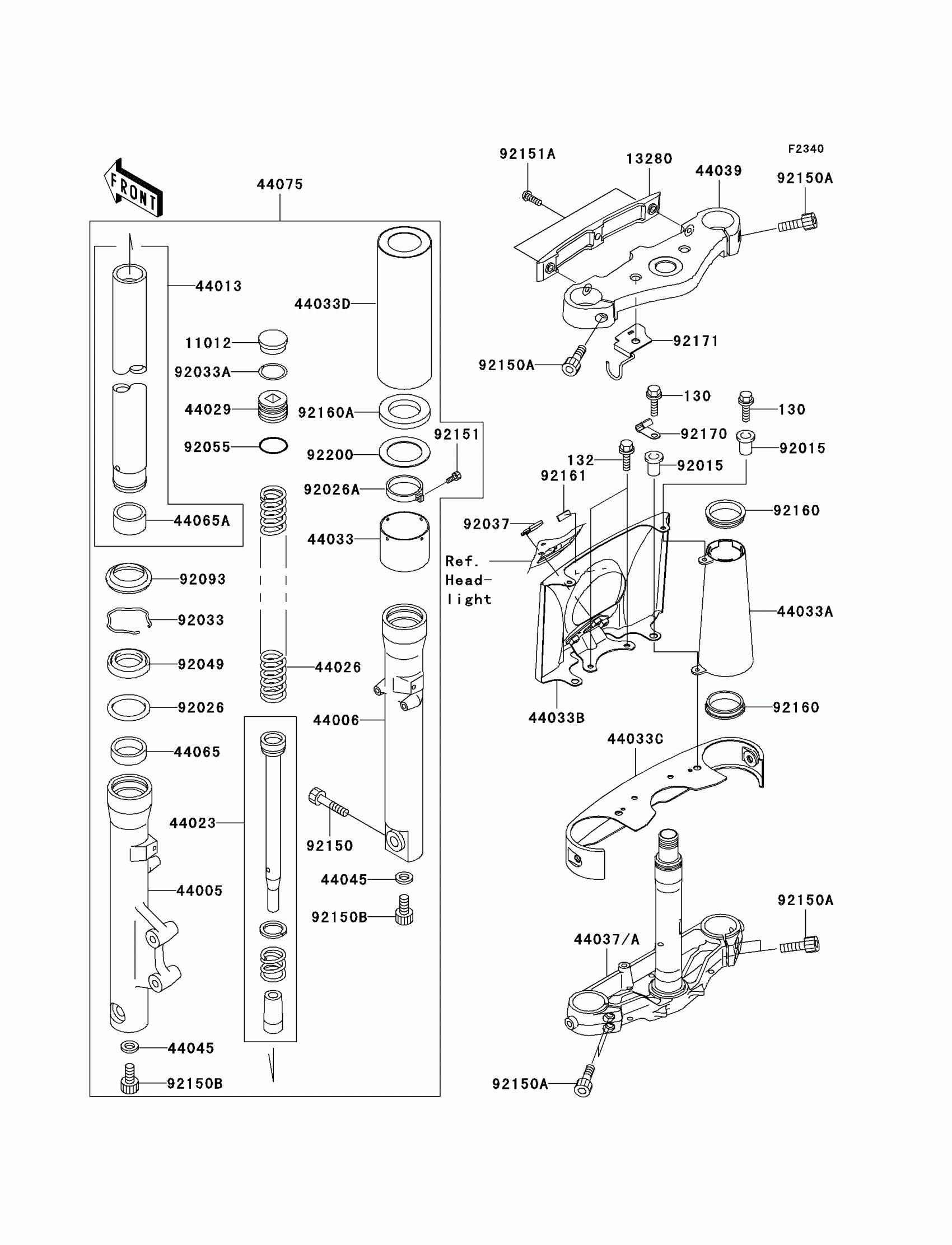

Kawasaki Vulcan 1500 Classic Fi Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$25.14

13280

HOLDER,UPPER BRACKET

13280-1161

$127.34

44005

PIPE-LEFT FORK OUTER

44005-1366

$448.70

44006

PIPE-RIGHT FORK OUTER

44006-1365

$448.70

44013

PIPE-FORK INNER

44013-1462

$475.95

44023

CYLINDER-SET-FORK

44023-1129

$131.16

44026

SPRING-FRONT FORK

44026-1717

$99.40

44029

SEAT-FORK SPRING

44029-1125

$42.88

44033

COVER-FORK

44033-1223

$22.88

44033A

COVER-FORK,UPP

44033-1229

$111.77

44033B

COVER-FORK,CNT

44033-1255

$113.28

44033C

COVER-FORK,LWR

44033-1257

$185.13

44033D

COVER-FORK

44033-1261

$140.00

44037A

HOLDER-FORK UNDER

44037-1411

$458.35

44039

HOLDER-FORK UPPER

44039-1305

$326.96

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-1079

$24.34

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$30.09

44075

DAMPER-SET-FORK

44075-1114

$1,337.56

92015

NUT,WELL,5MM

92015-1757

$7.29

92026

SPACER,FORK OUTER

92026-1276

$9.51

92026A

SPACER

92026-1515

$15.83

92033

RING-SNAP

92033-1222

$6.51

92033A

RING-SNAP,SPRING SEAT

92033-1223

$6.82

92037

CLAMP,L=45

92037-1539

$5.00

92049

SEAL-OIL,FORK

92049-1363

$25.52

92055

RING-O,SPRING SEAT

92055-1363

$7.34

92093

SEAL,FORK

92093-1268

$24.97

92150

BOLT,SOCKET,10X40

92150-1029

$11.07

92150A

BOLT,SOCKET,8X30

92150-1031

$9.63

92150B

BOLT,SOCKET,8X18

92150-1432

$9.91

92151

BOLT,SOCKET,4X16

92151-1356

$2.46

92151A

BOLT,SOCKET,8X25

92151-1753

$7.62

92160

DAMPER

92160-1892

$3.57

92160A

DAMPER

92160-1927

$7.91

92161

DAMPER

92161-1177

$4.62

92170

CLAMP,HARNESS

92170-1900

$6.26

92171

CLAMP,BRAKE HOSE

92171-1353

$24.65

92200

WASHER

92200-1417

$7.57

130

BOLT-FLANGED,5X16

130J0516

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41
