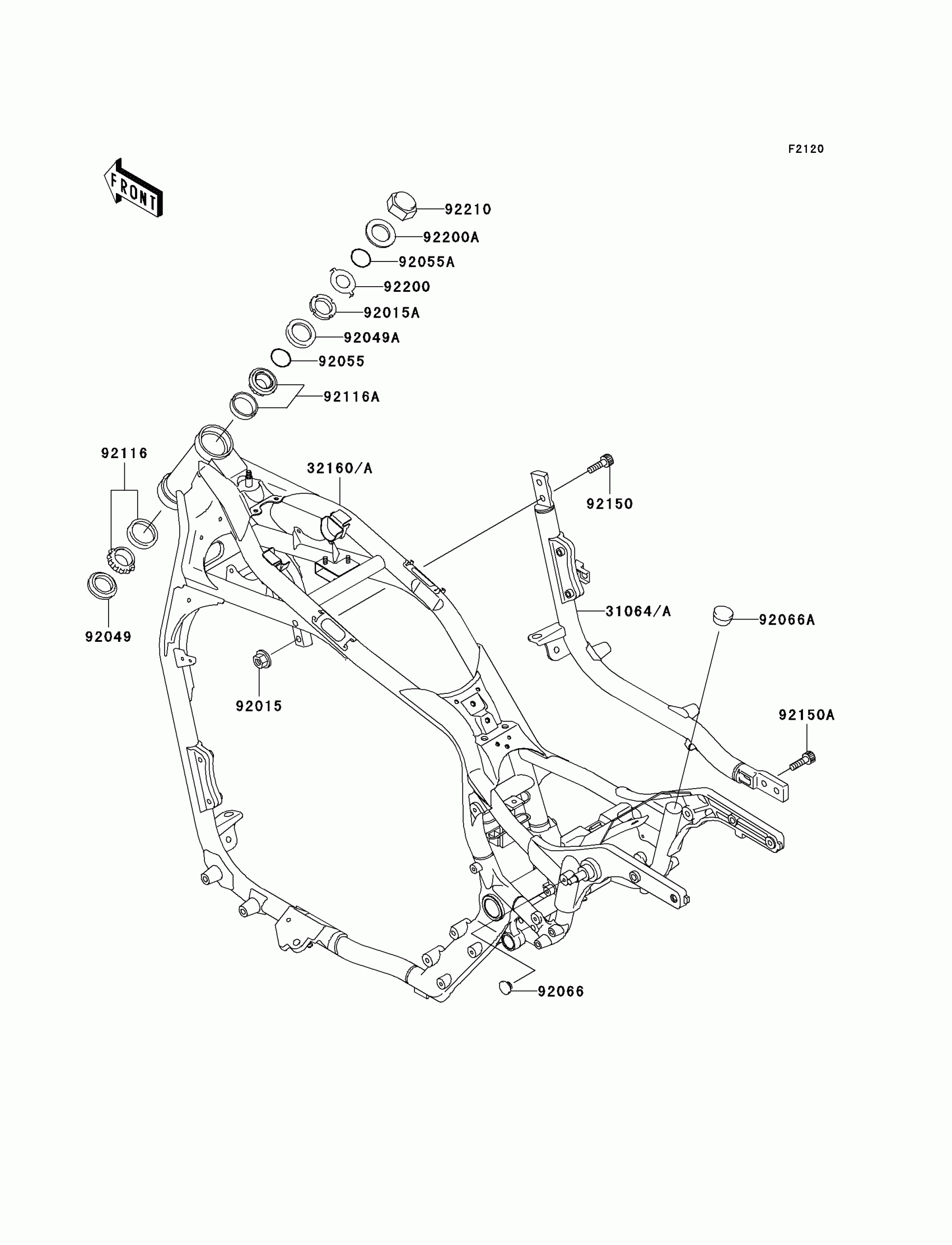

Kawasaki Vulcan 1500 Classic Fi Frame Diagram

Description

Price

31064A

PIPE-COMP,DOWNTUBU,RH

31064-1237

$488.14

32160A

FRAME-COMP

32160-1679

$2,490.56

92015

NUT,FLANGED,10MM

92015-1727

$4.31

92015A

NUT,STEERING STEM,35MM

92015-1848

$44.08

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

$19.64

92049A

SEAL-OIL,MX043N2

92049-1483

$20.39

92055

RING-O,34.5X2.0

92055-1452

$5.24

92055A

RING-O,ID=24.5

92055-1459

$4.73

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92066A

PLUG

92066-1444

$6.89

92116

BEARING-ROLLER,32907JR-2

92116-1072

$71.91

92116A

BEARING-ROLLER,32907JR-3

92116-1074

$71.91

92150

BOLT,SOCKET,10X30

92150-1690

$6.22

92150A

BOLT,SOCKET,10X23

92150-1942

$7.34

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

$6.57

92200A

WASHER,25.5X42X2.3

92200-1084

$7.62

92210

NUT,CAP,25MM

92210-1166

$23.99
