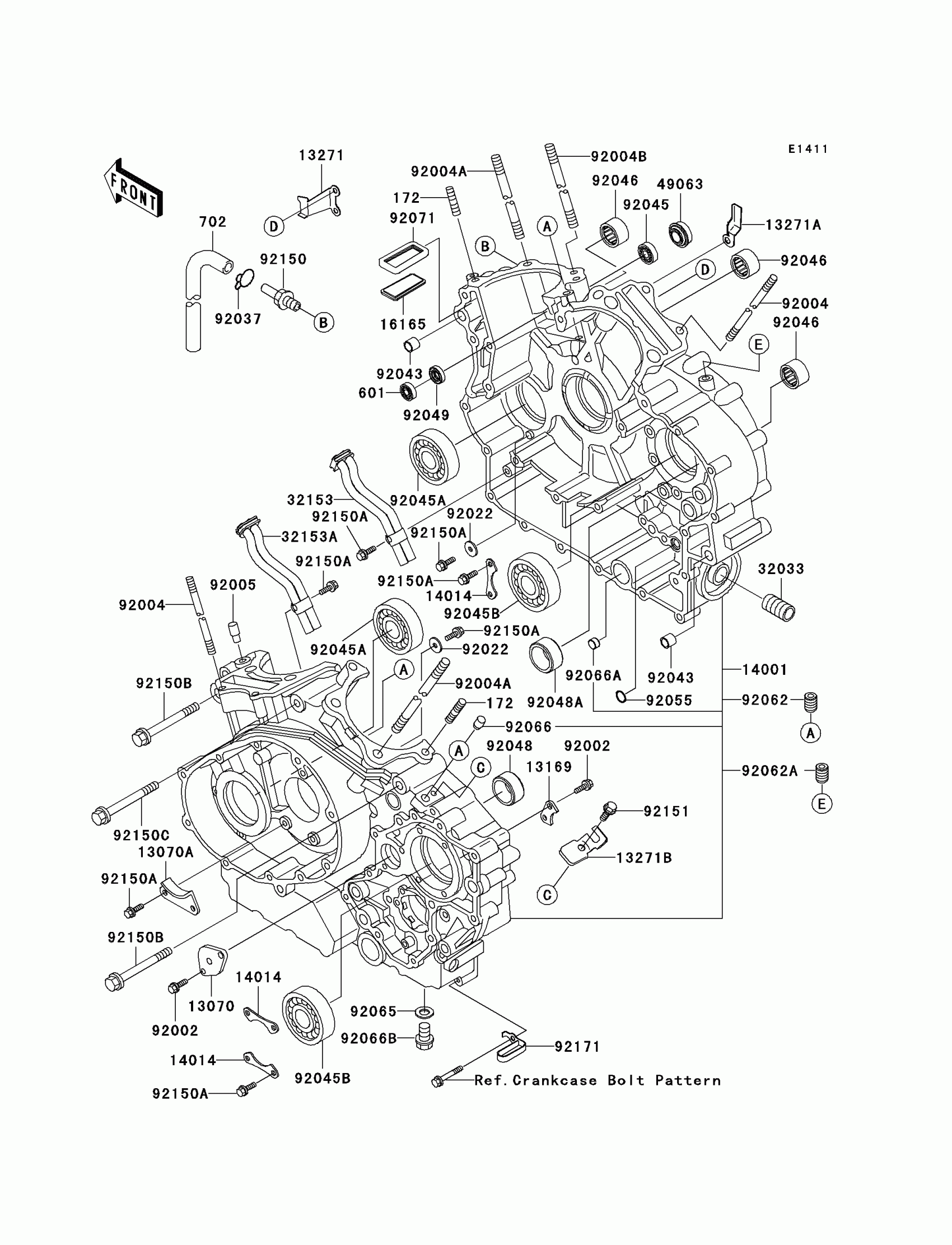

Kawasaki Vulcan 1500 Classic Fi Crankcase(VN1500-N1/N2) Diagram

#

Description
Price

13070

GUIDE,PUSH ROD

13070-1167

$25.96

13070A

GUIDE,CAM CHAIN

13070-1168

$5.54

13169

PLATE,GEAR CHANGE DRUM

13169-014

$5.23

13271

PLATE

13271-1290

Unavailable

13271A

PLATE

13271-1291

Unavailable

13271B

PLATE

13271-1448

$6.13

14001

SET-CRANKCASE

14001-5374

Unavailable

14014

PLATE-POSITION

14014-1084

$6.47

16165

SEPARATOR

16165-1058

$30.54

32033

PIPE,OIL FILTER

32033-1535

$12.96

32153

PIPE,RH CRANKCASE

32153-1262

$43.88

32153A

PIPE,LH CRANKCASE

32153-1263

$43.88

49063

SEAL-MECHANICAL

49063-1057

$47.03

92002

BOLT,6X16

92002-1439

$4.69

92004

STUD,8X231

92004-1174

$12.96

92004A

STUD,12X250

92004-1225

$30.48

92004B

STUD,12X250

92004-1240

$30.48

92005

FITTING

92005-1155

$9.13

92022

WASHER,6X19.5X2

92022-1517

$2.33

92037

CLAMP

92037-1835

$5.52

92043

PIN,11X14X12.3

92043-1266

$1.08

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

$27.31

92045A

BEARING-BALL,63/28

92045-1189

$48.00

92045B

BEARING-BALL,6306SH2

92045-1190

$40.80

92046

BEARING-NEEDLE,HK1212

92046-1163

$15.17

92048

RACE

92048-1069

$37.58

92048A

RACE

92048-1103

$24.36

92049

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92055

RING-O,13.2X2.4

92055-1373

$5.24

92062

NOZZLE,6X8,GREEN

92062-1078

$4.69

92062A

NOZZLE

92062-1089

$8.24

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066A

PLUG

92066-1110

$6.51

92066B

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92071

GROMMET,SEPARATOR

92071-1153

$8.85

92150

BOLT

92150-1161

$9.57

92150A

BOLT,6X12

92150-1868

$3.32

92150B

BOLT,10X105

92150-1993

$11.91

92150C

BOLT,10X115

92150-1994

$13.08

172

BOLT-STUD,8X25

172G0825

$3.70

601

BEARING-BALL

601A6001

$11.71

702

TUBE-RUBBER,4X330

702A04330

$11.80

92151

BOLT,6X8

92151-1416

$1.83

92171

CLAMP

92171-1273

$8.74
