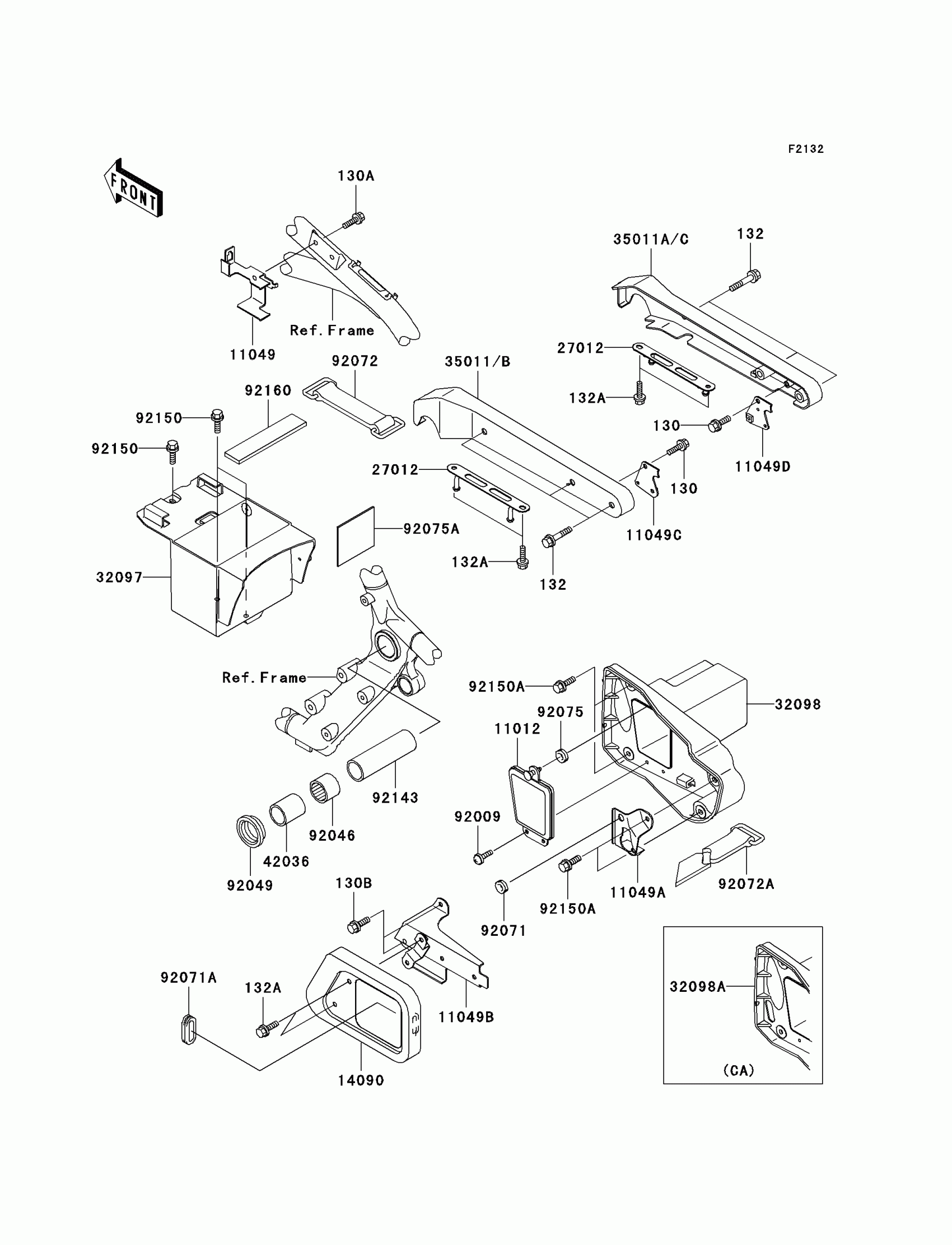

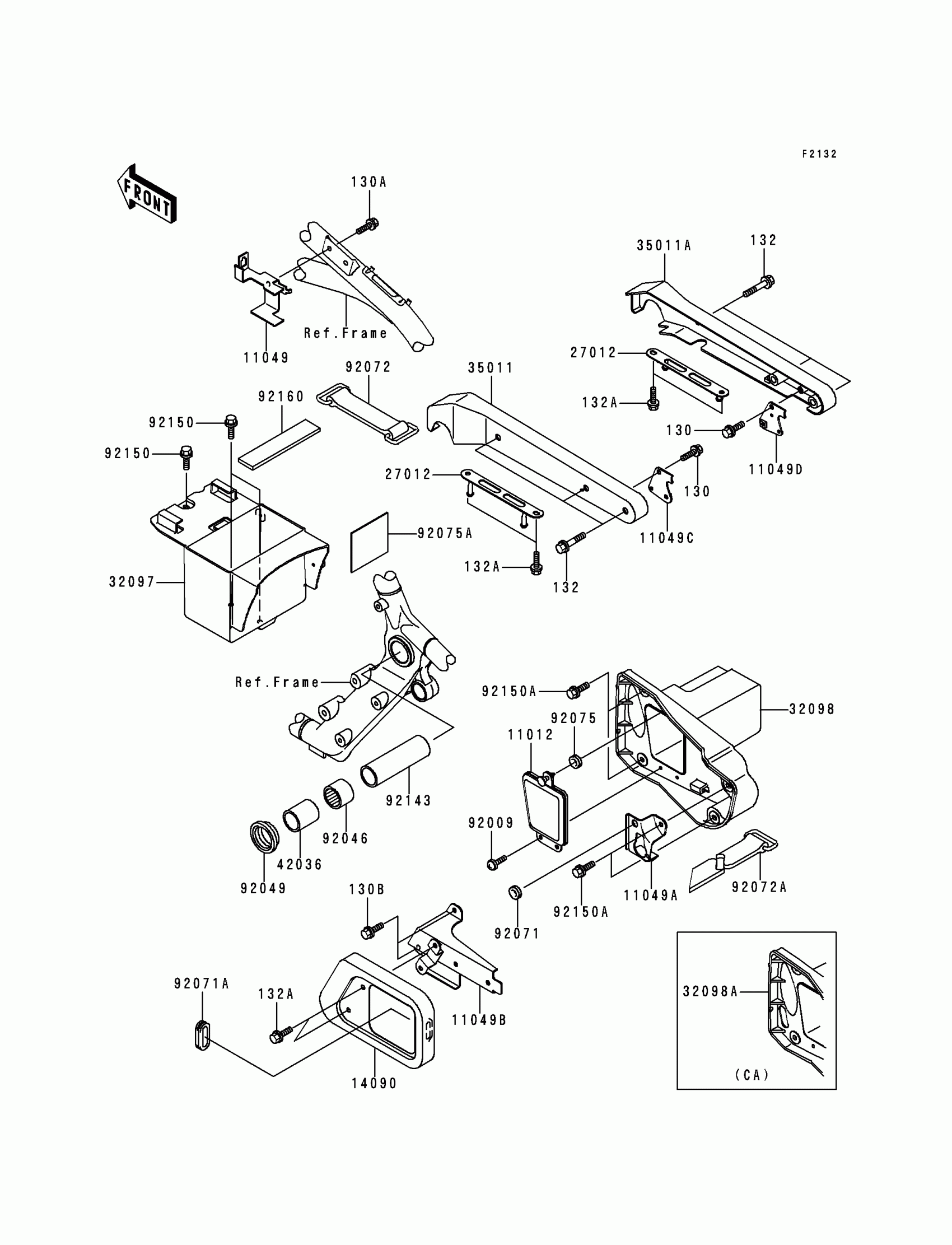

Kawasaki Vulcan 1500 Classic Battery Case Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130H0612

$1.69

130A

BOLT-FLANGED

130J0610

$2.33

130B

BOLT-FLANGED,6X12

130J0612

$2.19

132

BOLT-FLANGED-SMALL,8X45

132E0845

$7.24

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

11012

CAP,TOOL CASE

11012-1956

$30.41

11049

BRACKET,FUEL PUMP

11049-1599

$19.87

11049A

BRACKET,LOCK

11049-1600

$18.83

11049B

BRACKET,REGULATOR

11049-1607

$73.85

11049C

BRACKET,HELMET LOCK,LH

11049-1624

$6.61

11049D

BRACKET,HELMET LOCK,RH

11049-1625

$6.61

14090

COVER,REGULATOR

14090-1697

$58.13

27012

HOOK,BUNGEE CORD

27012-1524

$23.49

32097

CASE-BATTERY

32097-1161

$40.34

35011B

STAY,REAR FENDER,LH

35011-1817

$133.16

35011C

STAY,REAR FENDER,RH

35011-1818

$115.84

42036

SLEEVE,L=45

42036-1330

$29.70

92009

SCREW,TAPPING,5X14

92009-1635

$2.80

92046

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92071

GROMMET

92071-056

$4.26

92071A

GROMMET

92071-1187

$4.96

92072

BAND,BATTERY,L=105

92072-1173

$13.75

92075

DAMPER

92075-1629

$5.00

92075A

DAMPER,BATTERY

92075-1864

$8.12

92143

COLLAR,20.2X27X90

92143-1878

$34.47

92150

BOLT,6X14

92150-1133

$4.31

92150A

BOLT,6X16

92150-1198

$4.13

92160

DAMPER

92160-1779

$7.58

32098

CASE-TOOL

32098-1109

$143.57

32098A

CASE-TOOL

32098-1111

$79.22

92072A

BAND,L=470

92072-1331

$24.84
