Air Cleaner

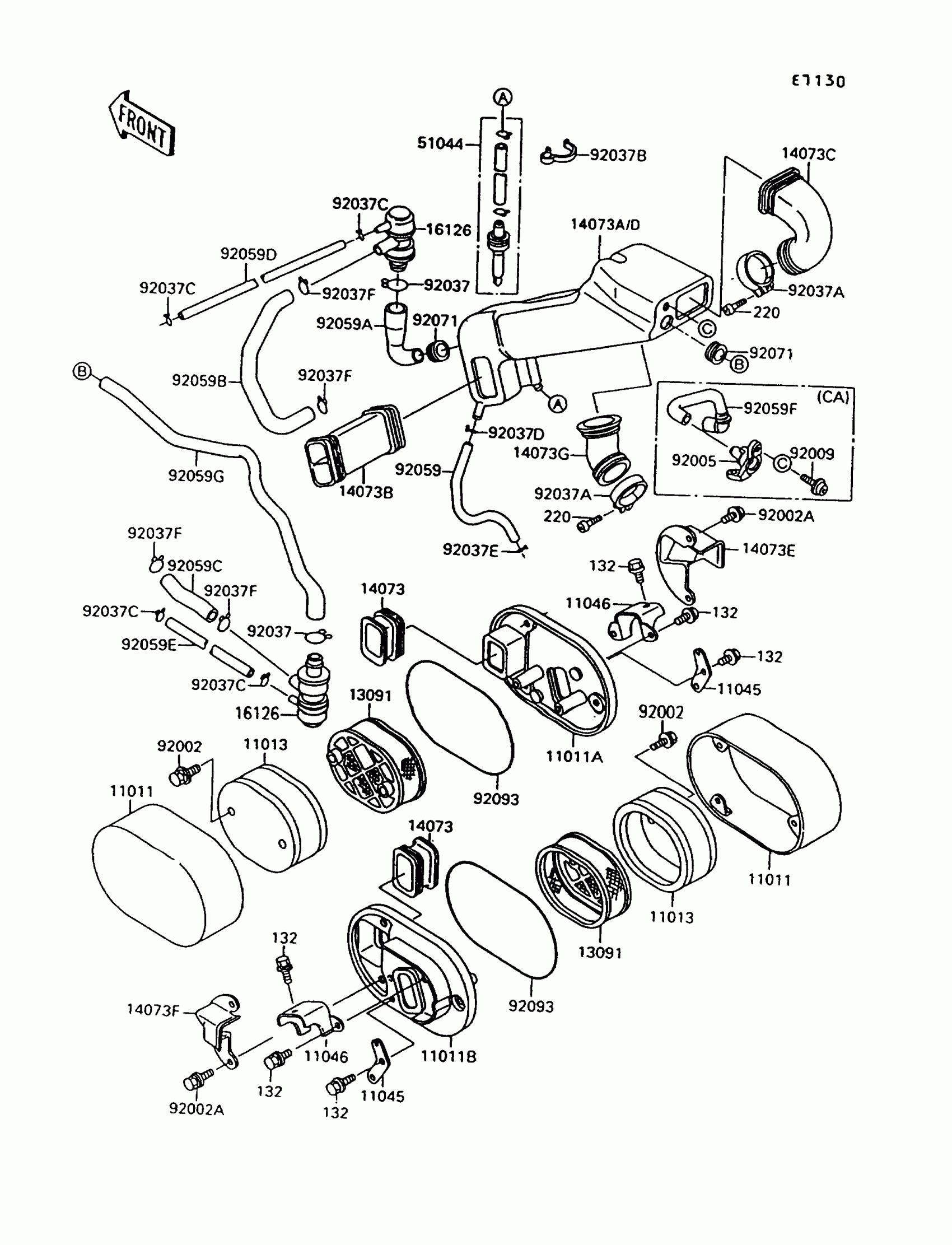

Kawasaki Vulcan 1500 Air Cleaner Diagram
#
11011
CASE-AIR FILTER,OUTSIDE
11011-1248
$187.68
11011A
CASE-AIR FILTER,LH,INSIDE
11011-1289
Unavailable
11011B
CASE-AIR FILTER,RH,INSIDE
11011-1290
Unavailable
11013
ELEMENT-AIR FILTER
11013-1249
$21.47
11045
BRACKET,AIR FILTER,LWR
11045-1434
Unavailable
11046
BRACKET,AIR FILTER,UPP
11046-1035
Unavailable
13091
HOLDER,ELEMENT
13091-1345
$68.14
14073
DUCT,INLET
14073-1296
Unavailable
14073B
DUCT,AIR FILTER
14073-1298
Unavailable
14073C
DUCT,FR,CARBURETOR
14073-1299
$77.38
14073E
DUCT,LH
14073-1316
Unavailable
14073F
DUCT,RH
14073-1317
Unavailable
14073G
DUCT,RR,CARBURETOR
14073-1326
Unavailable
16126
VALVE,AIR SWITCH
16126-1188
Unavailable
51044
TUBE-ASSY
51044-1089
Unavailable
92002
BOLT,6X25
92002-1137
$4.39
92002A
BOLT,6X16
92002-1242
$4.73
92037
CLAMP,TUBE
92037-1076
$7.22
92037A
CLAMP,BOOT FITTING
92037-1112
$16.72
92037B
CLAMP,HOSE
92037-1552
$9.97
92037C
CLAMP
92037-1712
$5.00
92037D
CLAMP,14MM
92037-1862
$6.63
92037E
CLAMP,BREATHER TUBE
92037-192
$6.52
92037F
CLAMP,TUBE
92037-213
$4.31
92059
TUBE,BREATHER
92059-1777
Unavailable
92059A
TUBE,ASV-SURGE TANK
92059-1779
Unavailable
92059B
TUBE,VALVE-ASV
92059-1780
Unavailable
92059C
TUBE,ASV-CAP(R)
92059-1783
Unavailable
92059D
TUBE,4X9X420
92059-1820
Unavailable
92059E
TUBE,4X9X650
92059-1846
$10.19
132
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
220
SCREW-PAN-CROS
220C0430
$3.57
92059G
TUBE,AIR VALVE-AIR FILTER
92059-1873
Unavailable
92071
GROMMET,AIR FILTER
92071-1028
$7.27
92093
SEAL,AIR FILTER
92093-1236
$12.67
14073A
DUCT,SURGE TANK
14073-1297
Unavailable
14073D
DUCT,SURGE TANK
14073-1306
Unavailable
92005
FITTING
92005-1163
Unavailable
92009
SCREW,6X14
92009-1272
Unavailable
92059F
TUBE,AIR FILTER
92059-1859
Unavailable
