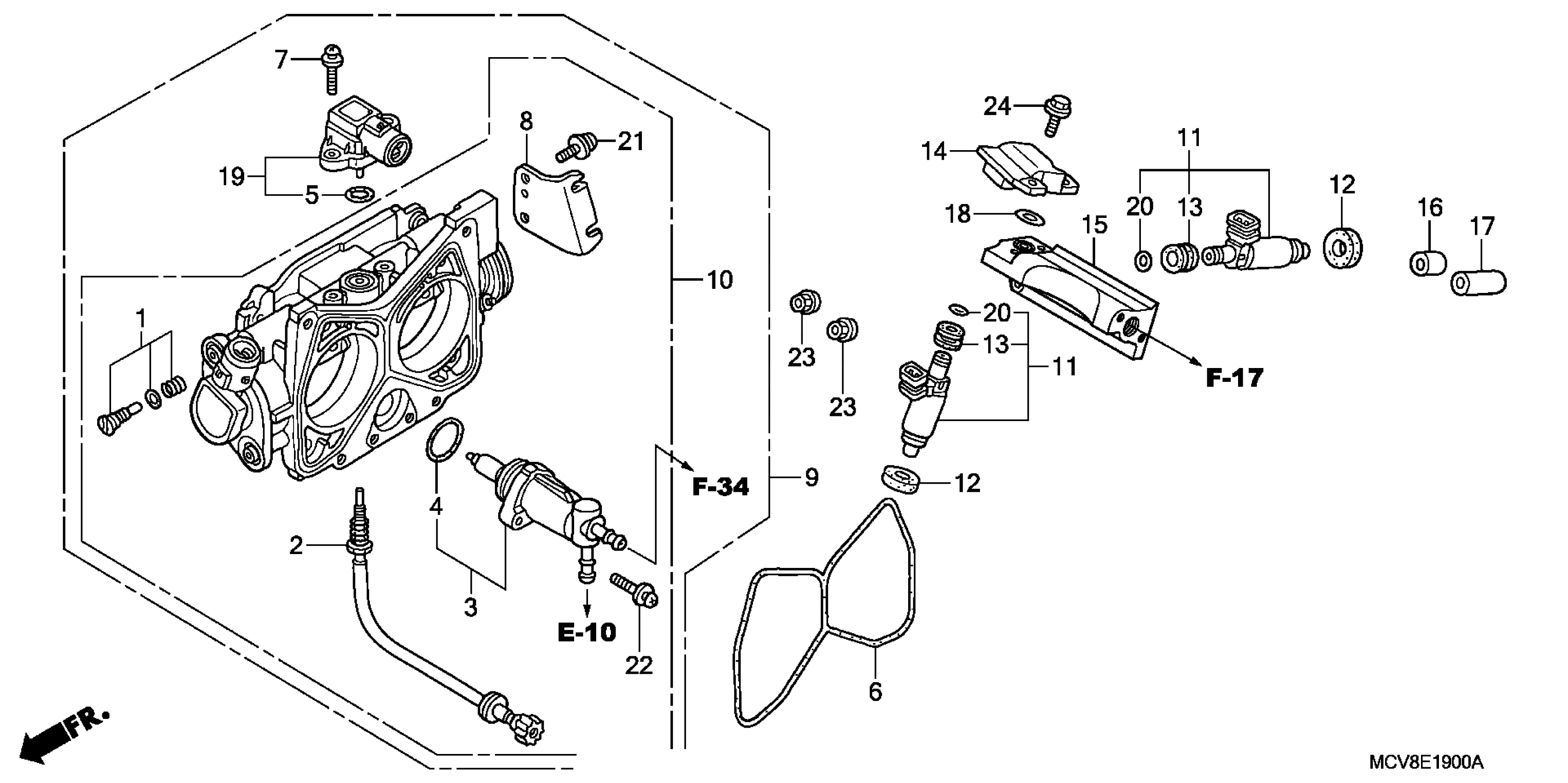

Honda VTX1800T11A (08) MOTORCYCLE, USA, VIN# 1HFSC49T-8A600001 THROTTLE BODY Diagram

#

Description
Price

1

SCREW SET

16016-MCA-013

$17.31

2

SCREW SET, STOP

16029-MCH-003

$22.95

3

WAX ASSY.

16046-MCH-003

$73.33

4

O-RING

16075-MCH-003

$13.11

5

O-RING (9.8X1.9)

16075-P07-000

$4.42

6

O-RING

16076-MCH-003

$6.19

7

SCREW-WASHER (4X16)

16080-P07-000

$4.64

8

STAY, WIRE

16119-MCH-003

$12.00

9

BODY ASSY., THROTTLE (GQ42A A)

16400-MCH-003

$949.60

10

BODY SET

16410-MCH-003

$911.09

11

INJECTOR ASSY., FUEL

16450-MCH-004

$188.10

12

SEAL RING, INJECTOR

16472-P7A-005

$3.81

13

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

14

PIPE, FR. FUEL

16610-MCH-A10

$53.90

15

PIPE, RR. FEED

16621-MCH-A10

$62.92

16

COLLAR, FR. FUEL PIPE

16638-MCH-000

$2.57

17

COLLAR, RR. FUEL PIPE

16639-MCH-000

$4.39

18

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.47

19

SENSOR SET, MAP

37011-MCA-003

$167.09

20

O-RING

91301-P7A-004

$3.35

21

SCREW-WASHER (5X12)

93892-05012-00

$1.49

21

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

22

SCREW-WASHER (5X22)

93892-05022-00

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
