Description

Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$58.81

2

AXLE, RR. WHEEL

42301-MCH-010

$64.82

4

COLLAR, RR. WHEEL

42312-MCH-A00

Unavailable

5

FLANGE B, FINAL DRIVEN

42614-MCH-000

$251.03

6

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$14.43

7

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$292.02

8

WHEEL SUB-ASSY., RR.

42650-MCV-R10

$900.77

9

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

9

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

9

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

10

TIRE, RR. (180/70R16) (M/C 77H) (DUNLOP)

42711-MCH-024

Unavailable

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

12

DISK, RR. BRAKE

43251-MCH-003

$169.83

13

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

$20.36

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

16

NUT, FLANGE (18MM)

90306-MCH-003

$13.13

17

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

18

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

19

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

20

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

21

DUST SEAL (30X52X7)

91253-442-003

$13.96

22

O-RING (61X2)

91302-MA6-003

$5.17

23

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

24

BOLT 2, STUD (12X32)

92900-12032-0E

$2.92

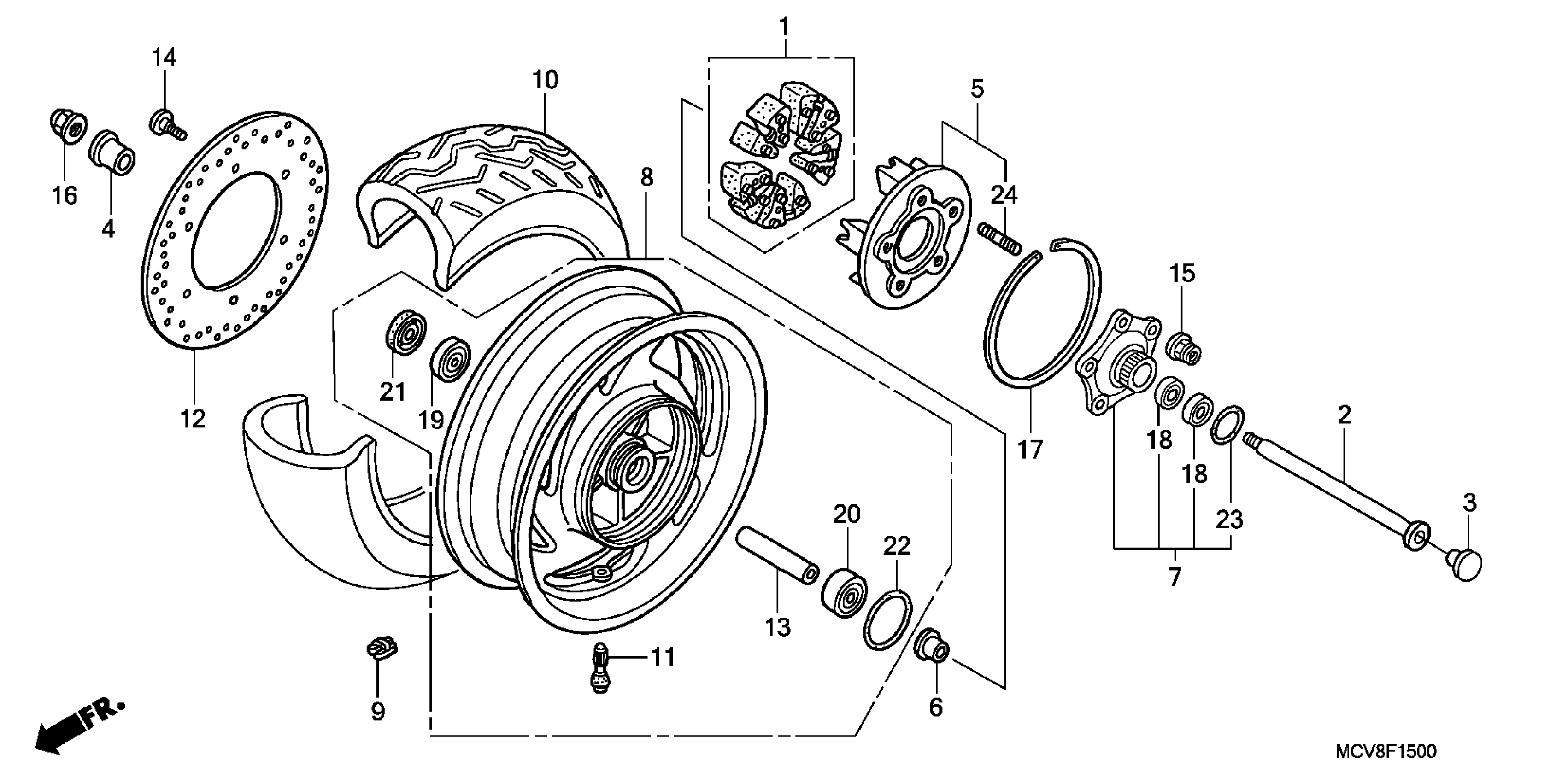

Honda VTX1800T11A (08) MOTORCYCLE, USA, VIN# 1HFSC49T-8A600001 REAR WHEEL (1) Diagram
