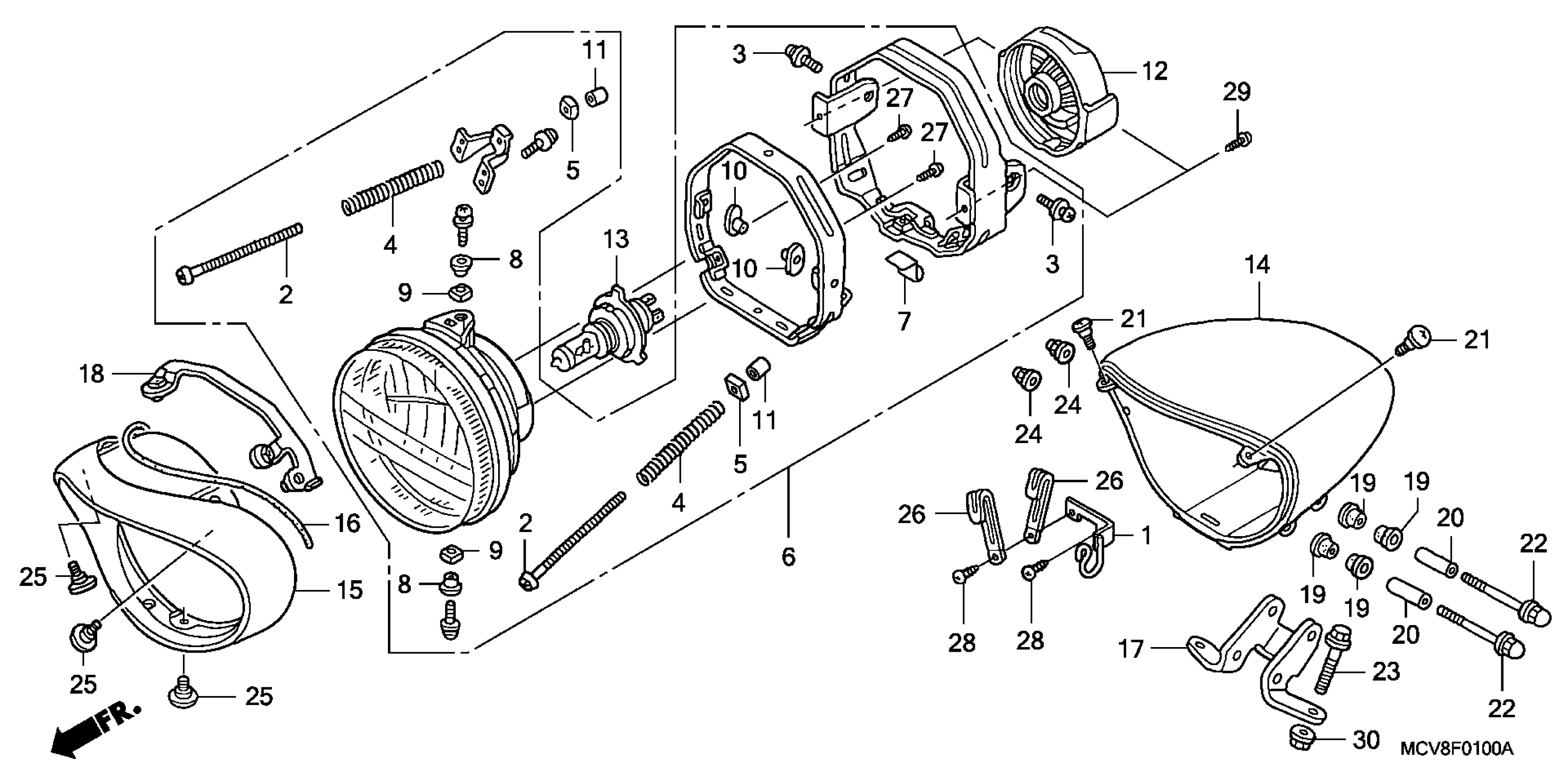

Honda VTX1800T11A (08) MOTORCYCLE, USA, VIN# 1HFSC49T-8A600001 HEADLIGHT Diagram

CLAMP, HARNESS

32111-MCV-N10

$2.23

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.74

SCREW-WASHER

33104-MAH-671

$4.01

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.80

NUT, BEAM ADJUSTING

33118-438-841

$2.23

HEADLIGHT UNIT

33120-MEA-671

$335.62

TAPE, PROTECTOR

33126-MEA-650

$3.10

SPACER

33127-MAA-A31

$2.40

NUT, UNIT HOLDER

33128-GE8-671

$4.21

NUT, SPECIAL

33128-MAH-671

$3.79

COVER, SCREW

33136-426-830

$1.89

COVER, RUBBER

33180-MR7-003

$14.24

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$37.18

CASE, HEADLIGHT

61301-MCH-670

$81.09

RIM, HEADLIGHT

61302-MCH-670

$50.38

RUBBER, SPONGE

61303-MEA-670

$3.12

STAY, HEADLIGHT This part replaces 61311-MCH-670.

61311-MCH-B70

$192.46

STAY A, HEADLIGHT

61312-MEA-670

$42.97

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.97

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.97

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.90

BOLT, CAP (6MM)

90132-MCH-000

$2.93

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

NUT, CAP (6MM)

90201-425-700

$4.24

SCREW, SPECIAL (5X9.5)

90380-GE2-760

$2.57

CLIP

91411-679-000

$16.20

SCREW, TAPPING (4X12)

93901-34320

$1.49

SCREW, TAPPING (4X12)

93901-44310

Unavailable

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49
