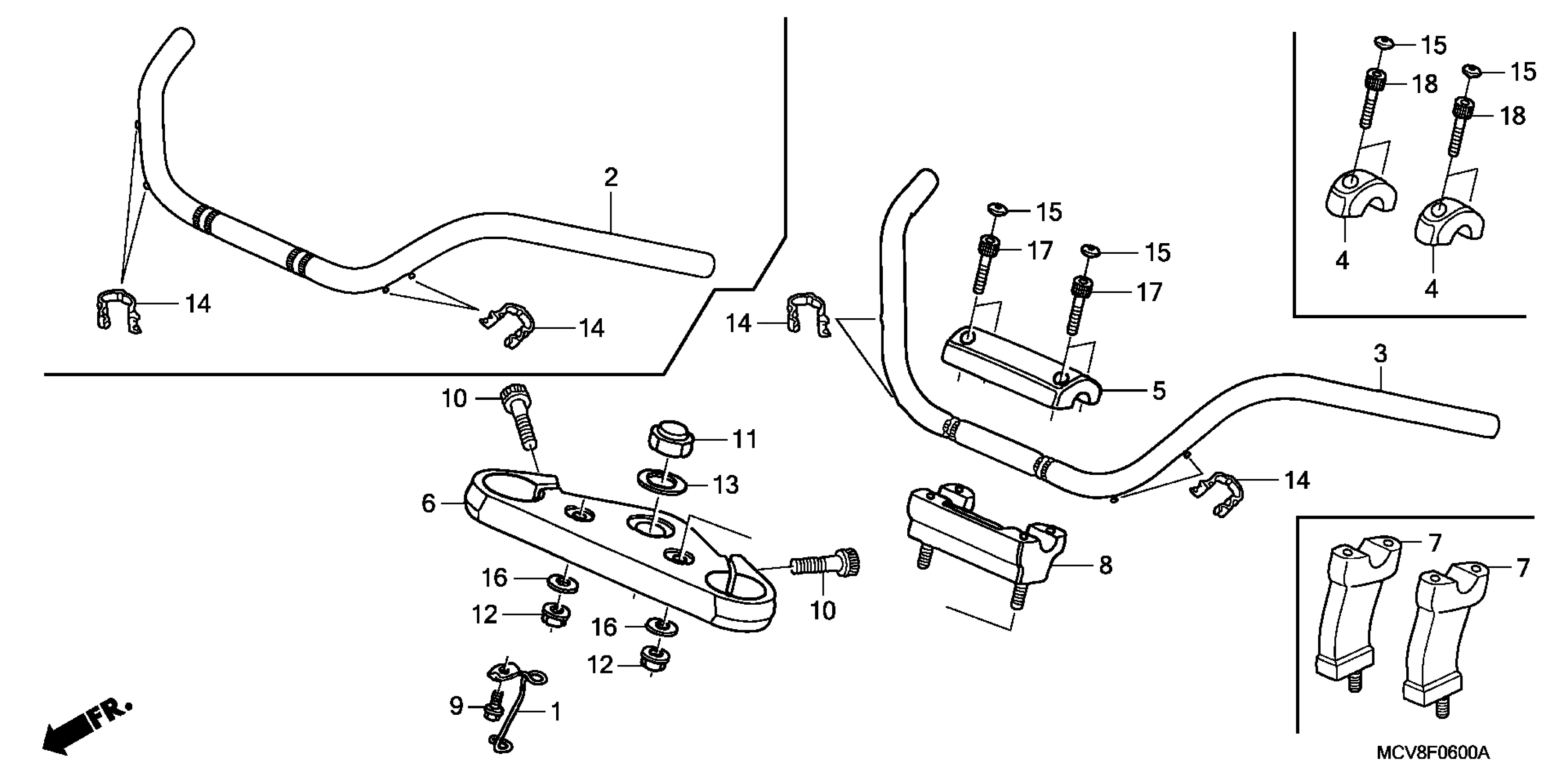

Honda VTX1800T11A (08) MOTORCYCLE, USA, VIN# 1HFSC49T-8A600001 HANDLEBAR + TOP BRIDGE Diagram

GUIDE, FR. BRAKE HOSE

45151-MCH-010

Unavailable

HANDLEBAR This part replaces 53100-MCV-000.

53100-MCV-F10

$459.61

HOLDER, HANDLE (UPPER)

53131-MCV-000

$124.61

BRIDGE, FORK TOP

53230-MCV-000

Unavailable

HOLDER, HANDLE (LOWER)

53231-MCV-000

Unavailable

BOLT, SPECIAL FLANGE (8X16)

90101-MCV-R10

Unavailable

BOLT, SOCKET (10X32)

90120-MCH-A00

$2.41

NUT, STEERING STEM

90304-415-000

$19.83

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER, STEERING STEM

90503-283-000

$4.37

CLIP, CABLE (17MM)

90690-GHB-701

$2.92

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

WASHER, PLAIN (12MM)

94101-12000

$1.49

BOLT, SOCKET (8X35)

96700-08035-10

$2.04
