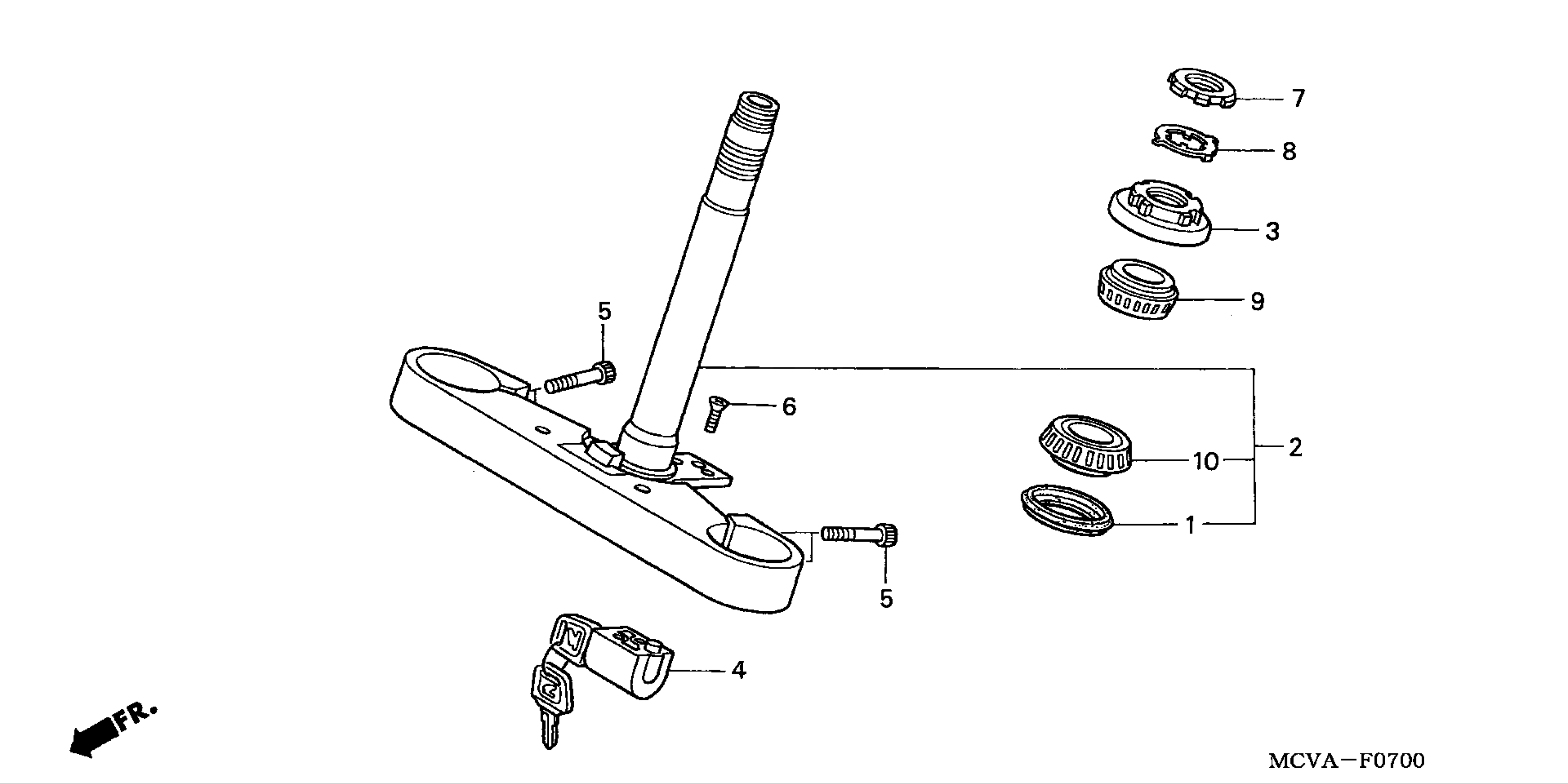

Honda VTX1800S2A (05) MOTORCYCLE, USA, VIN# 1HFSC49L-5A300001 STEERING STEM Diagram

#

Description

Price

1

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

2

STEM SUB-ASSY., STEERING

53219-MCV-R20

$437.68

3

THREAD, STEERING HEAD TOP

53220-422-000

$29.39

4

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$24.28

5

BOLT, SOCKET (8X32)

90122-MCH-A00

$1.99

6

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

7

THREAD B, STEERING HEAD TOP

90302-425-830

$19.51

8

WASHER, LOCK

90506-425-830

$6.56

9

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$27.84

9

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$27.84

10

BEARING, HEAD PIPE (LOWER)

91016-371-000

$49.50
