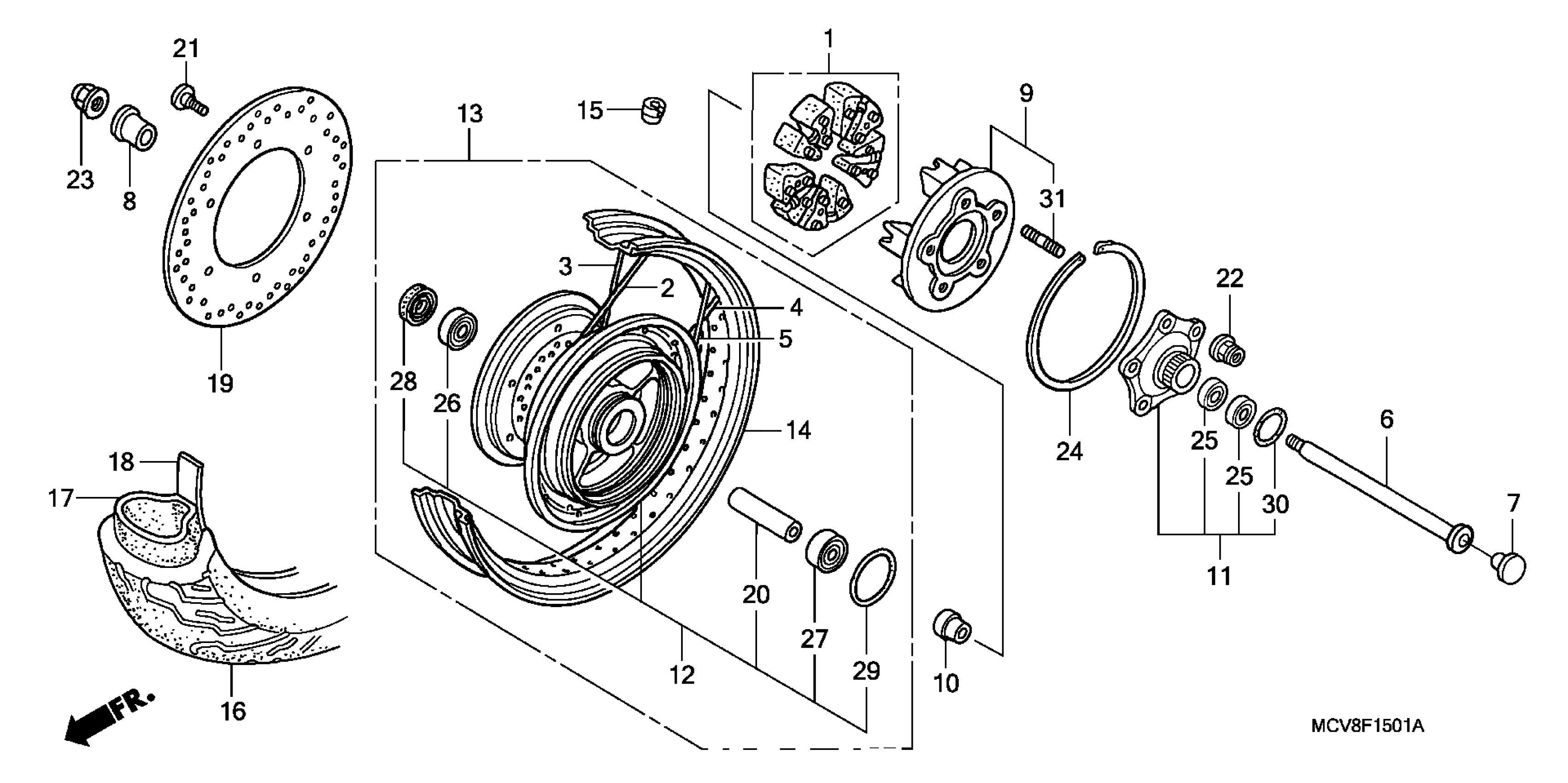

Honda VTX1800S22A (06) MOTORCYCLE, USA, VIN# 1HFSC49M-6A400001 TO 1HFSC49M-6A499999 REAR WHEEL (2) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$52.81

2

SPOKE SET A, RR. (R. INSIDE)

06420-MCV-A10

Unavailable

3

SPOKE SET B, RR. (R. OUTSIDE)

06421-MCV-A10

Unavailable

4

SPOKE SET C, RR. (L. INSIDE)

06422-MCV-A10

$3.86

5

SPOKE SET D, RR. (L. OUTSIDE)

06423-MCV-A10

Unavailable

6

AXLE, RR. WHEEL

42301-MCH-010

$59.03

8

COLLAR, RR. WHEEL

42312-MCH-A00

Unavailable

9

FLANGE B, FINAL DRIVEN

42614-MCH-000

$228.57

10

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$12.96

11

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$262.25

12

HUB SUB-ASSY., RR.

42635-MCV-A10

$439.00

13

WHEEL SUB-ASSY., RR.

42650-MCV-A11

Unavailable

14

RIM, RR. WHEEL

42701-MCV-A12

Unavailable

15

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

15

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.52

16

TIRE, RR. (170/80-15) (77H) (DUNLOP) This part replaces 42711-MCV-A11.

42711-MEM-671

Unavailable

17

TUBE, TIRE (DUNLOP)

42712-MR1-672

$37.21

18

FLAP, TIRE (45-15) (DUNLOP) This part replaces 42713-MCV-A11.

42713-MR1-672

$6.82

19

DISK, RR. BRAKE

43251-MCV-A11

Unavailable

20

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

Unavailable

21

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

22

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

23

NUT, FLANGE (18MM)

90306-MCH-003

$11.79

24

CIRCLIP (INNER) (188)

90651-MCH-000

$16.13

25

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.59

26

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$28.86

27

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$67.27

28

DUST SEAL (30X52X7)

91253-442-003

$12.53

29

O-RING (61X2)

91302-MA6-003

$4.81

30

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.51

31

BOLT 2, STUD (12X32)

92900-12032-0E

$2.75
