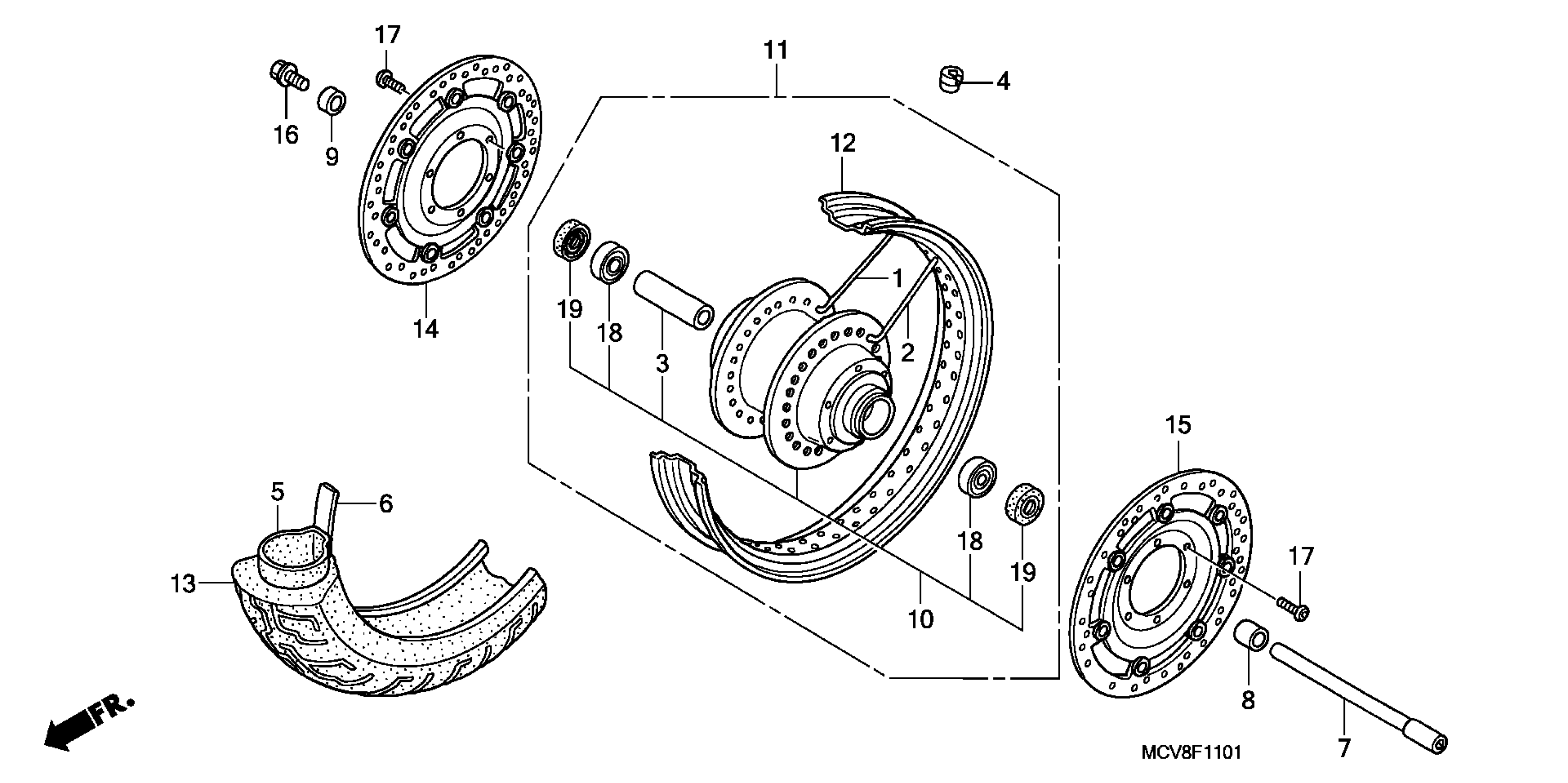

Honda VTX1800S22A (06) MOTORCYCLE, USA, VIN# 1HFSC49M-6A400001 TO 1HFSC49M-6A499999 FRONT WHEEL (2) Diagram

SPOKE SET A, FR. (INSIDE)

06440-MCV-A10

Unavailable

SPOKE SET B, FR. (OUTSIDE)

06441-MCV-A10

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-MW0-010

$30.97

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.52

TUBE, TIRE (DUNLOP)

42712-MBH-004

Unavailable

FLAP, TIRE (DUNLOP)

42713-MAV-004

Unavailable

AXLE, FR. WHEEL

44301-MCH-A00

$69.25

COLLAR, L. FR. WHEEL SIDE

44311-MCH-A00

$11.69

COLLAR, R. FR. WHEEL SIDE

44312-MCH-A00

Unavailable

HUB SUB-ASSY., FR.

44635-MCV-A10

$286.62

WHEEL SUB-ASSY., FR.

44650-MCV-A11

Unavailable

RIM, FR. WHEEL

44701-MCV-A12

Unavailable

TIRE, FR. (150/80-17) (M/C 72H) (DUNLOP)

44711-MCV-A11

Unavailable

DISK, R. FR. BRAKE

45120-MCH-003

$158.68

DISK, L. FR. BRAKE

45220-MCH-003

$158.68

BOLT, FR. AXLE

90105-MBT-610

$5.38

BOLT, DISK (6X17)

90106-MBB-000

$3.39

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$28.86

DUST SEAL (30X52X7)

91253-442-003

$12.53
