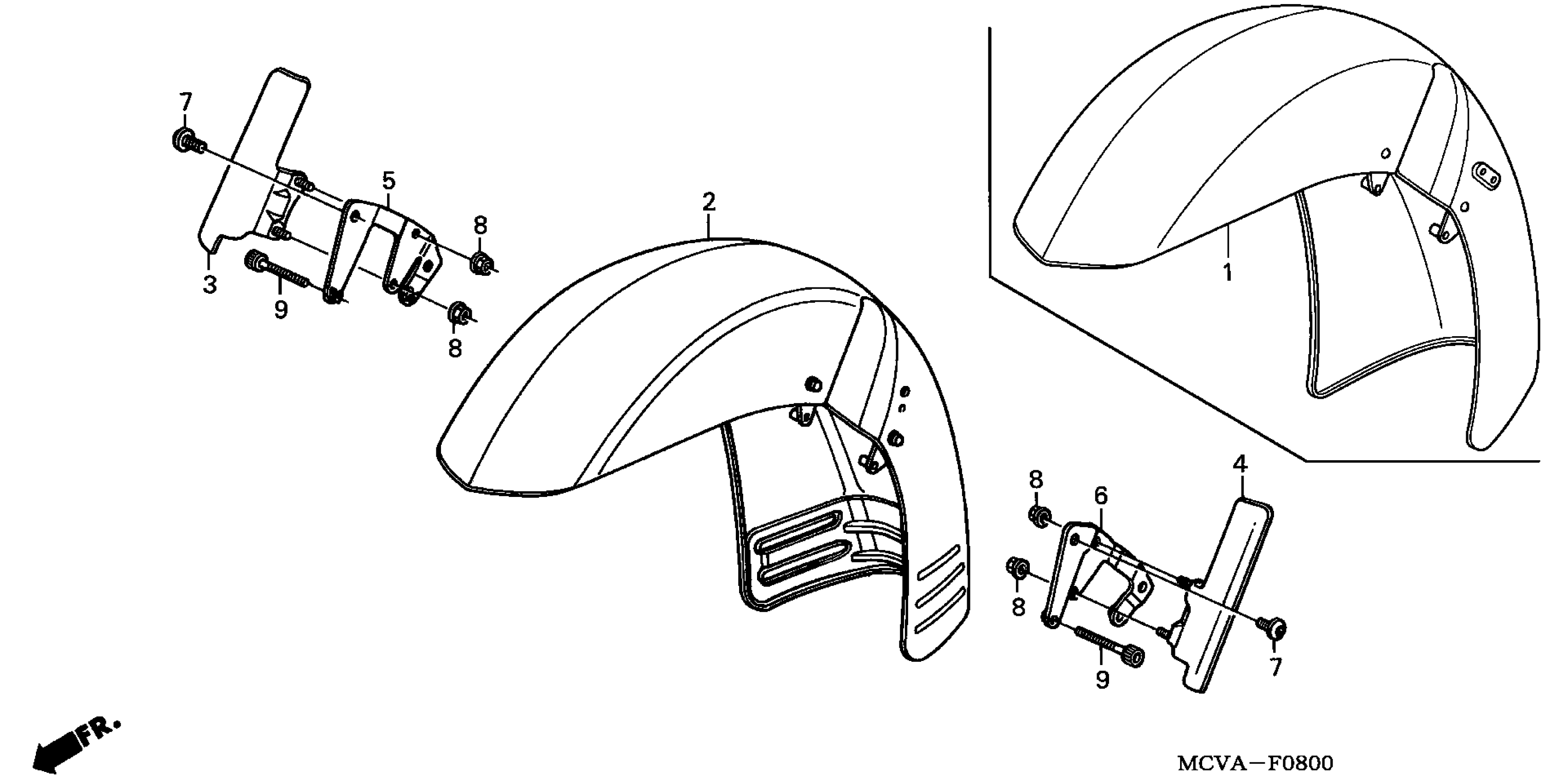

Honda VTX1800S1A (05) MOTORCYCLE, USA, VIN# 1HFSC49H-5A300001 FRONT FENDER Diagram

#

Description
Price

2

FENDER SET, FR. (TYPE1) This part replaces 61110-MCV-600ZA.

61110-MCV-F00ZA

$1,501.35

2

FENDER SET, FR. (TYPE2) (WL)

61110-MCV-600ZB

$912.36

2

FENDER SET, FR. (TYPE3) (WL)

61110-MCV-600ZC

$912.36

3

COVER, R. FR. FENDER

61101-MCV-R10

Unavailable

4

COVER, L. FR. FENDER

61102-MCV-R10

Unavailable

5

STAY, R. FR. FENDER

61103-MCV-000

$88.64

6

STAY, L. FR. FENDER

61104-MCV-000

$88.64

7

SCREW, PAN (6X12)

90108-MCH-000

$1.57

8

NUT, FLANGE (6MM)

94050-06000

$0.59

9

BOLT, SOCKET (6X25)

96600-06025-00

$1.71
