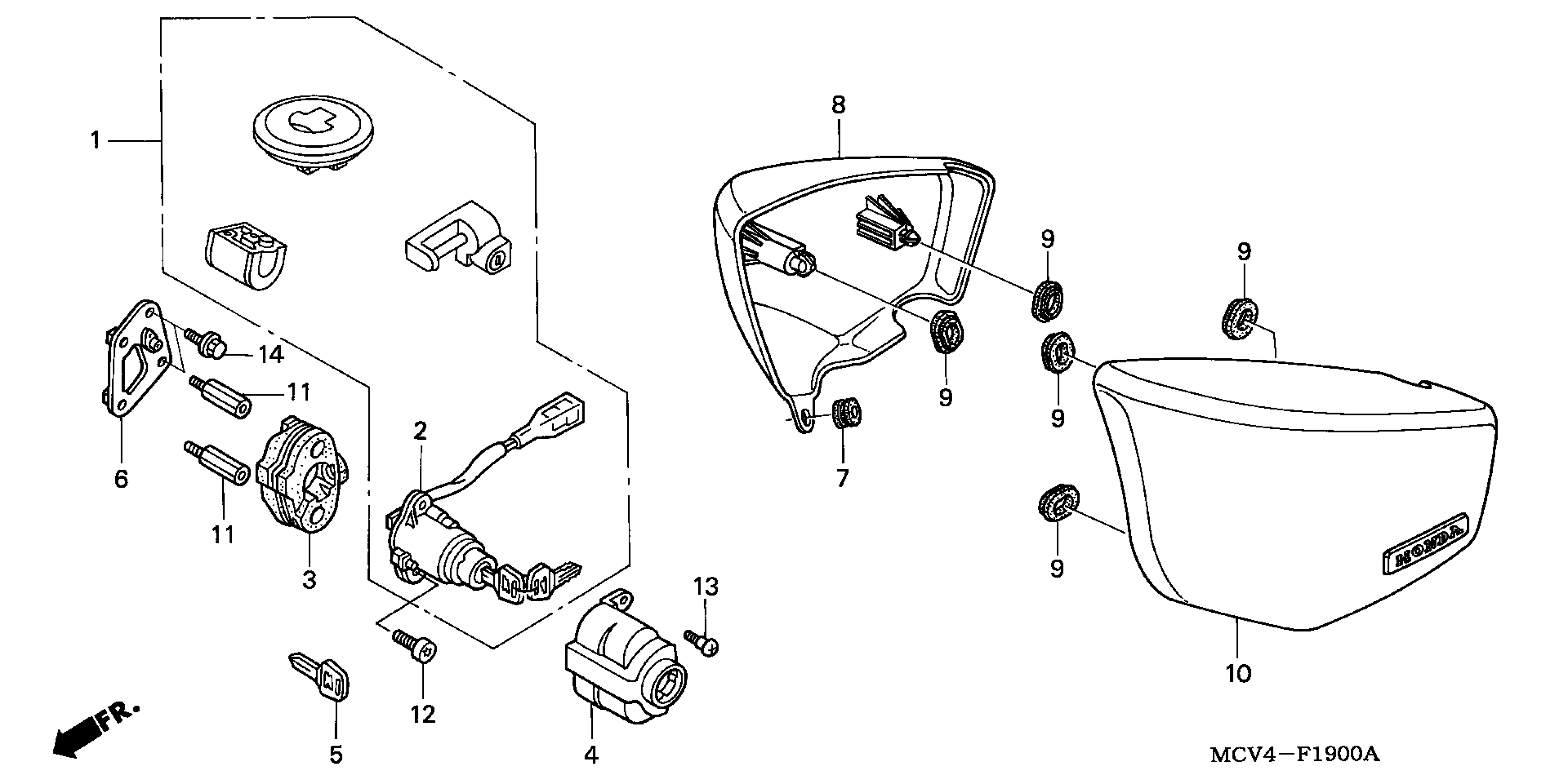

Honda VTX1800RA (03) MOTORCYCLE, USA, VIN# 1HFSC490-3A100001 SIDE COVER Diagram

#

Description
Price

1

LOCK SET

35010-MCH-010

Unavailable

2

SWITCH ASSY., COMBINATION

35100-MCH-000

Unavailable

3

BASE, COMBINATION SWITCH

35102-MR1-000

$13.64

4

COVER, COMBINATION SWITCH

35110-MR1-000

$29.05

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MCH-810

$30.91

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MCH-810

$32.79

6

STAY, COMBINATION SWITCH

50126-MCH-000

Unavailable

7

GROMMET, SIDE COVER

50142-437-970

$2.59

8

COVER SET, R. SIDE *NH1* (WL) (BLACK)

83510-MCV-000ZB

$309.67

8

COVER SET, R. SIDE *P44P* (WL) (PEARL CHROMIUM PURPLE)

83510-MCV-000ZC

$289.00

8

COVER SET, R. SIDE *R274M* (WL) (DURANGO RED METALLIC)

83510-MCV-000ZE

Unavailable

8

COVER SET, R. SIDE *NH469M* (WL) (STREAM SILVER METALLIC)

83510-MCV-000ZF

$297.66

8

COVER SET, R. SIDE *YR236M* (WL) (JUPITER ORANGE METALLIC)

83510-MCV-000ZG

Unavailable

9

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

10

COVER SET, L. SIDE *NH1* (WL) (BLACK)

83610-MCV-000ZB

$309.75

10

COVER SET, L. SIDE *P44P* (WL) (PEARL CHROMIUM PURPLE)

83610-MCV-000ZC

$297.66

10

COVER SET, L. SIDE *R274M* (WL) (DURANGO RED METALLIC)

83610-MCV-000ZE

$323.72

10

COVER SET, L. SIDE *NH469M* (WL) (STREAM SILVER METALLIC)

83610-MCV-000ZF

Unavailable

10

COVER SET, L. SIDE *YR236M* (WL) (JUPITER ORANGE METALLIC)

83610-MCV-000ZG

$309.72

11

BOLT, SPECIAL (6MM)

90005-MCH-000

Unavailable

12

BOLT, TORX (6X14)

90107-KCR-000

$3.54

13

SCREW, RR. COVER

90114-GB6-920

$1.50

14

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
