Description

Price

1

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.53

2

SCREW-WASHER

33104-MAH-671

$3.83

3

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.87

4

NUT, BEAM ADJUSTING

33118-438-841

$2.06

5

HEADLIGHT UNIT

33120-MCH-671

Unavailable

6

SPACER

33127-MAA-A31

$2.14

7

NUT, UNIT HOLDER

33128-GE8-671

$3.78

8

NUT, SPECIAL

33128-MAH-671

$3.50

9

COVER, SCREW

33136-426-830

$1.74

10

COVER, RUBBER

33180-MR7-003

Unavailable

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$34.13

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$34.13

12

CASE, HEADLIGHT

61301-MCH-670

$72.50

13

RIM, HEADLIGHT

61302-MCH-670

$45.05

14

STAY, HEADLIGHT This part replaces 61311-MCH-670.

61311-MCH-B70

$172.65

15

STAY A, HEADLIGHT

61312-MEA-670

$38.29

16

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.83

17

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.83

18

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.73

19

BOLT, CAP (6MM)

90132-MCH-000

$2.71

20

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

21

NUT, CAP (6MM)

90201-425-700

$4.04

22

SCREW, SPECIAL (5X9.5)

90380-GE2-760

$2.38

23

CLIP

91411-679-000

$14.97

24

SCREW, TAPPING (4X10)

93903-44210

$1.00

25

NUT, FLANGE (8MM)

94050-08000

$0.87

26

SCREW, TAPPING (4X12)

93901-34320

$0.91

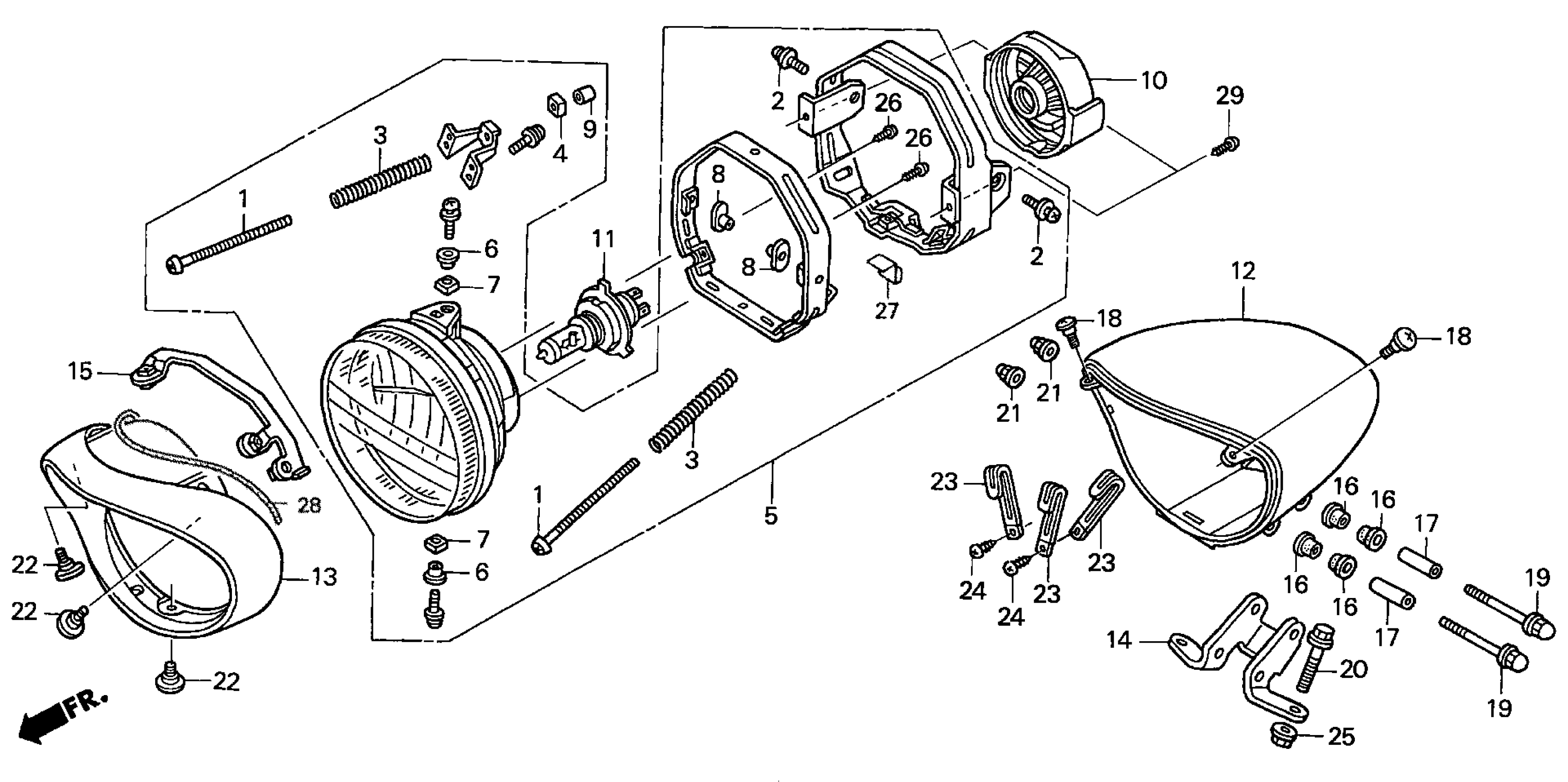

Honda VTX1800RA (02) MOTORCYCLE, USA, VIN# 1HFSC490-2A000001 HEADLIGHT Diagram
