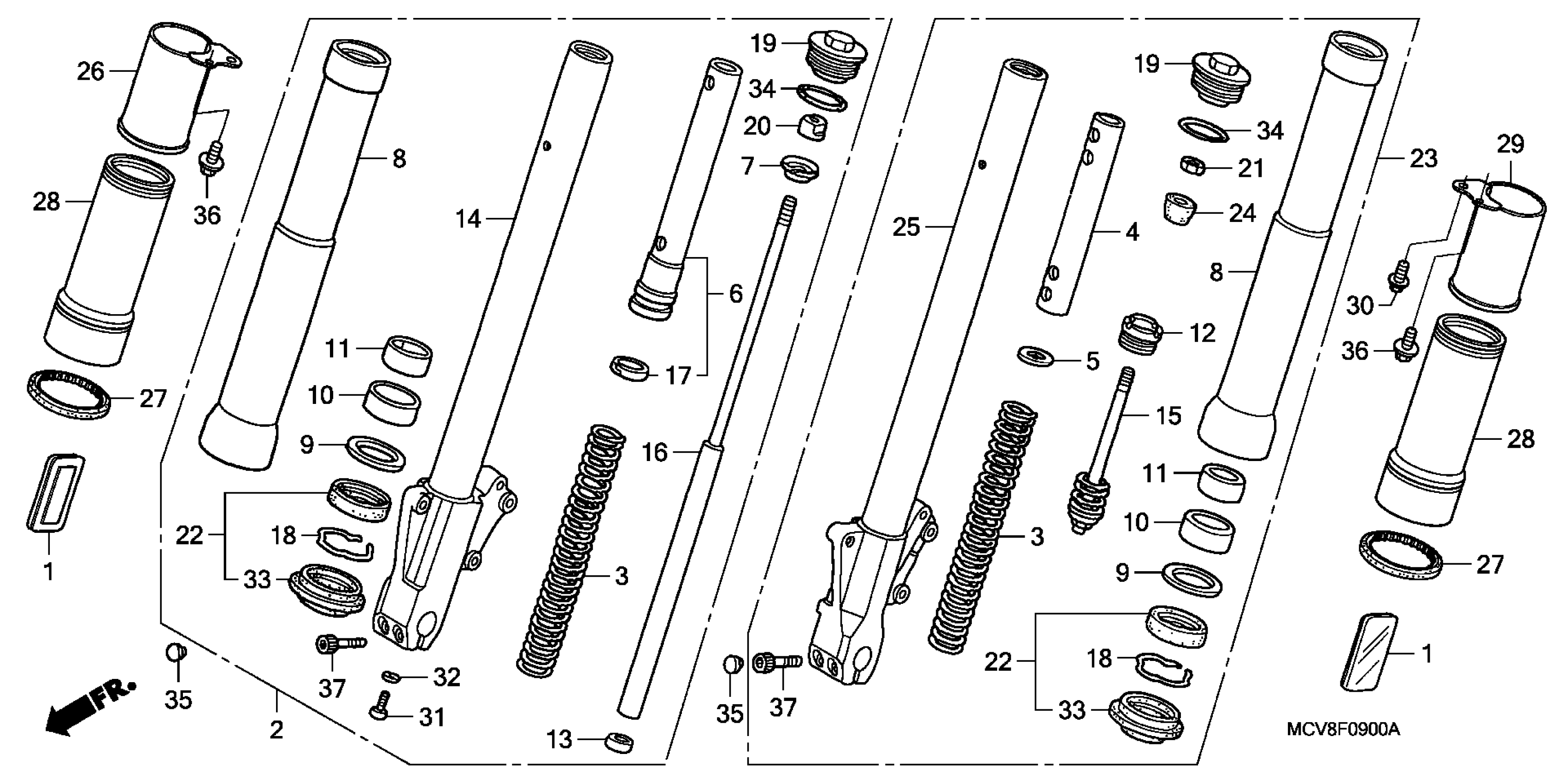

Honda VTX1800R22A (07) VTX, USA, VIN# 1HFSC494-7A500001 TO 1HFSC494-7A599999 FRONT FORK Diagram

REFLECTOR, FR. This part replaces 33740-MCV-N10.

33740-MJN-J11

$26.15

FORK SUB, R. FR. This part replaces 51480-MCV-R21.

51480-MCV-R22

$1,239.56

SPRING, FR. FORK

51401-MCV-003

Unavailable

COLLAR, SPRING

51402-MCV-003

Unavailable

PLATE, SPRING JOINT

51403-MZ0-003

Unavailable

COLLAR, SPRING

51404-MCH-003

Unavailable

STOPPER, SPRING SEAT (SHOWA)

51408-KAE-871

$15.36

TUBE (OUTER)

51410-MCV-R21

$479.70

RING, BACK-UP

51412-KZ3-003

$9.43

BUSH, GUIDE

51414-MCH-003

$22.97

BUSH, SLIDER

51415-MCH-003

$11.87

BOLT, FORK PIPE (INNER)

51415-MZ0-003

Unavailable

PLATE, CENTERING

51421-MR8-901

Unavailable

PIPE, R. SLIDE

51425-MCV-R21

Unavailable

ROD (SHOWA)

51426-MBY-671

Unavailable

DAMPER, FR. This part replaces 51430-MCV-R21.

51430-MCV-R22

Unavailable

RING, PISTON

51435-KZ3-701

Unavailable

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

BOLT, FR. FORK

51450-MCH-701

Unavailable

NUT, LOCK (SHOWA)

51451-KAE-871

Unavailable

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

SEAL SET, FR. FORK

51490-MCA-003

$37.19

FORK SUB-ASSY., L. FR. (SHOWA)

51580-MCV-R21

$1,221.25

RUBBER, STOPPER

51517-MZ0-003

$15.26

PIPE, L. SLIDE

51525-MCV-R21

Unavailable

COVER, R. FR. FORK TOP

51610-MCV-R20

Unavailable

RUBBER, COVER MOUNTING (LOWER)

51619-MCV-R20

Unavailable

COVER, FR. FORK (LOWER)

51620-MCV-R20

Unavailable

COVER, L. FR. FORK TOP

51660-MCV-R20

Unavailable

BOLT, SPECIAL FLANGE (8X16)

90101-MCV-R10

Unavailable

BOLT, SOCKET (8MM)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

DUST SEAL

91254-MCA-003

$8.52

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

BOLT, FLANGE (6X16)

96001-06016-02

$1.49

BOLT, SOCKET (8X30)

96600-08030-00

$2.08
