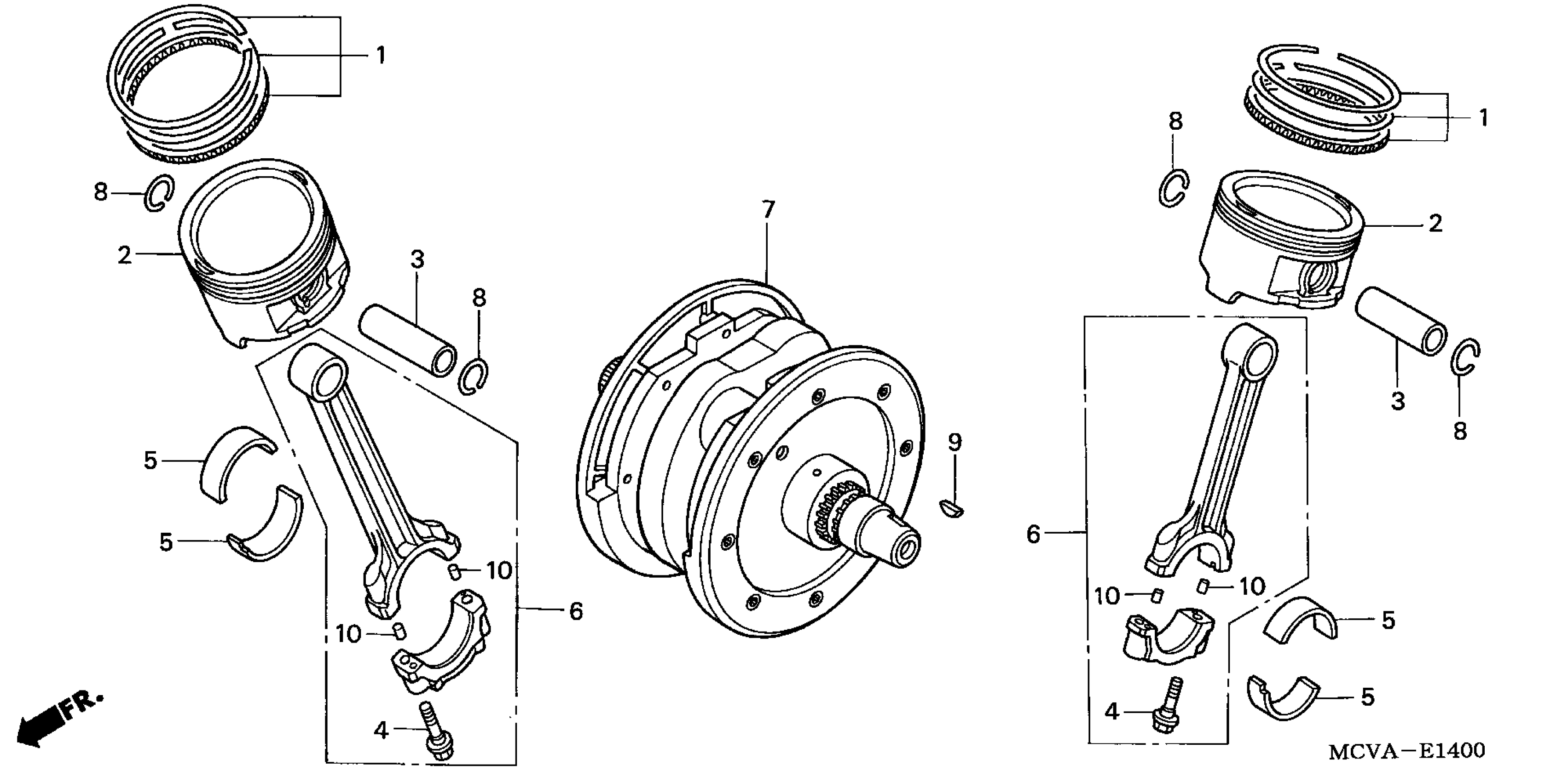

Honda VTX1800R1A (05) MOTORCYCLE, USA, VIN# 1HFSC490-5A300001 CRANKSHAFT + PISTON Diagram

RING SET, PISTON

13011-MCH-305

$68.56

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-MCH-305

$72.74

PISTON

13101-MCH-000

$170.70

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MCH-305

$168.84

PIN, PISTON

13111-MCH-010

$24.72

BOLT, CONNECTING ROD

13213-MCH-000

Unavailable

BEARING A, CONNECTING ROD (GREEN)

13218-MCH-003

Unavailable

BEARING B, CONNECTING ROD (YELLOW)

13219-MCH-003

Unavailable

BEARING C, CONNECTING ROD (PINK)

13220-MCH-003

Unavailable

ROD ASSY., CONNECTING This part replaces 13240-MCH-000.

13210-MCH-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13250-MCH-000.

13210-MCH-000

Unavailable

CRANKSHAFT

13310-MCV-R10

$874.52

CLIP, PISTON PIN

90602-MN1-670

$1.54

KEY, WOODRUFF (25X14)

90741-413-000

$2.56

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
