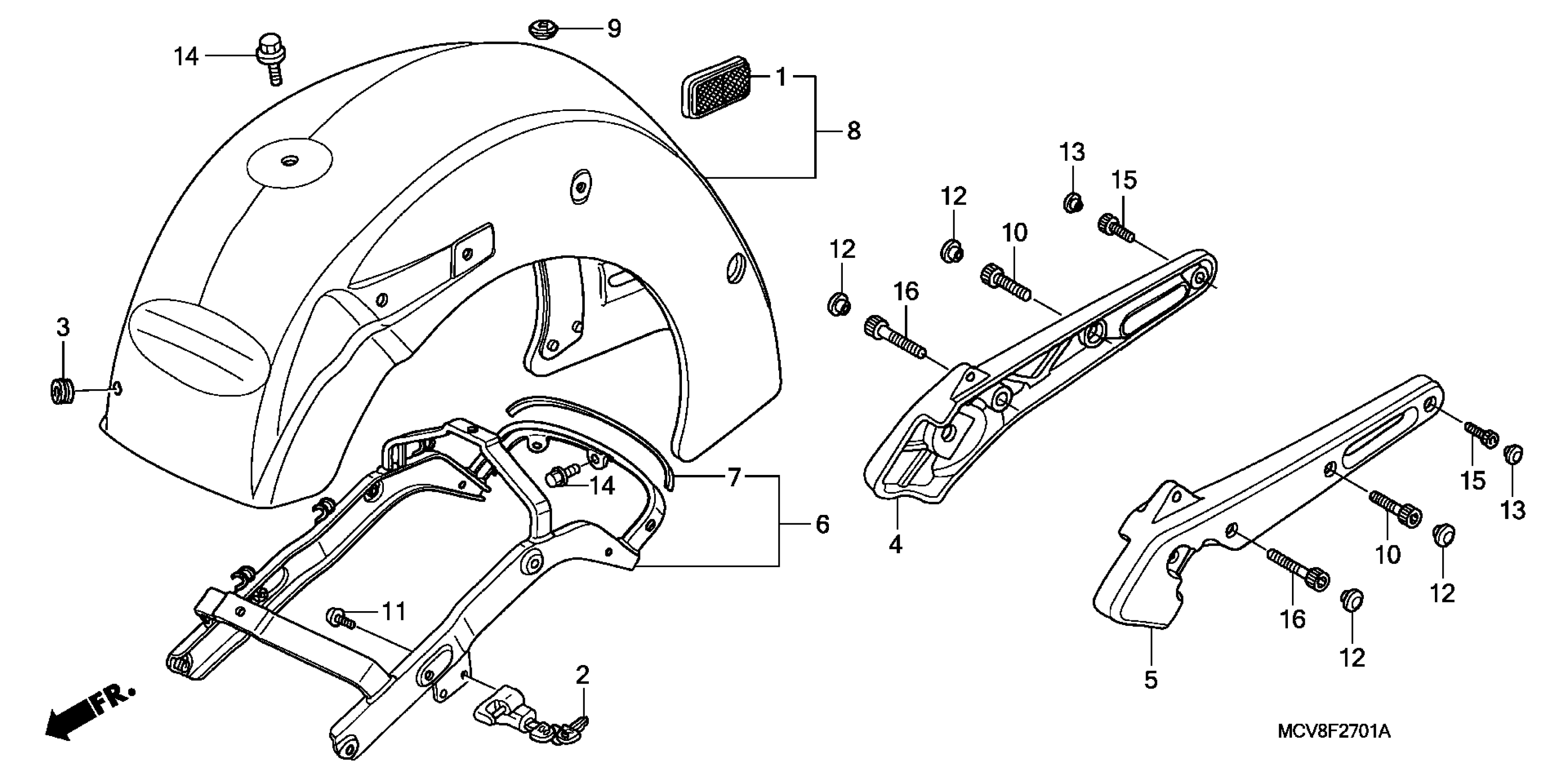

Honda VTX1800N22A (07) MOTORCYCLE, USA, VIN# 1HFSC49E-7A500001 TO 1HFSC49E-7A599999 REAR FENDER + GRAB RAIL (VTX1800N) Diagram

REFLECTOR, RR. SIDE REFLEX

33741-MEG-671

$10.95

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.23

GROMMET, OIL TUBE

55204-GJ2-000

$3.51

GRAB RAIL, R.

77330-MCV-N10

Unavailable

GRAB RAIL, L.

77340-MCV-N10

$256.52

GRAB RAIL ASSY. (INNER)

77355-MCV-N10

$223.92

SEAL, RR. FENDER

77356-MCV-N10

$11.38

FENDER SET, RR. (TYPE1) (WL) | Nebulous black metallic NHA73M;

80110-MCV-G00ZE

$1,679.23

FENDER SET, RR. (TYPE2) (WL) | Nebulous black metallic NHA73M;

80110-MCV-G00ZF

$1,585.13

FENDER SET, RR. (TYPE3) (WL) | Cabernet red metallic R303M;

80110-MCV-G00ZG

$1,679.23

GROMMET, RR. FENDER

80117-MCV-000

$11.08

BOLT, SOCKET (10X32)

90102-MCV-N10

$7.26

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.26

CAP, SOCKET BOLT (8MM)

91455-MA6-750

$3.71

CAP, SOCKET BOLT

91455-MCV-N10

Unavailable

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, SOCKET (8X25)

96600-08025-00

$2.02

BOLT, SOCKET (10X40)

96600-10040-00

$2.08
