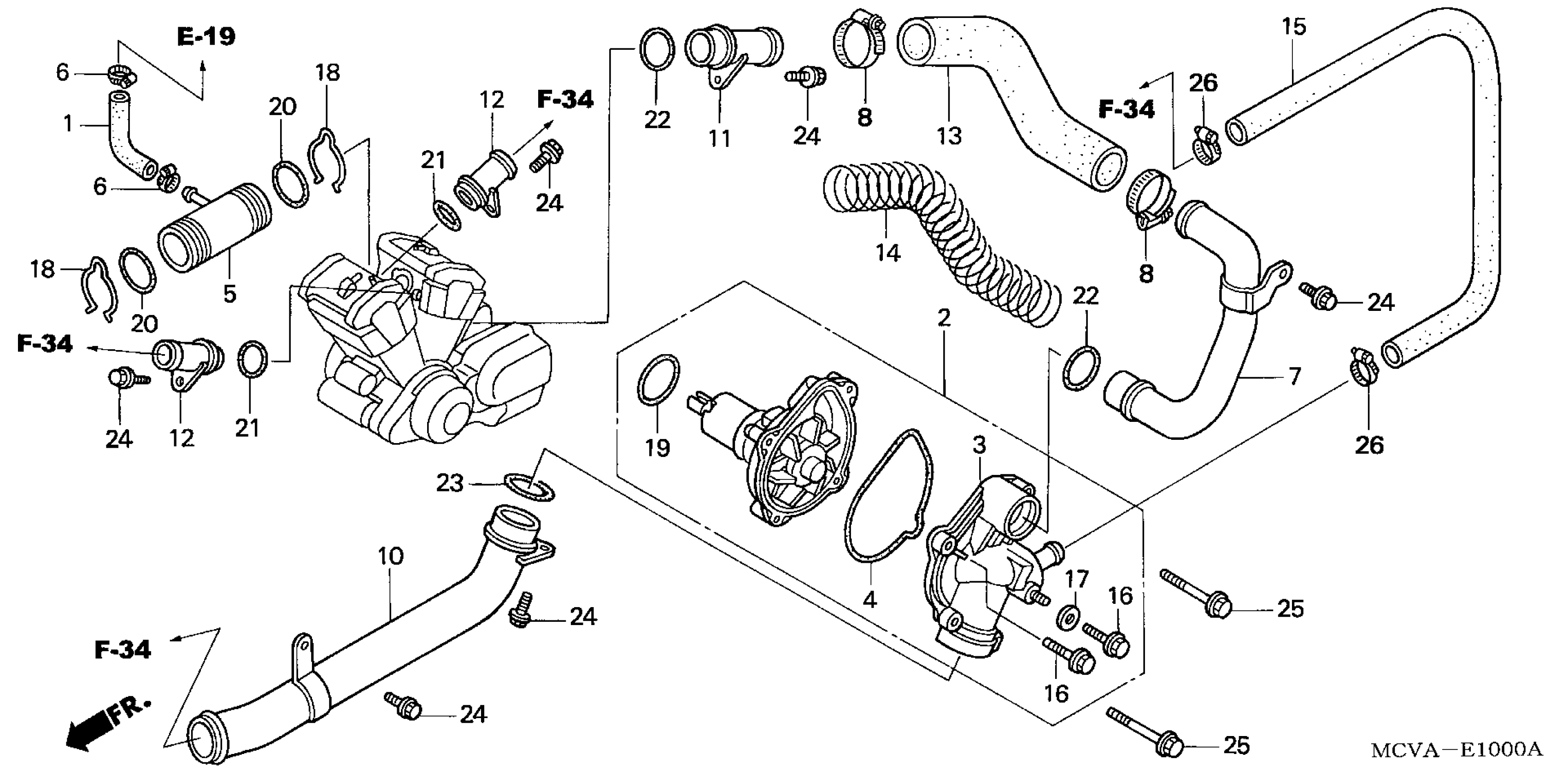

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 WATER PUMP Diagram

#

Description
Price

1

HOSE, THROTTLE BODY

19123-MCH-000

$4.36

2

WATER PUMP ASSY.

19200-MCH-000

$290.89

3

COVER, WATER PUMP

19220-MCH-000

Unavailable

4

GASKET, WATER PUMP COVER

19226-MCH-003

$8.04

5

JOINT, WATER (FR/RR CYLINDER)

19505-MCH-000

Unavailable

6

CLAMP, RADIATOR HOSE

19507-MAT-000

$9.66

7

PIPE, INLET WATER (A)

19510-MCH-000

Unavailable

8

CLAMP, WATER HOSE

19516-MB6-000

$13.12

10

PIPE, INLET WATER (B)

19520-MCH-010

Unavailable

11

PIPE C, WATER

19524-MCH-000

$18.48

12

PIPE A, WATER

19525-MCH-000

$18.19

13

HOSE A, WATER

19526-MCH-000

$15.01

14

GUARD B, WIRE

19527-MCH-830

$7.09

15

HOSE D, WATER

19531-MCH-010

$41.24

16

BOLT, FLANGE (6X25)

90121-MV9-670

$2.71

17

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

18

CLIP, RING (24MM)

90601-MCH-000

$2.42

19

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

20

O-RING (23.5X2.2)

91311-MCH-003

$2.67

21

O-RING (19X3) (NOK)

91312-KE7-003

$2.38

22

SEAL, WATER PIPE

91315-MB0-013

Unavailable

23

O-RING (27X3.1) (FRAME NO.) This part replaces 91315-MCH-000.

91315-MCH-003

$4.04

24

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

25

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

25

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

26

CLAMP A, WATER HOSE

19505-KS6-700

$10.57
