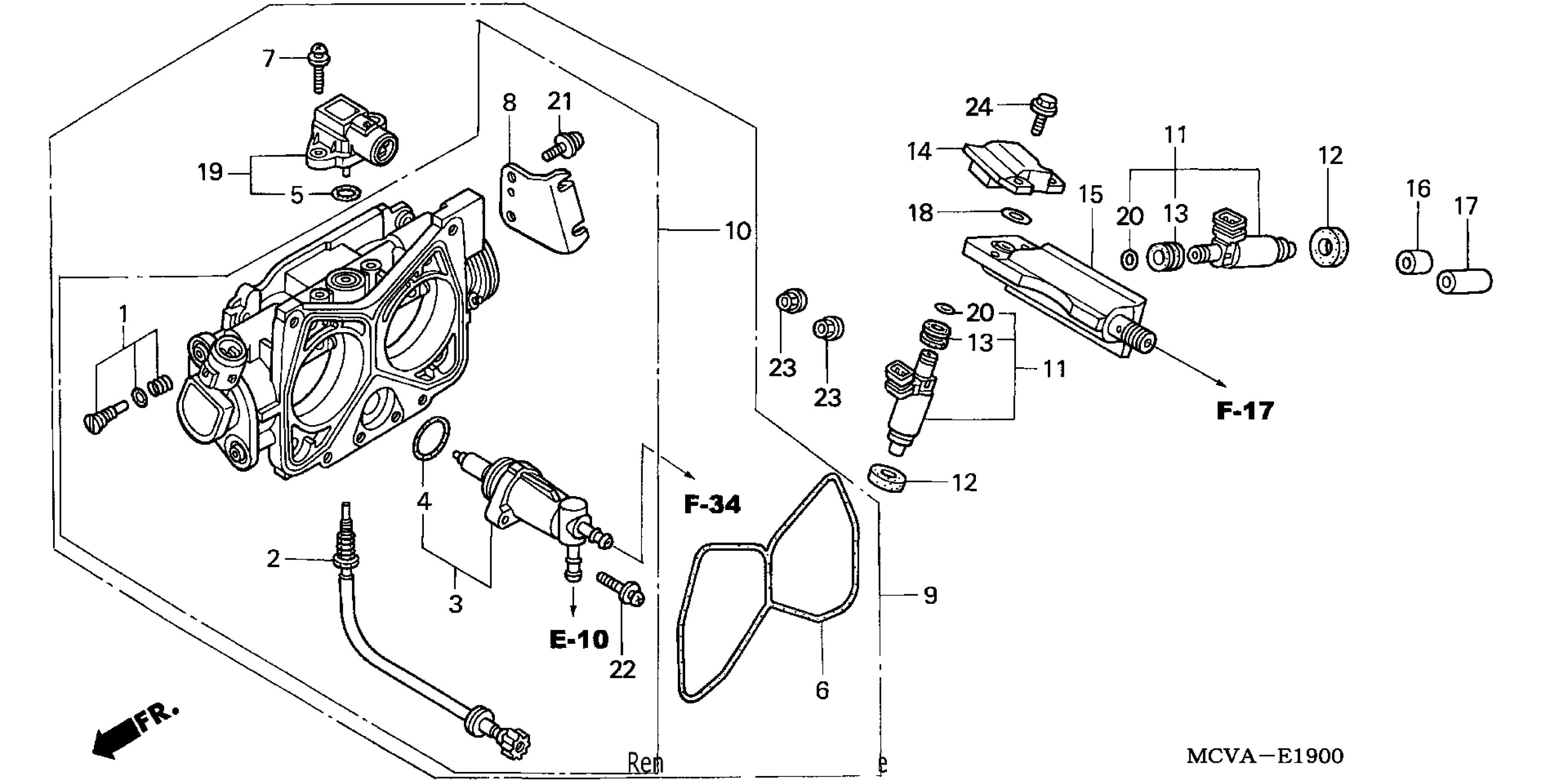

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 THROTTLE BODY Diagram

#

Description
Price

1

SCREW SET

16016-MCA-013

$15.30

2

SCREW SET, STOP

16029-MCH-003

$20.29

3

WAX ASSY.

16046-MCH-003

$63.93

4

O-RING

16075-MCH-003

$11.59

5

O-RING (9.8X1.9)

16075-P07-000

$4.23

6

O-RING

16076-MCH-003

$5.60

7

SCREW-WASHER (4X16)

16080-P07-000

$4.22

8

STAY, WIRE

16119-MCH-003

$10.61

9

BODY ASSY., THROTTLE (GQ42A A)

16400-MCH-003

$890.51

10

BODY SET

16410-MCH-003

$854.39

11

INJECTOR ASSY., FUEL

16450-MCH-004

$168.91

12

SEAL RING, INJECTOR

16472-P7A-005

$3.55

13

CUSHION RING, INJECTOR

16473-P7A-004

$6.41

14

PIPE, FR. FUEL

16610-MCH-000

$55.30

15

PIPE, RR. FUEL FEED

16620-MCV-R10

$52.74

16

COLLAR, FR. FUEL PIPE

16638-MCH-000

$2.28

17

COLLAR, RR. FUEL PIPE

16639-MCH-000

$3.88

18

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.24

19

SENSOR SET, MAP

37011-MCA-003

$150.03

20

O-RING

91301-P7A-004

$3.13

21

SCREW-WASHER (5X12)

93892-05012-00

$0.75

21

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$0.75

22

SCREW-WASHER (5X22)

93892-05022-00

Unavailable

23

NUT, FLANGE (6MM)

94050-06000

$0.59

24

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
