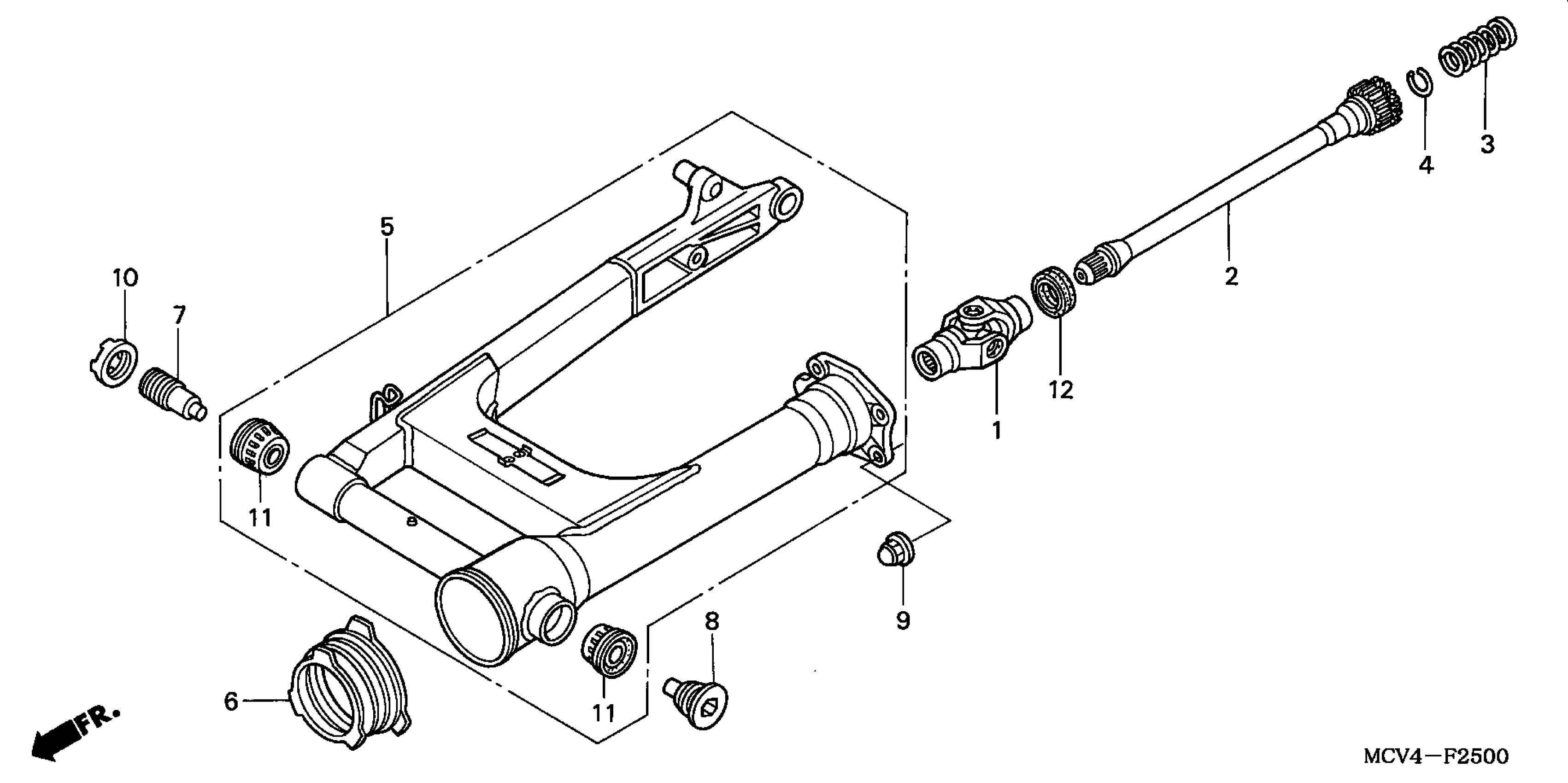

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 SWINGARM Diagram

#

Description

Price

1

JOINT, YOKE This part replaces 40200-MCH-000.

40200-MFR-670

$194.51

2

SHAFT, PROPELLER

40201-MCH-000

Unavailable

3

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

4

RING, STOPPER

40221-MB0-000

$4.53

5

SWINGARM ASSY., RR. This part replaces 52100-MCV-R10.

52100-MCH-A10

$461.13

6

BOOT, JOINT

52104-MCH-000

$11.43

7

BOLT, R. SWINGARM PIVOT

90121-MAH-A00

$12.31

8

BOLT, R. SWINGARM PIVOT

90121-MAM-A60

$12.30

9

NUT, HEX. CAP (10MM)

90308-MCH-A00

$3.15

10

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

11

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

12

OIL SEAL (27X43X7)

91261-ME9-005

$12.13
