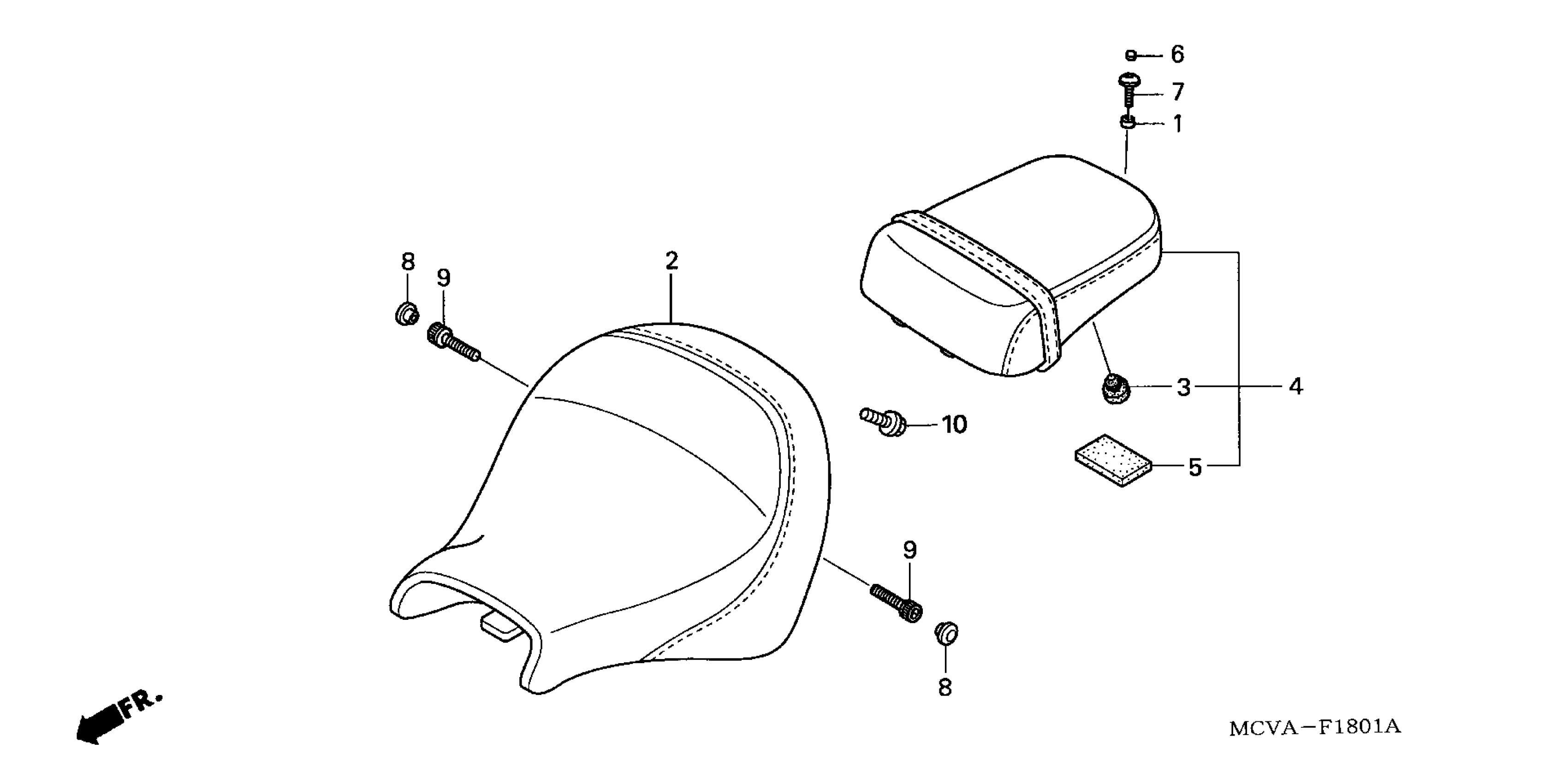

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 SEAT (VTX1800N) Diagram

#

Description
Price

1

COLLAR, METER SETTING

37243-307-670

$2.25

2

SEAT ASSY., MAIN

77200-MCV-N11

Unavailable

3

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.83

4

SEAT ASSY., RR.

77300-MCV-N10

$177.09

5

RUBBER, SPACER

80126-GAG-750

$2.19

6

PLUG, HEX. (5MM)

90005-MAH-000

Unavailable

7

BOLT, SPECIAL (6X18)

90021-MZ1-000

$4.10

8

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

9

BOLT, SOCKET (8X18)

96600-08018-00

$1.21

10

BOLT, FLANGE (6X14)

95701-06014-07

$1.34
