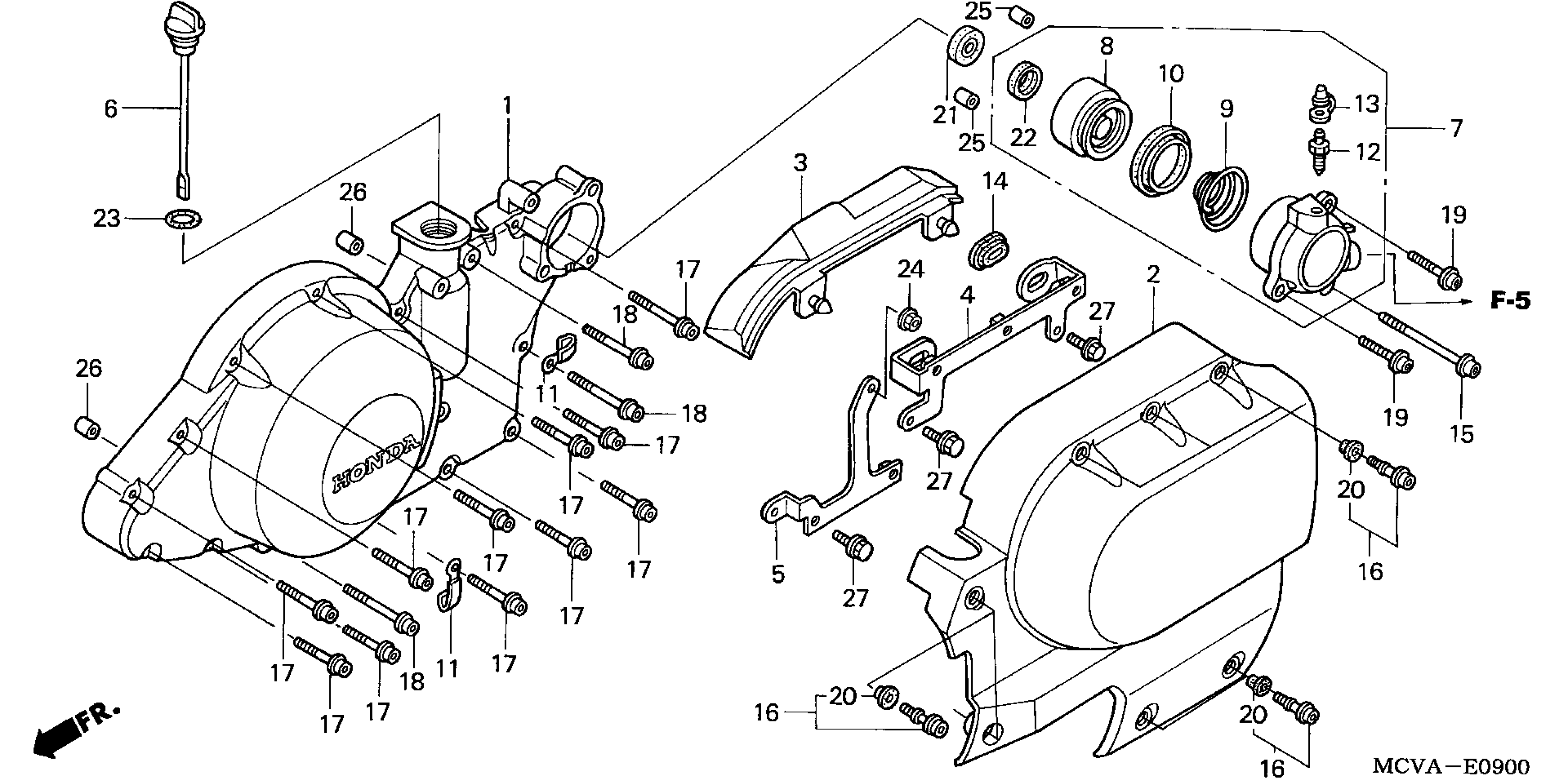

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11361-MCH-A00

Unavailable

2

COVER, L. RR.

11370-MCH-000

Unavailable

3

SUB-COVER, L. RR.

11375-MCH-000

Unavailable

4

STAY A, L. RR. COVER

11380-MCH-000

$7.88

5

STAY B, L. RR. COVER

11390-MCH-000

Unavailable

6

DIPSTICK, OIL

15650-MCH-000

$12.97

7

CYLINDER ASSY., CLUTCH SLAVE

22860-MCH-000

$112.69

8

PISTON, SLAVE CYLINDER

22863-MJ8-003

$24.46

9

SPRING, SLAVE CYLINDER

22864-MB0-003

$5.97

10

CUP, SLAVE CYLINDER

22865-MJ8-003

$10.55

11

CLAMP, SWITCH WIRE

35211-443-760

$3.82

12

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

13

CAP, BLEEDER

43353-461-771

$4.83

14

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

15

BOLT, SOCKET (6X60)

90011-KN8-730

Unavailable

16

BOLT ASSY., SPECIAL (6X22)

90020-MBA-D20

$4.05

17

BOLT, FLANGE SOCKET (6X32)

90032-MCH-000

$2.09

18

BOLT, FLANGE SOCKET (6X45)

90033-MCH-000

$2.38

19

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.71

20

RUBBER, MOUNTING

90543-MBA-000

$2.80

21

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.87

22

OIL SEAL (8X18X5)

91209-MB0-003

$3.87

23

O-RING (18X3)

91307-035-000

$2.75

24

NUT, FLANGE (6MM)

94050-06000

$0.60

25

PIN, DOWEL (8X10)

94301-08100

$2.62

26

PIN, DOWEL (8X14)

94301-08140

$2.62

27

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
