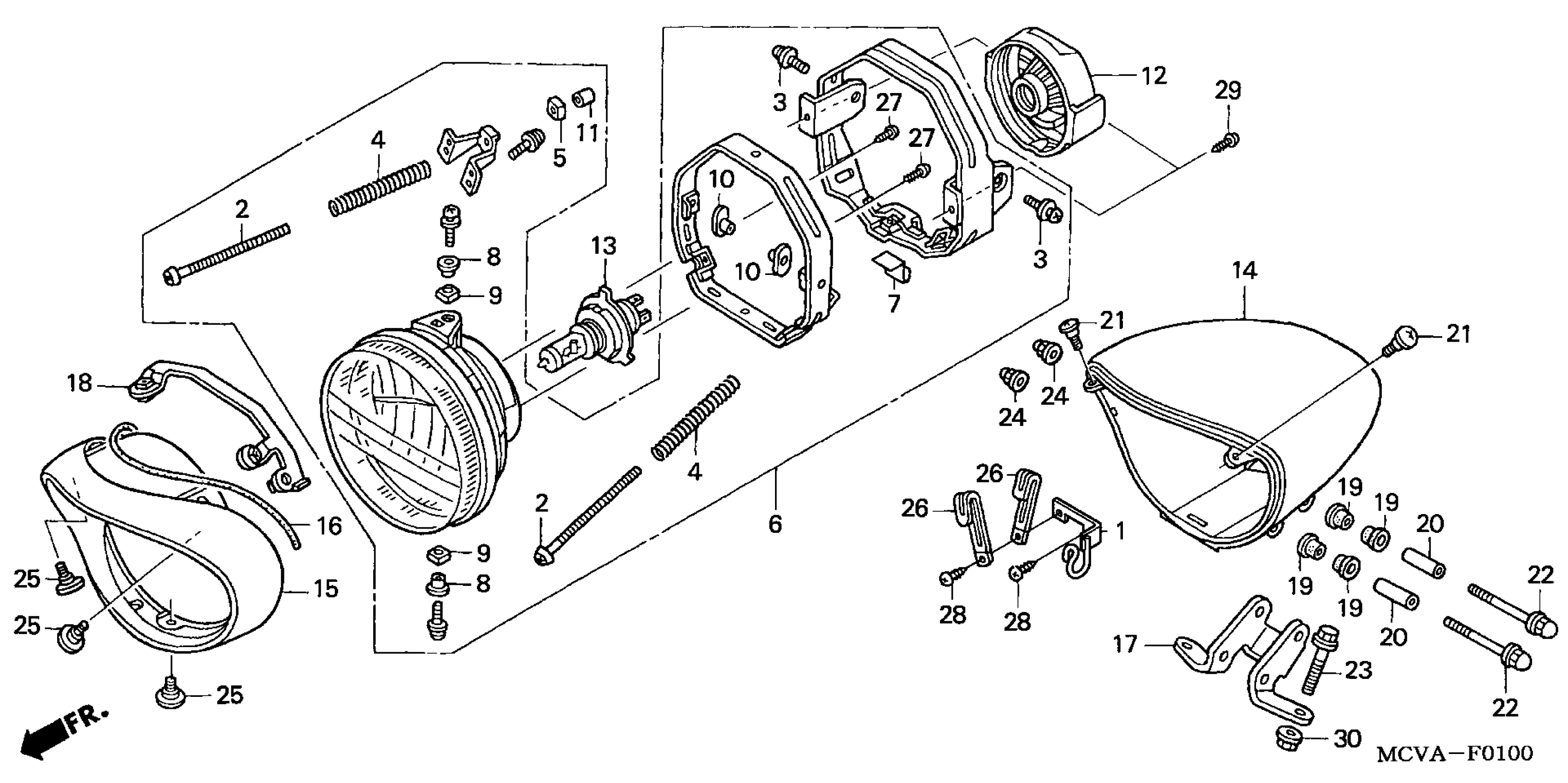

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 HEADLIGHT Diagram

#

Description
Price

1

CLAMP, HARNESS

32111-MCV-N10

$1.97

2

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.49

3

SCREW-WASHER

33104-MAH-671

$3.73

4

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.81

5

NUT, BEAM ADJUSTING

33118-438-841

$2.03

6

HEADLIGHT UNIT

33120-MEA-671

$305.62

7

TAPE, PROTECTOR

33126-MEA-650

$2.83

8

SPACER

33127-MAA-A31

$2.14

9

NUT, UNIT HOLDER

33128-GE8-671

$3.72

10

NUT, SPECIAL

33128-MAH-671

$3.45

11

COVER, SCREW

33136-426-830

$1.71

12

COVER, RUBBER

33180-MR7-003

$12.79

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$33.38

14

CASE, HEADLIGHT

61301-MCH-670

$70.69

15

RIM, HEADLIGHT

61302-MCH-670

$43.92

16

RUBBER, SPONGE

61303-MEA-670

$2.90

17

STAY, HEADLIGHT This part replaces 61311-MCH-670.

61311-MCH-B70

$170.14

18

STAY A, HEADLIGHT

61312-MEA-670

$37.46

19

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.80

20

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.80

21

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.64

22

BOLT, CAP (6MM)

90132-MCH-000

$2.67

23

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.53

24

NUT, CAP (6MM)

90201-425-700

$3.93

25

SCREW, SPECIAL (5X9.5)

90380-GE2-760

$2.35

26

CLIP

91411-679-000

$14.75

27

SCREW, TAPPING (4X12)

93901-34320

$0.81

28

SCREW, TAPPING (4X12)

93901-44310

Unavailable

29

SCREW, TAPPING (4X12)

93903-24380

Unavailable

30

NUT, FLANGE (8MM)

94050-08000

$0.86
