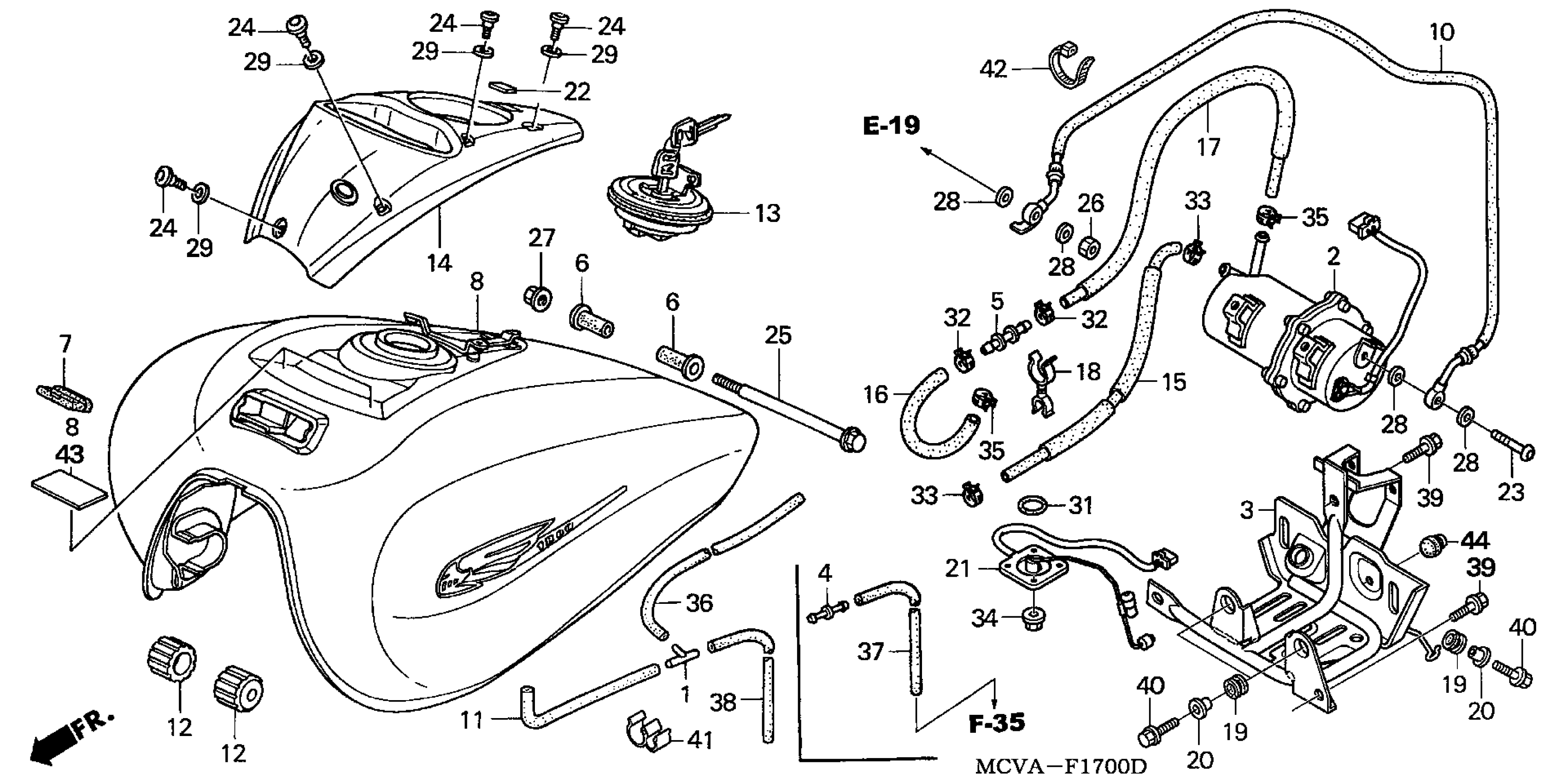

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 FUEL TANK Diagram

#

Description
Price

1

T-JOINT

16180-195-731

$12.95

2

PUMP UNIT, FUEL This part replaces 16700-MCV-R11.

16700-MCV-R13

$789.96

3

CASE STAY, FUEL PUMP

16730-MCV-R10

$71.37

5

JOINT, FUEL TUBE

16966-MR5-000

$7.57

6

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

7

RUBBER, FR. TANK STAY

17512-GS9-000

$10.69

8

TANK SET, FUEL (TYPE1) (WL)

17520-MCV-900ZE

$3,164.28

8

TANK SET, FUEL (TYPE2) (WL)

17520-MCV-900ZB

$2,072.15

8

TANK SET, FUEL (TYPE3) (WL)

17520-MCV-900ZC

$2,209.26

8

TANK SET, FUEL (TYPE4) (WL)

17520-MCV-900ZD

$2,087.95

10

HOSE, FUEL FEED

17527-MCV-R10

Unavailable

11

TUBE, FUEL TANK BREATHER

17528-MCH-000

$20.12

12

CUSHION, FR. FUEL TANK

17611-MCH-000

$30.52

13

CAP, FUEL FILLER This part replaces 17620-MCH-003.

17620-MCH-013

$153.76

14

COVER, FR. TOP

17621-MCV-000

$76.88

15

TUBE, FUEL This part replaces 17680-MCV-R10.

17680-MCV-R11

$12.09

15

TUBE, FUEL

17680-MCV-R11

$12.09

16

TUBE A, FUEL AIR DRAIN This part replaces 17691-MCV-R11.

17691-MCV-R12

$9.09

17

TUBE B, FUEL AIR DRAIN This part replaces 17692-MCV-R10.

17692-MCV-R11

$13.35

18

CLAMP, TUBE

17695-MCV-R11

Unavailable

19

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

20

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

21

RESERVE UNIT

37810-MCV-N11

$72.12

22

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

23

BOLT, BANJO (12MM)

90108-MBG-000

$10.46

24

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.92

25

BOLT, TANK HINGE

90135-MS2-000

$6.22

26

NUT, SEALING (12MM)

90201-MCH-000

Unavailable

27

NUT, U (6MM)

90301-473-003

$4.07

28

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

29

WASHER, TOP COVER SETTING

90508-MCH-000

$2.28

31

O-RING (39.5X5)

91305-MC7-000

$3.31

32

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

33

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.89

34

NUT, FLANGE (6MM)

94050-06080

$1.49

35

CLAMP, TUBE (D12)

95002-41200-04

$2.34

36

BULK HOSE, VACUUM (4.5X1000) (4.5X510)

95005-45001-10M

$23.47

38

BULK HOSE, VACUUM (4.5X1000) (4.5X950)

95005-45001-10M

$23.47

39

BOLT, FLANGE (8X14)

95701-08014-07

$1.49

40

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

41

CLAMP, PIPE

11152-KS4-003

$7.13

42

BAND, WIRE HARNESS

90651-MA6-720

$3.73

43

TAPE, TANK GUARD

17528-MR4-900
