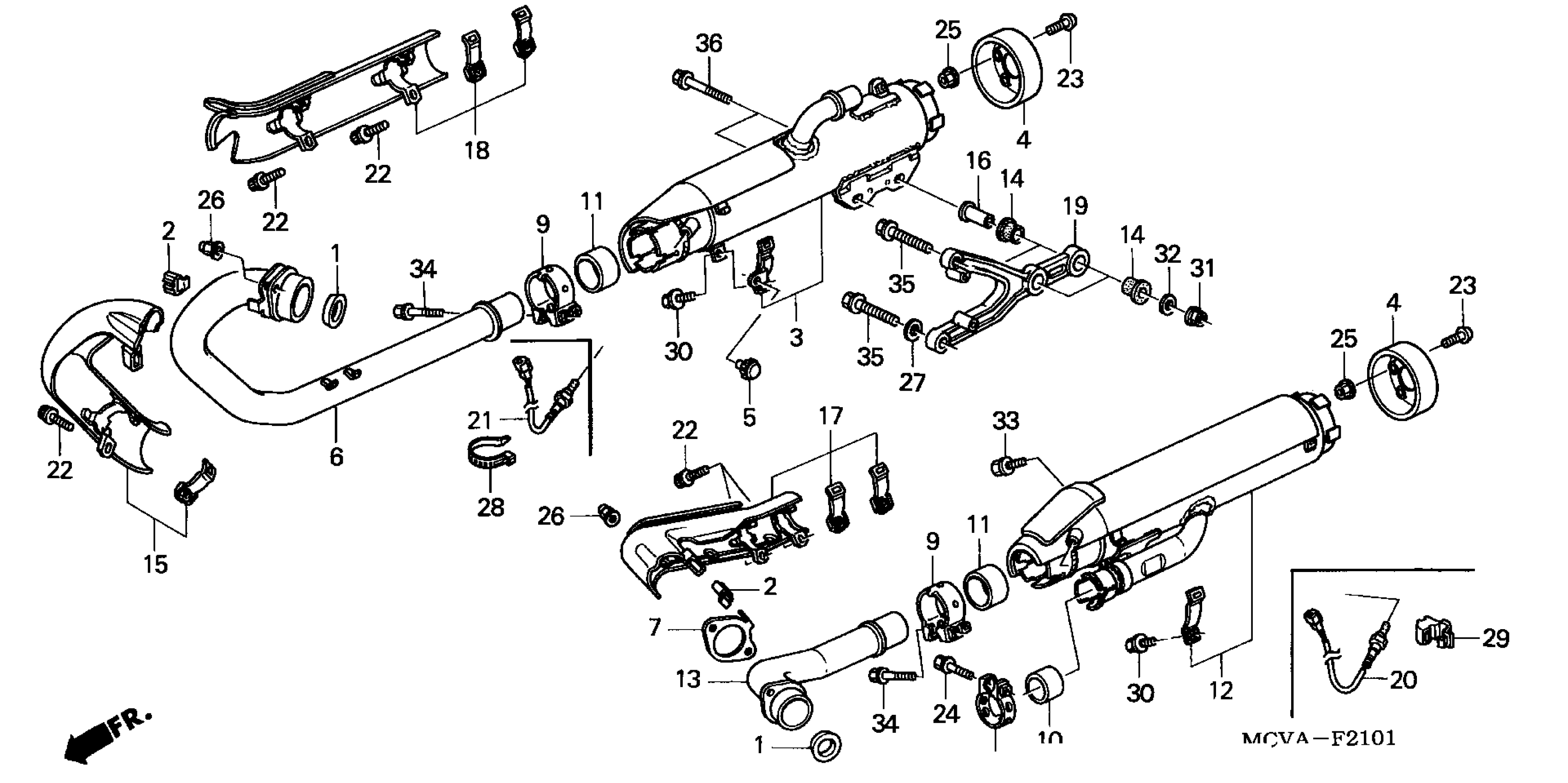

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 EXHAUST MUFFLER (2) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MR5-801

$12.82

2

RUBBER, PROTECTOR

18293-MN0-000

$2.13

3

MUFFLER, FR.

18305-MCV-N11

$676.70

4

TAILPIECE

18316-MCV-N11

Unavailable

5

RUBBER, STOPPER

18319-MAH-000

$5.36

6

PIPE, FR. EX.

18320-MCV-000

$217.62

7

HOLDER, EX. PIPE COVER

18327-MCH-000

Unavailable

7

HOLDER, EX. PIPE COVER

18328-MCH-300

$7.00

8

BAND, L. EX. PIPE

18374-ML0-000

$28.48

9

BAND, R. MUFFLER

18376-MB4-003

$41.21

10

GASKET, MUFFLER

18391-MN5-650

$20.61

11

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

12

MUFFLER, RR.

18405-MCV-N11

Unavailable

13

PIPE, RR. EX.

18420-MCV-000

Unavailable

14

RUBBER, MUFFLER MOUNTING

18421-KAF-000

$3.13

15

COVER, FR. EX. PIPE

18421-MCV-000

Unavailable

16

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

17

COVER, RR. EX. PIPE

18422-MCV-000

Unavailable

18

COVER B, FR. EX. PIPE

18423-MCV-000

$354.93

19

BRACKET, MUFFLER

18455-MCV-R10

Unavailable

22

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

23

SCREW, PAN (6X12)

90108-MCV-R10

$2.13

24

BOLT, FLANGE (8X32)

90125-GS9-000

$2.97

25

NUT, U (6MM)

90301-473-003

$4.07

26

NUT, CAP (8MM)

90304-ME1-670

$5.94

27

WASHER (10.5X26X1.6)

90551-MCV-000

$2.18

30

BOLT-WASHER (6X12)

93404-06012-07

$1.55

31

NUT, FLANGE (8MM)

94050-08070

$1.49

32

WASHER, PLAIN (8MM)

94103-08700

$1.49

33

BOLT, FLANGE (8X14)

95701-08014-07

$1.49

34

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

35

BOLT, FLANGE (10X35)

95701-10035-07

$2.07

36

BOLT, FLANGE (8X50)

95801-08050-07

$1.85
