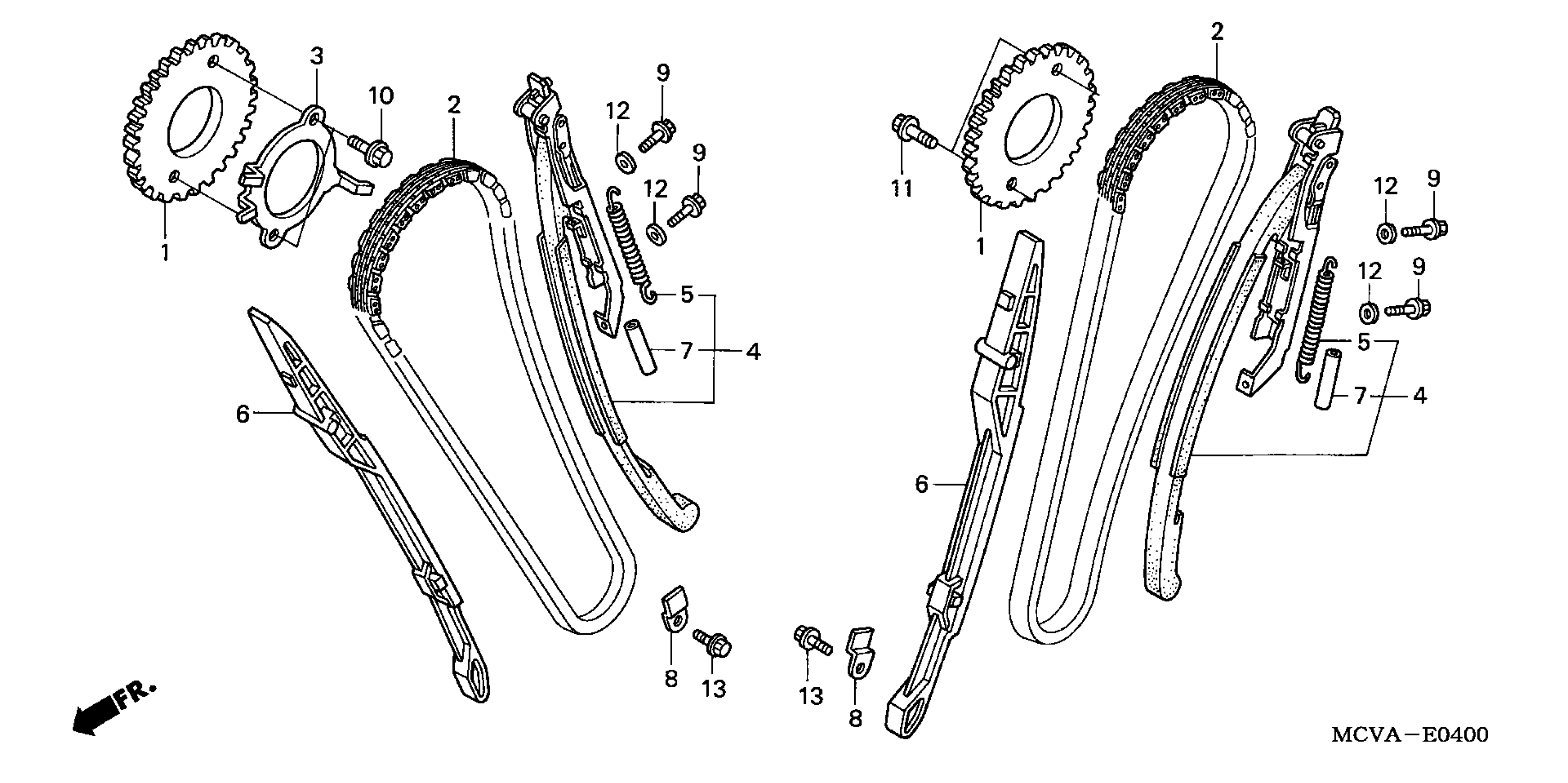

Honda VTX1800N1A (05) MOTORCYCLE, USA, VIN# 1HFSC49A-5A300001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (42T)

14322-MCH-000

Unavailable

CHAIN, CAM (148L) (BORG WARNER)

14401-MCH-003

$126.59

ROTOR, CAM PULSE

14405-MCH-000

Unavailable

TENSIONER, CAM CHAIN

14510-MCH-000

$126.51

SPRING, CAM CHAIN TENSIONER

14516-MCH-000

$5.74

GUIDE, CAM CHAIN

14522-MCH-000

Unavailable

TUBE, TENSIONER SPRING

14545-MG7-010

$11.28

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

BOLT, FLANGE (6X24)

90001-MEM-670

$1.80

BOLT, UBS (7X19)

90026-MCH-000

Unavailable

BOLT, UBS (7X15)

90026-MM8-000

$2.92

WASHER, SEALING (6MM)

90441-706-000

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
