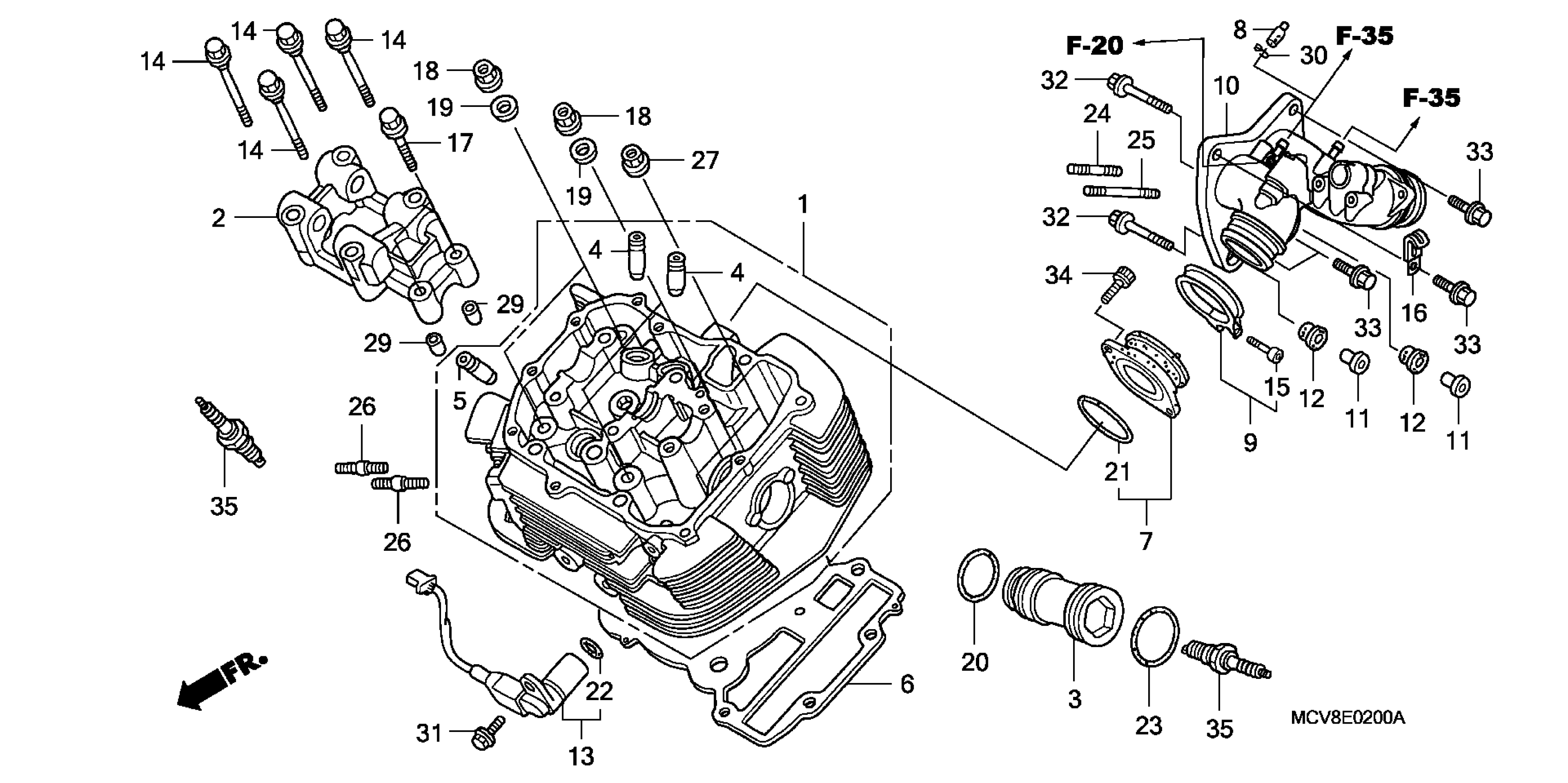

Honda VTX1800N11AC (08) MOTORCYCLE, USA, VIN# 1HFSC49B-8A600001 FRONT CYLINDER HEAD Diagram

CYLINDER HEAD, FR.

12210-MCH-700

Unavailable

HOLDER, CAMSHAFT

12215-MCH-000

$80.61

SLEEVE, PLUG

12224-MCH-000

Unavailable

GUIDE, IN. VALVE (OVER SIZE)

12231-MCH-305

$23.38

GUIDE, EX. VALVE (OVER SIZE)

12233-MCH-305

Unavailable

GASKET, CYLINDER HEAD

12251-MCH-003

$39.02

INSULATOR, THROTTLE BODY

16210-MCH-000

$43.72

BAND, INSULATOR

16218-MCH-000

Unavailable

MANIFOLD, INLET

17110-MCV-R40

Unavailable

COLLAR, MANIFOLD MOUNTING

17121-MCH-000

$4.49

GROMMET

17125-MCH-000

Unavailable

PULSER ASSY., CAM

36140-MCH-003

$166.61

BOLT, UBS (8X65)

90029-MS9-750

$5.94

BOLT, SOCKET (4X25)

90035-MCH-000

Unavailable

CLIP (2X50)

90105-727-000

$3.17

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER (10MM)

90410-HC4-000

$3.81

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

O-RING (48.5X2.5)

91301-MCH-003

$5.60

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

BOLT, STUD (6X28)

92900-06028-0B

$1.89

BOLT, STUD (6X45)

92900-06045-0B

$1.93

BOLT, STUD (8X25)

92900-08025-0E

$1.92

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

SPARK PLUG (VK16PRZ11) (DENSO)

98079-5515U

$29.67

SPARK PLUG (IFR5L11) (NGK)

98079-5517U

$16.24

SPARK PLUG (VK20PRZ11) (DENSO) | (Optional).

98079-5615U

$29.67

SPARK PLUG (IFR6L11) (NGK) | (Optional).

98079-5617U

$18.24
