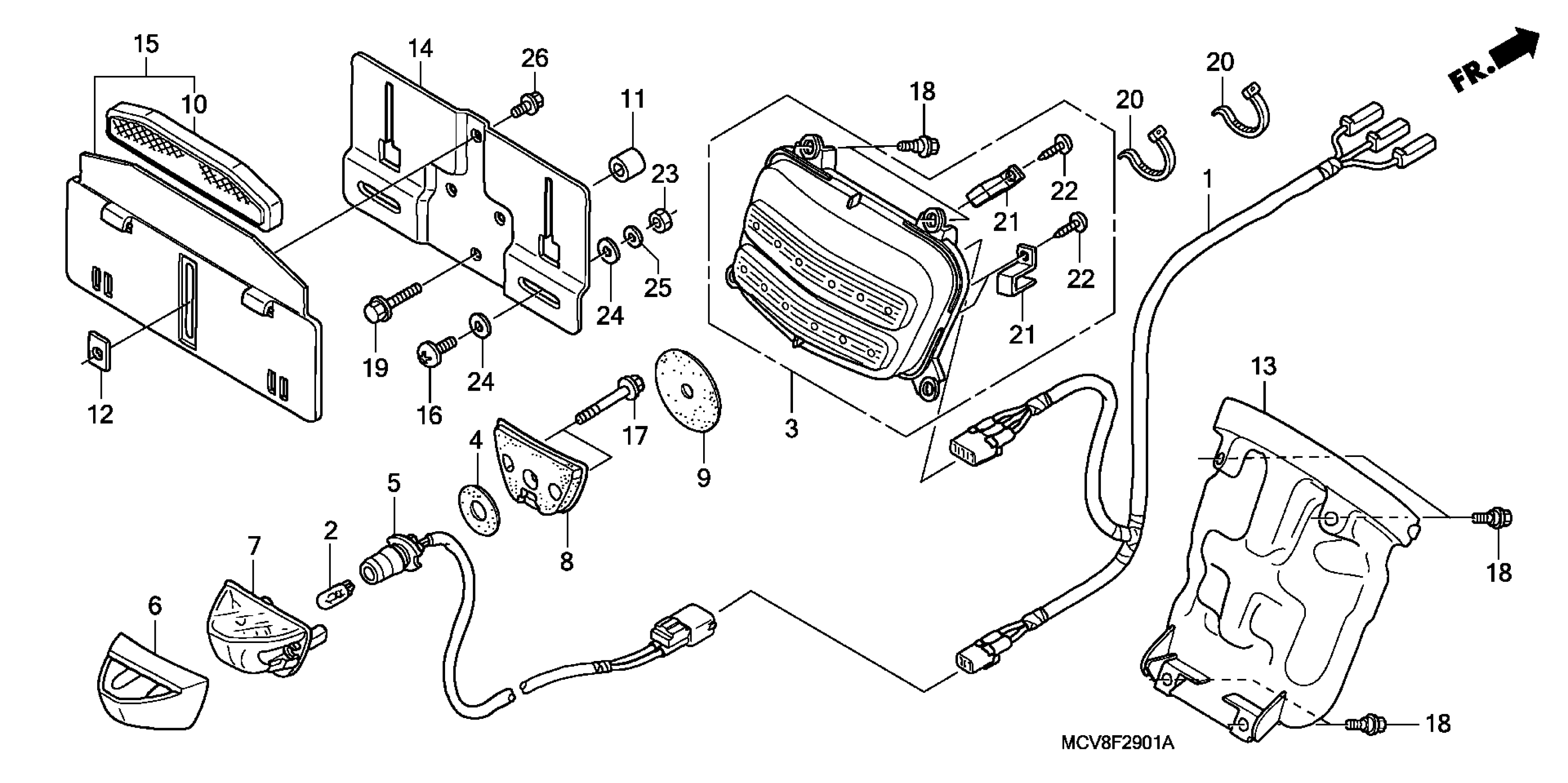

Honda VTX1800N11A (08) MOTORCYCLE, USA, VIN# 1HFSC49A-8A600001 TAILLIGHT (2) Diagram

#

Description
Price

1

SUB-HARNESS, RR.

32102-MCV-N10

Unavailable

2

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

3

TAILLIGHT ASSY., & STOP

33701-MCV-N11

Unavailable

4

RUBBER A, LICENSE LIGHT

33722-MEC-670

$1.80

5

SOCKET, LICENSE LIGHT

33723-MCV-N10

Unavailable

6

LIGHT COVER, LICENSE

33725-MEC-A00

Unavailable

7

LENS, LICENSE LIGHT

33727-MEC-A00

Unavailable

8

RUBBER, LICENSE LIGHT

33730-MEC-010

$8.33

9

RUBBER B, LICENSE LIGHT

33733-MEC-670

$1.88

10

REFLECTOR, REFLEX

33743-MEC-860

$45.41

11

COLLAR B, ROLLER

40559-197-000

$1.58

12

NUT, SPECIAL (6X7)

61304-958-003

$3.01

13

COVER (INNER)

77360-MCV-N10

$20.54

14

BRACKET, NUMBER PLATE

84701-MCV-N11

$29.14

15

BRACKET B ASSY., NUMBER PLATE

84705-MCV-N10

Unavailable

16

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.51

17

BOLT, FLANGE (5X35)

90114-MEC-000

Unavailable

18

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

19

BOLT, FLANGE (6X25)

90122-369-000

$6.35

20

BAND, WIRE HARNESS

90652-MB0-000

$2.93

21

CLIP, SUB-HARNESS

91410-MCV-N10

Unavailable

22

SCREW, TAPPING (5X8)

93901-25010

$0.43

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM)

94001-06200-0S

$1.19

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM)

94101-06800

Unavailable

25

WASHER, SPRING (6MM)

94111-06000

$0.86

26

BOLT, FLANGE (6X8)

96001-06008-07

$0.86
