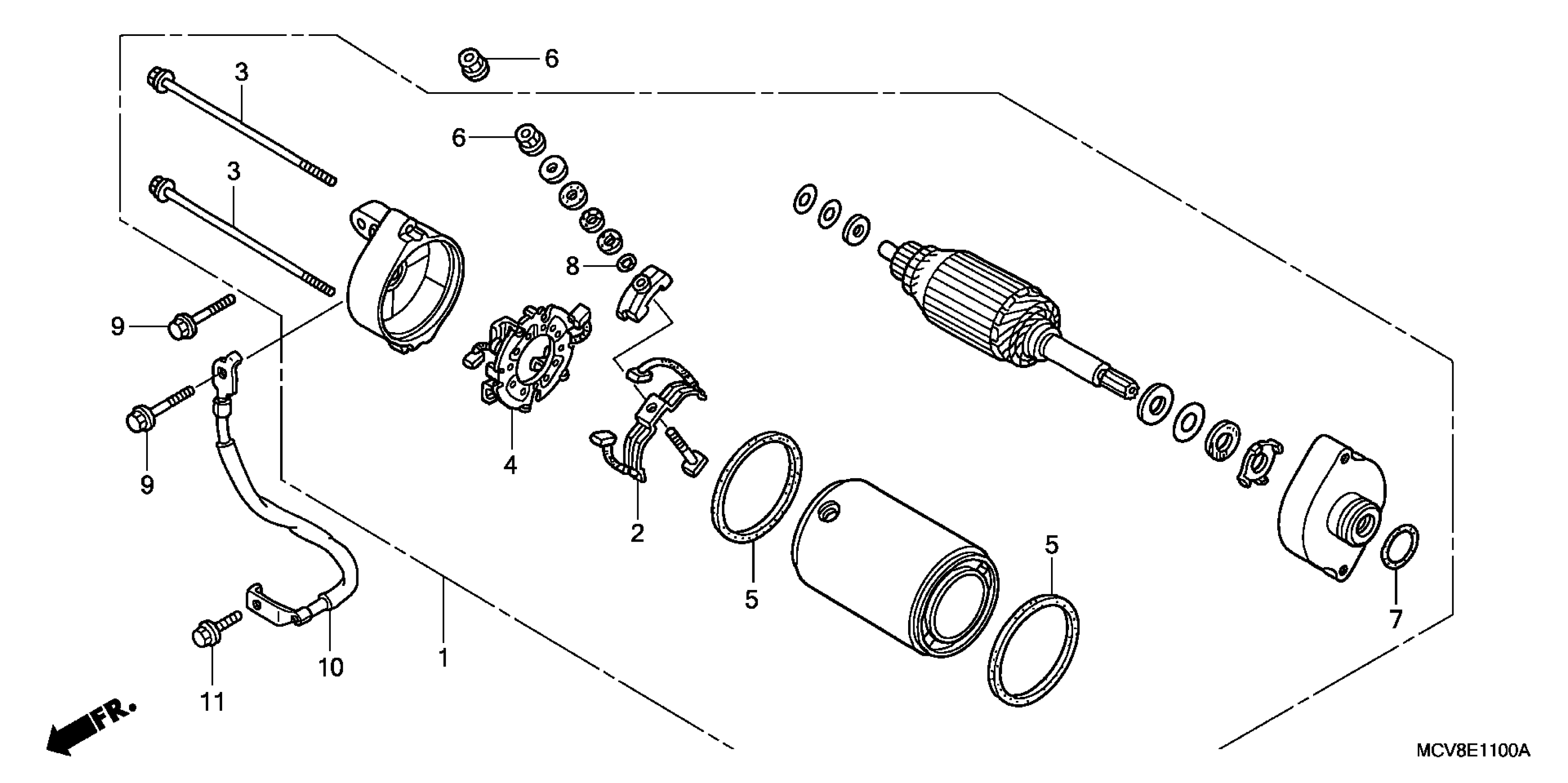

Honda VTX1800N11A (08) MOTORCYCLE, USA, VIN# 1HFSC49A-8A600001 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-MCV-R20

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$21.00

BOLT, SETTING

31205-MR6-008

Unavailable

HOLDER SET, BRUSH

31206-MR6-008

$22.08

RING

31207-KS5-901

$2.90

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

BOLT, FLANGE (6X28)

95701-06028-02

$1.74

CABLE, FRAME GROUND

32602-MCH-A00

$7.09

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
