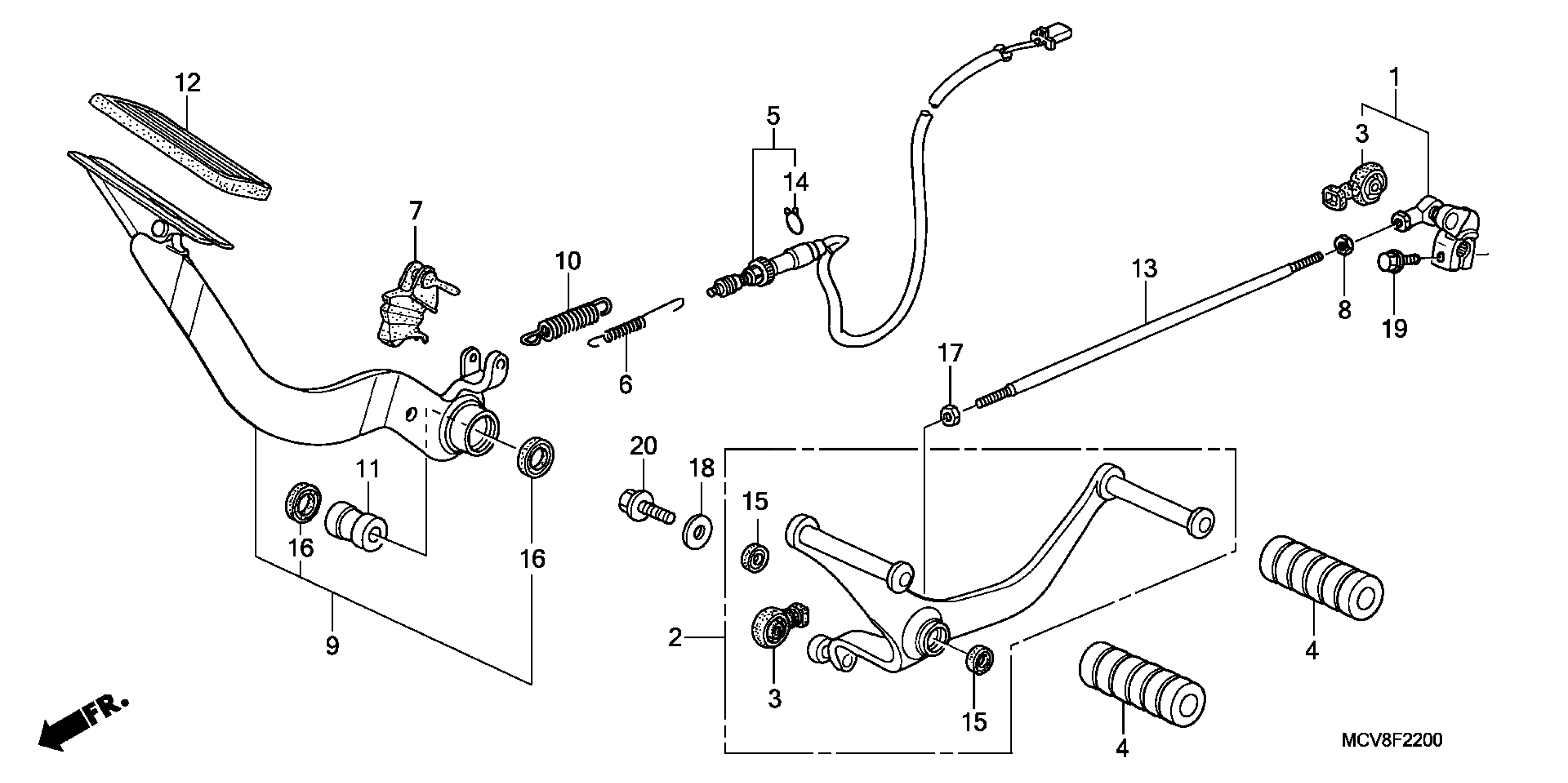

Honda VTX1800N11A (08) MOTORCYCLE, USA, VIN# 1HFSC49A-8A600001 PEDAL Diagram

ARM, GEARSHIFT

24702-MCV-000

Unavailable

PEDAL, GEARSHIFT

24710-MCV-000

$222.62

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-MCH-000

$5.76

SWITCH ASSY., RR. STOP

35350-MCV-N10

Unavailable

SPRING, STOP SWITCH This part replaces 35357-MG2-000.

35357-MM5-000

Unavailable

SPRING, STOP SWITCH

35357-MM5-000

Unavailable

RUBBER, RR. BRAKE COVER

43411-MCV-000

$13.64

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL, RR. BRAKE

46510-MCV-000

$192.72

SPRING, BRAKE PEDAL

46511-KT0-670

$6.80

COLLAR, RR. BRAKE PIVOT

46515-MCV-000

Unavailable

COVER, BRAKE PEDAL

46545-SA5-980

$8.69

BOLT, TIE ROD

90065-MCV-000

$56.79

CLIP, SWITCH COVER

90601-KAF-003

$2.67

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

OIL SEAL (22X27X3)

91304-GE1-711

Unavailable

NUT, HEX. (6MM)

94002-06020-0S

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
