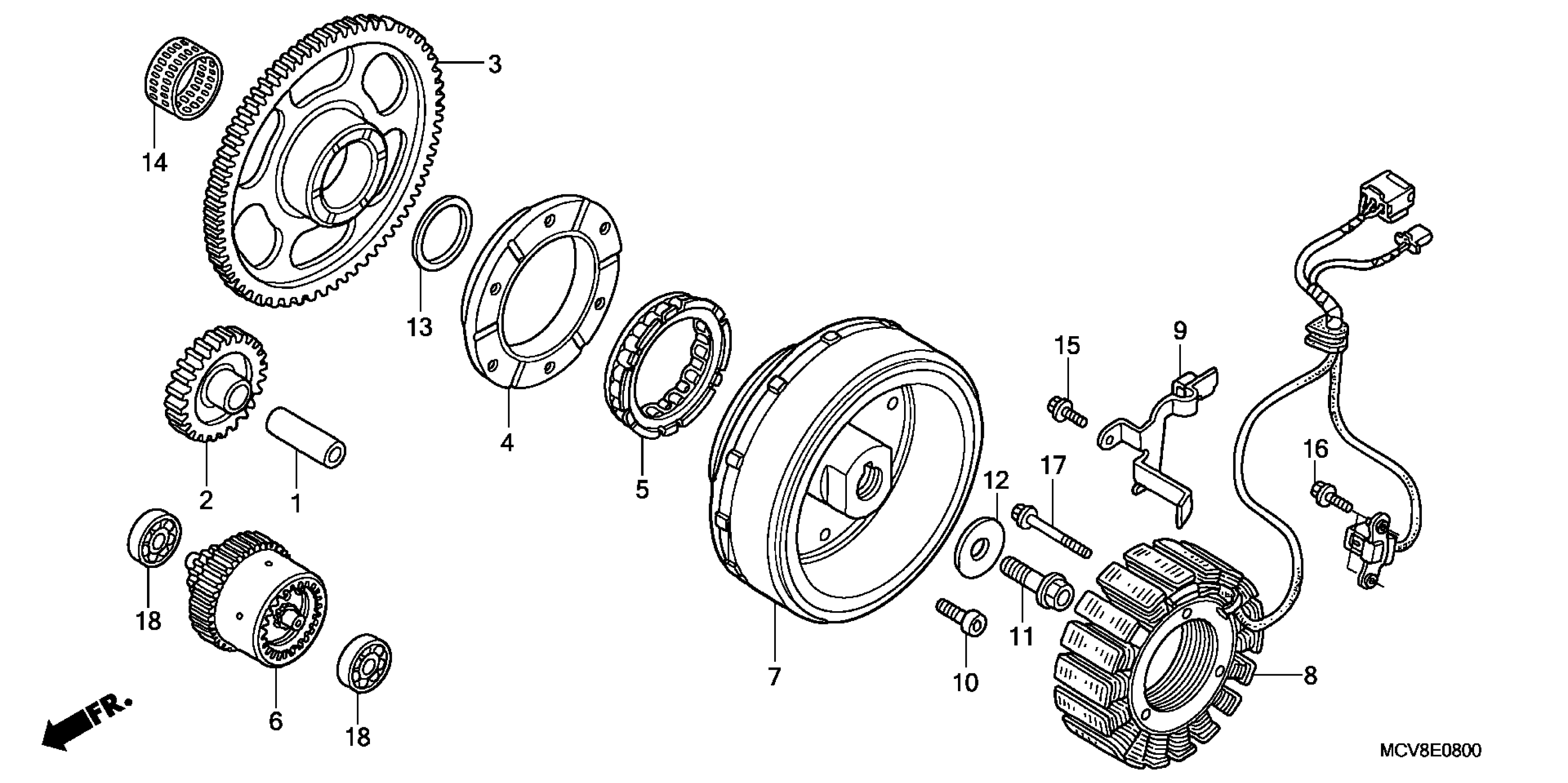

Honda VTX1800N11A (08) MOTORCYCLE, USA, VIN# 1HFSC49A-8A600001 ALTERNATOR Diagram

PIN, PISTON

13111-KE6-P00

Unavailable

PIN, PISTON

13111-KE6-830

$14.20

GEAR, STARTER REDUCTION (27T)

28101-MCH-000

$73.36

GEAR, STARTING DRIVEN (76T)

28110-MCH-000

$171.23

CLUTCH OUTER, STARTING

28121-MAH-000

$149.75

CLUTCH, ONE-WAY

28126-MK5-004

$98.47

LIMITER ASSY., TORQUE

28140-MCH-000

$335.39

FLYWHEEL

31110-MCH-003

$595.34

STATOR

31120-MCH-003

Unavailable

CLAMP, ALTERNATOR WIRE

32961-MCH-000

Unavailable

BOLT, SOCKET (8MM)

90010-MCH-000

$2.70

BOLT, FLANGE (12X45)

90023-MBT-010

$7.03

WASHER (12.2X40X5)

90402-MBA-A40

$5.62

WASHER, THRUST (34MM)

90451-383-000

$8.91

BEARING, NEEDLE (34X44X24)

91021-MCH-003

$31.07

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
