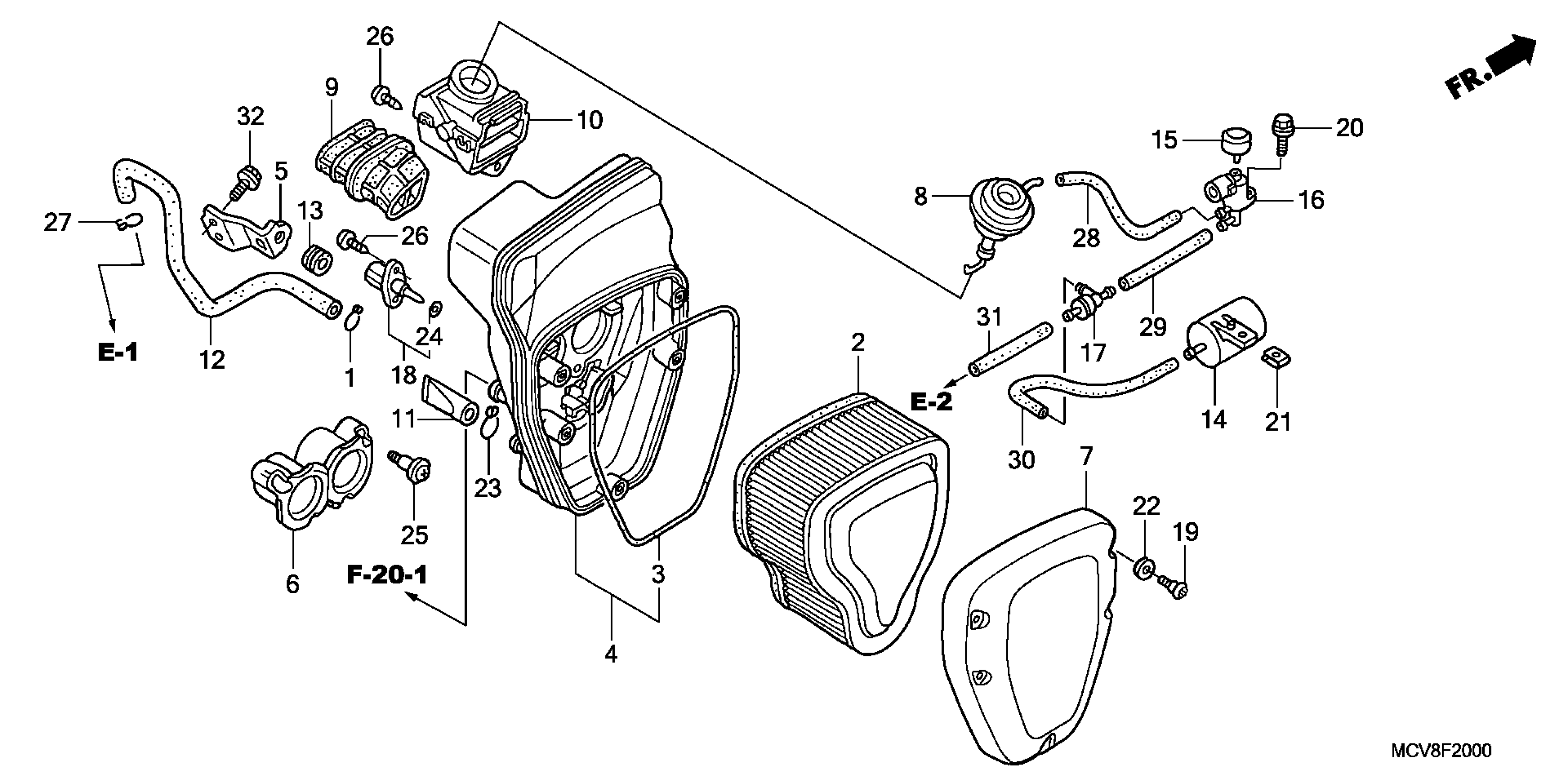

Honda VTX1800N11A (07) MOTORCYCLE, USA, VIN# 1HFSC49A-7A500001 TO 1HFSC49A-7A599999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78

2

ELEMENT, AIR CLEANER

17213-MCH-000

$24.10

3

SEAL, AIR CLEANER

17219-MCH-300

$3.48

4

HOUSING, AIR CLEANER

17221-MCH-000

$34.74

5

STAY, AIR CLEANER

17223-MCH-000

$26.54

6

FUNNEL, AIR

17225-MCH-000

Unavailable

7

COVER, AIR CLEANER This part replaces 17231-MCH-000.

17231-MCH-B50

$51.78

8

DIAPHRAGM, CONTROL VALVE

17238-MCH-003

Unavailable

9

DUCT, AIR CLEANER IN.

17253-MCH-300

$37.52

10

DUCT, SUB-AIR CLEANER IN.

17255-MCH-000

Unavailable

11

TUBE ASSY., DRAIN

17358-KR8-750

$7.41

12

TUBE, BREATHER

17554-MCH-000

$3.64

13

GROMMET, RADIATOR

19053-MB2-000

$4.12

14

CHAMBER, VACUUM (50)

36132-PH4-671

$38.84

15

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$31.13

16

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$264.08

17

VALVE, IN. AIR SHOT AIR CHECK This part replaces 36627-MN5-000.

36627-MN5-003

$38.94

18

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$29.21

19

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.65

20

BOLT, FLANGE (5X20)

90197-MN5-000

$2.41

21

NUT, PLATE (5MM)

90305-MN5-000

$5.09

22

WASHER, AIR CLEANER SETTING

90507-MCH-000

$1.94

23

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.48

24

O-RING (7.5X1.5)

91303-PK2-005

$2.77

25

SCREW, PAN (5MM)

91508-MM5-000

$3.80

26

SCREW, TAPPING (5X20)

93903-25480

$0.61

27

CLIP, TUBE (B12.5)

95002-02130

$1.04

28

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-20M

$8.69

29

BULK HOSE, VACUUM (3.5X8000) (3.5X110)

95005-35008-10M

$95.02

30

BULK HOSE, VACUUM (3.5X8000) (3.5X180)

95005-35008-10M

$95.02

31

BULK HOSE, VACUUM (4.5X1000) (4.5X90)

95005-45001-10M

$21.06

32

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
