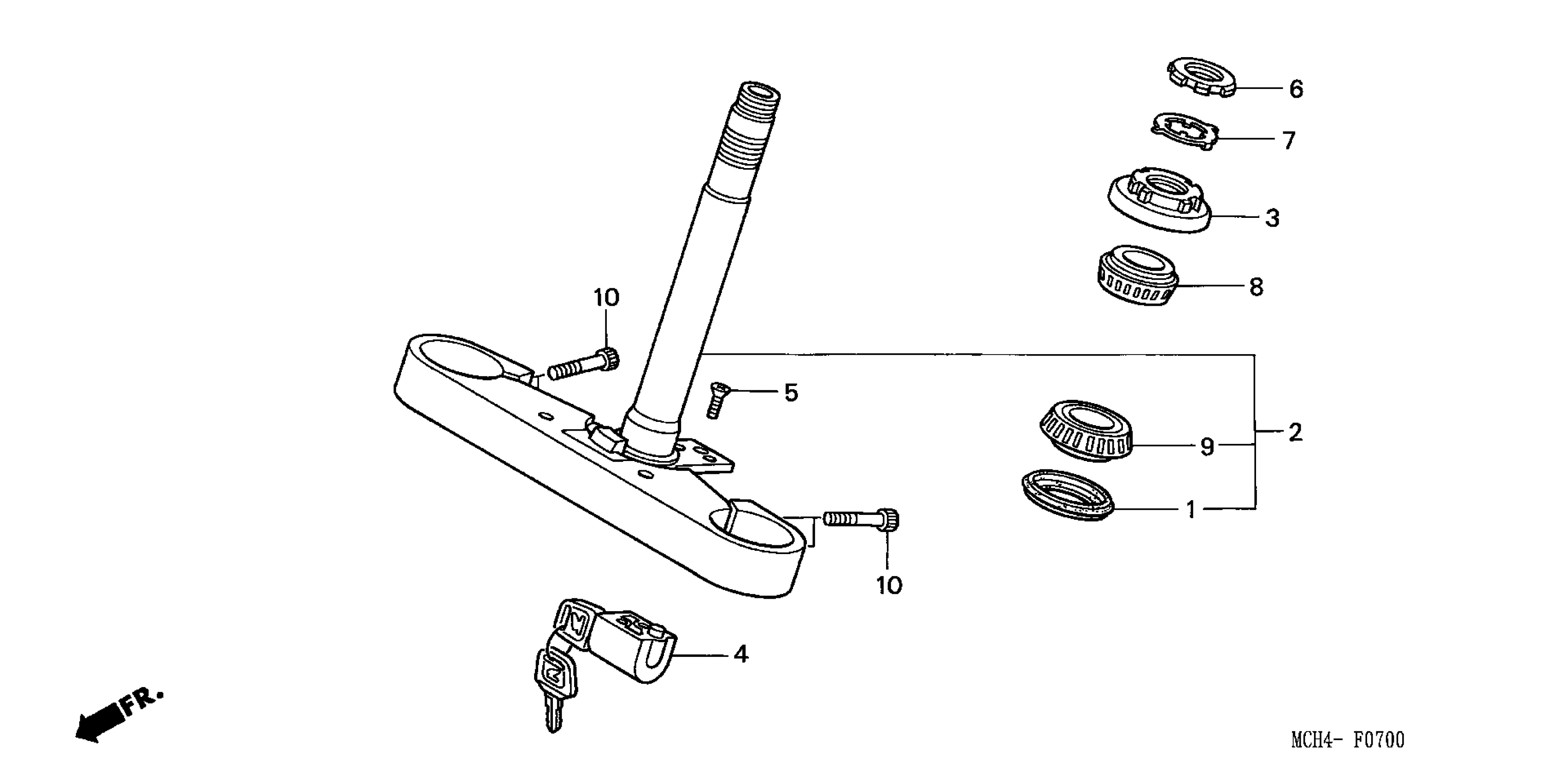

Honda VTX1800F3A (08) MOTORCYCLE, USA, VIN# 1HFSC46H-8A600001 STEERING STEM Diagram

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

STEM SUB-ASSY., STEERING

53219-MCV-R20

$495.08

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

BOLT, SOCKET (8X32)

90122-MCH-A00

$2.18
