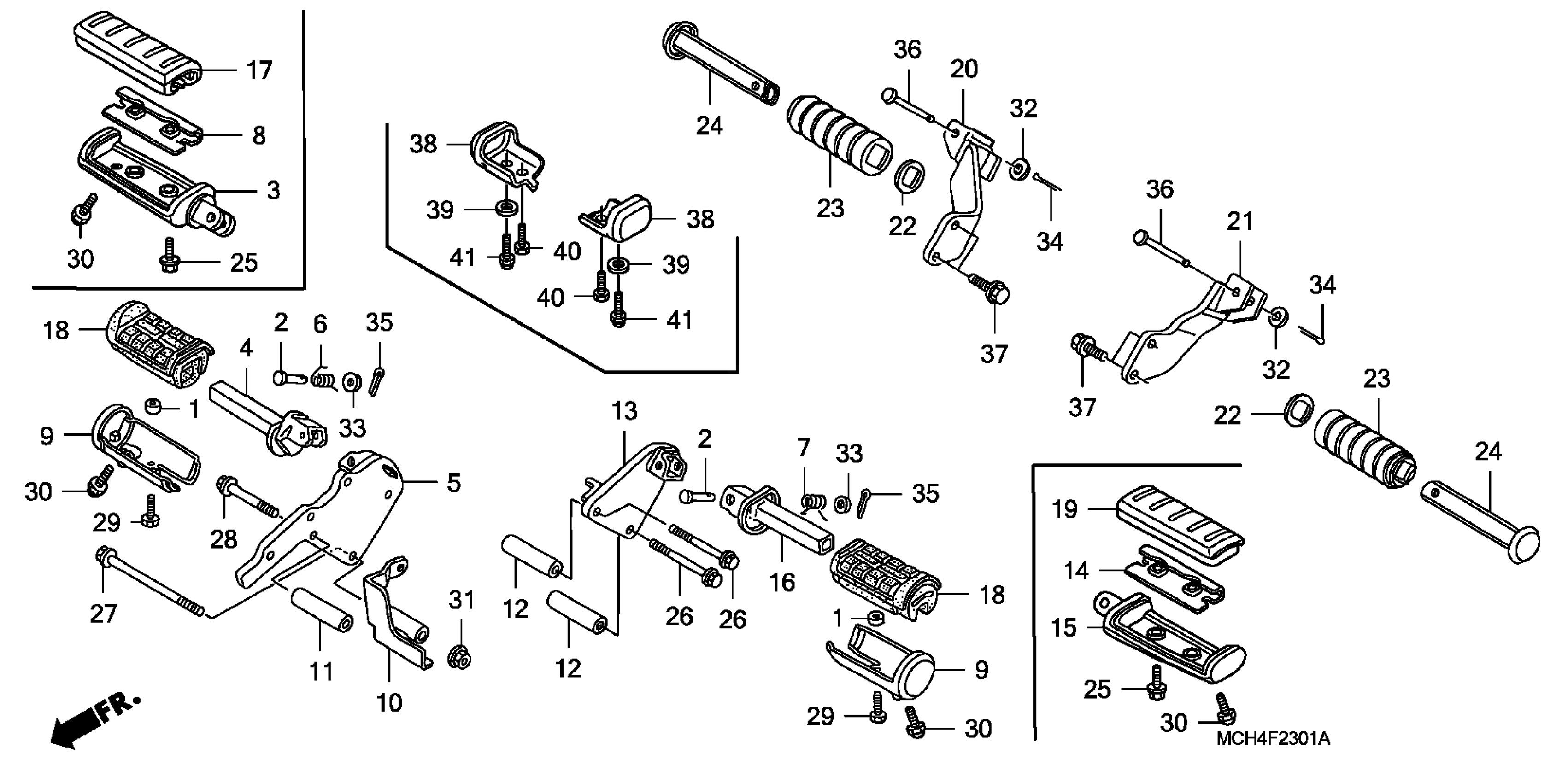

Honda VTX1800F3A (06) MOTORCYCLE, USA, VIN# 1HFSC46H-6A400001 TO 1HFSC46H-6A499999 STEP (VTX1800F) Diagram

#

Description
Price

2

PIN, STEP BAR JOINT

50603-033-010

$2.98

3

BAR, R. STEP

50612-MCH-C30

$160.78

5

PLATE, R. STEP HOLDER

50615-MCH-C10

Unavailable

6

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.07

7

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.07

8

PLATE, R. STEP

50619-MCH-C30

$5.25

10

COVER, BRAKE HOSE

50621-MCH-C10

Unavailable

11

COLLAR A, STEP

50622-MCH-010

$8.62

12

COLLAR B, STEP

50623-MCH-000

$6.94

13

PLATE, L. STEP HOLDER

50625-MCH-C10

$339.45

14

PLATE, L. STEP

50629-MCH-C30

$4.87

15

BAR, L. STEP

50642-MCH-C30

Unavailable

17

RUBBER, R. STEP

50661-MCH-C30

Unavailable

19

RUBBER, L. STEP

50671-MCH-C30

$7.52

20

BRACKET, R. PILLION STEP

50680-MCV-000

$38.22

21

BRACKET, L. PILLION STEP

50685-MCV-000

$43.62

22

WASHER, PILLION STEP

50712-413-000

$3.22

23

RUBBER, PILLION STEP

50713-MCV-000

$11.00

24

BAR, R. STEP

50715-MCV-R10

$20.70

25

BOLT, FLANGE (5X14)

90003-MCH-C30

$1.96

26

BOLT, SPECIAL FLANGE (10X90)

90112-MCH-000

$4.61

27

BOLT, SPECIAL FLANGE (10X165)

90113-MCH-000

$6.94

28

BOLT, SPECIAL FLANGE (10X100)

90116-MCH-000

$5.09

30

BOLT, CAP (8X10)

92501-08010-0B

$2.00

31

NUT, FLANGE (10MM)

90303-428-900

$3.12

31

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM)

94101-06800

Unavailable

33

WASHER, PLAIN (8MM)

94101-08000

$0.75

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

34

PIN, COTTER (1.6X25)

94201-16250

$0.94

35

PIN, SPLIT (2.0X15)

94201-20150

$0.94

36

PIN A, PILLION STEP

95015-81000

$2.01

37

BOLT, FLANGE (8X16)

95701-08016-07

$1.59
