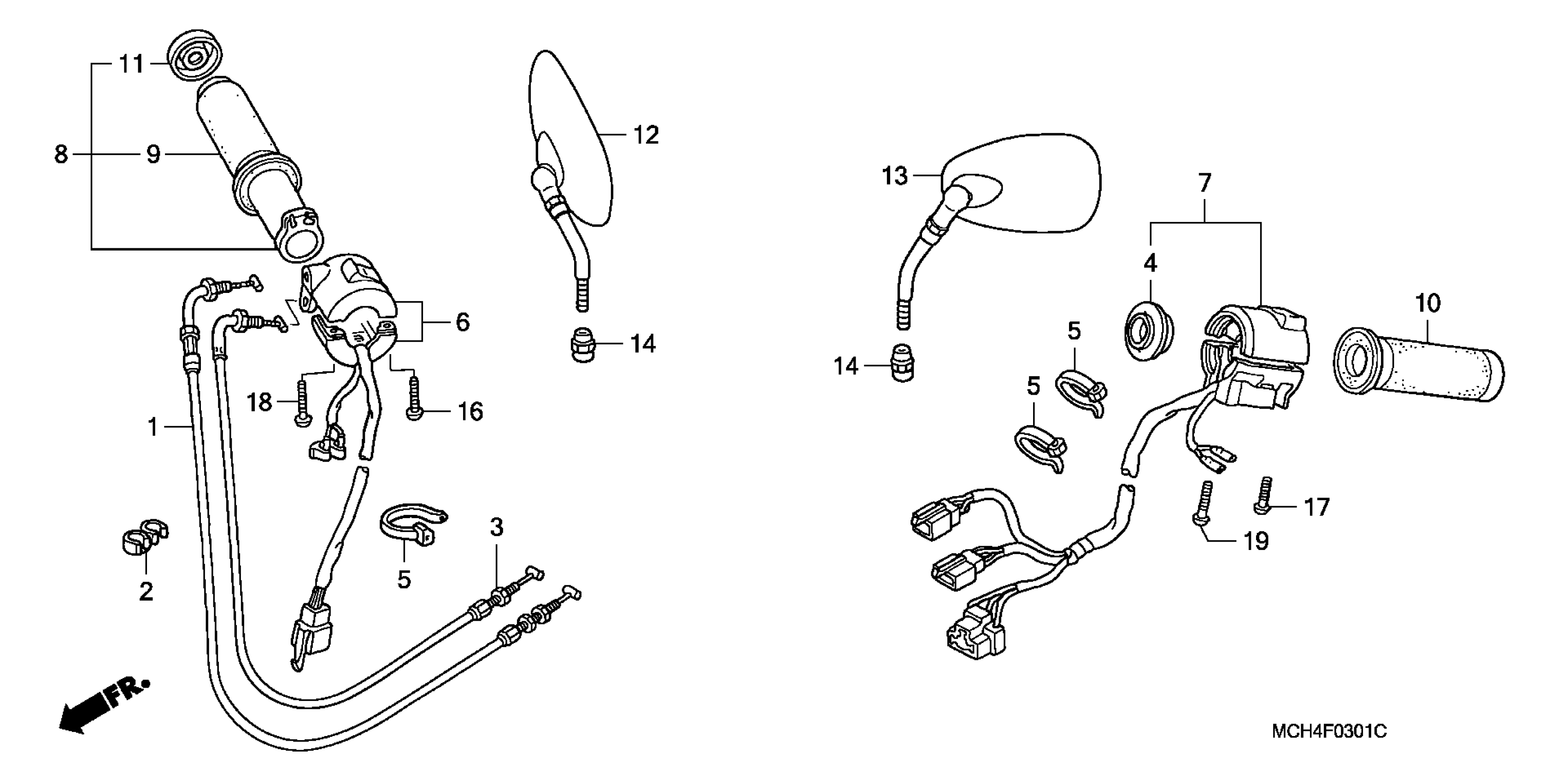

Honda VTX1800F3A (06) MOTORCYCLE, USA, VIN# 1HFSC46H-6A400001 TO 1HFSC46H-6A499999 HANDLE SWITCH (2) Diagram

CABLE A, THROTTLE

17910-MCH-000

$19.81

CLIP, THROTTLE WIRE

17915-SA7-981

$3.01

CABLE B, THROTTLE

17920-MCH-000

$20.02

ADAPTER

17962-MR1-000

$19.30

BAND, HARNESS

32161-MCH-F11

Unavailable

SWITCH ASSY., STARTER STOP

35130-MCH-F21

$150.66

SWITCH ASSY., TURN SIGNAL

35200-MCH-F21

Unavailable

GRIP, R.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

MIRROR, R. (COO) This part replaces 88210-MEM-681.

88210-MFR-305

$69.19

MIRROR, R. (COO) This part replaces 88210-MEM-682.

88210-MFR-305

$69.19

MIRROR, L. (COO) This part replaces 88220-MEM-681.

88220-MFR-305

$69.19

NUT A, LOCK

90302-MEM-680

$5.28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49
