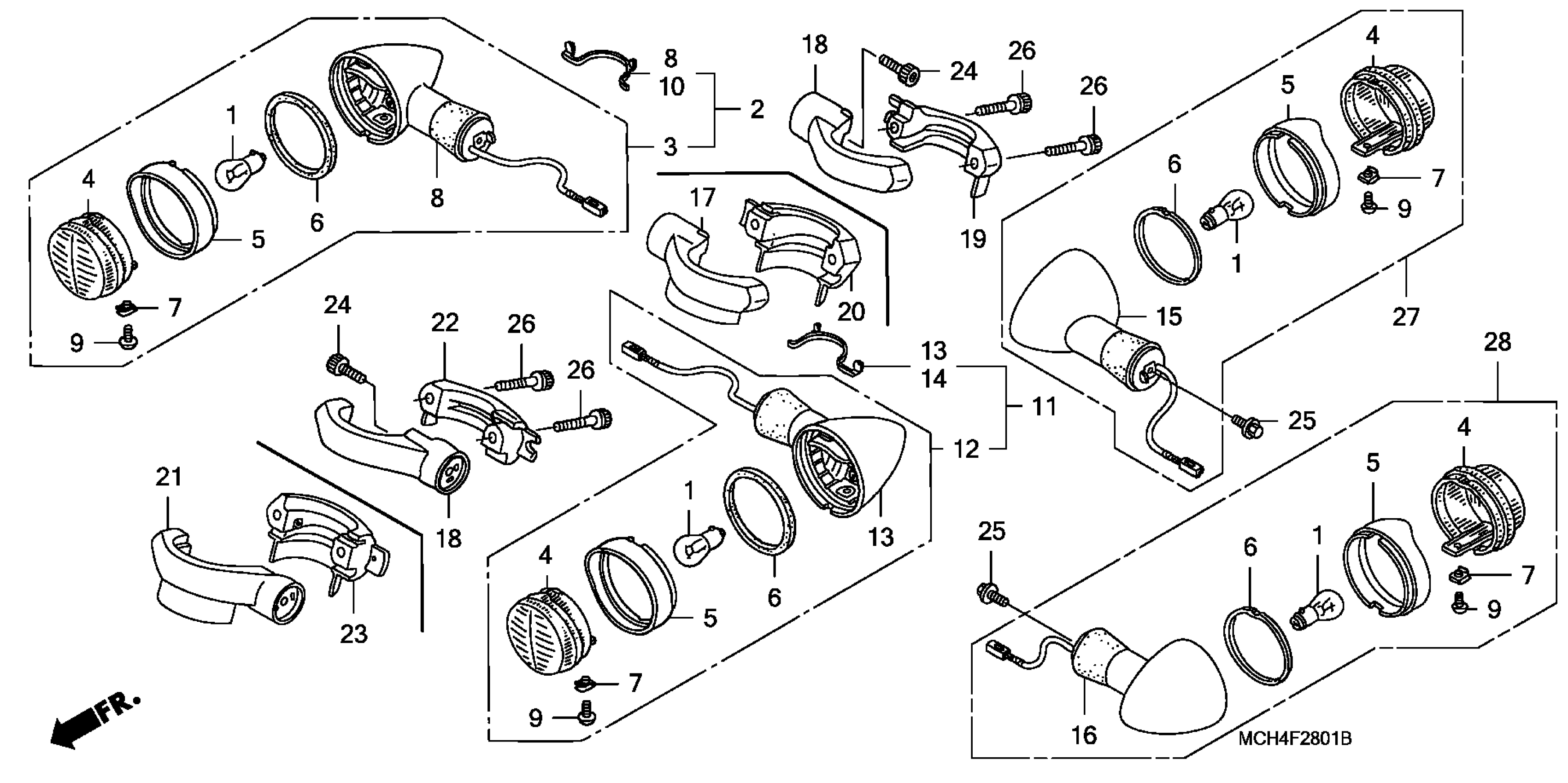

Honda VTX1800F2A (06) MOTORCYCLE, USA, VIN# 1HFSC46E-6A400001 TO 1HFSC46E-6A499999 TURN SIGNAL (2) Diagram

BULB, FR. TURN (12V 21W) (AMBER) (STANLEY)

33301-S04-004

$10.31

TURN SIGNAL ASSY., R. FR. (12V 21W)

33400-MCV-N11

$145.67

LENS, TURN SIGNAL

33401-MEC-003

$13.23

RIM, TURN SIGNAL

33402-MEC-003

$19.17

GASKET, LENS

33407-MEC-003

Unavailable

NUT, CLIP

33408-MBA-611

$2.11

BASE, R. TURN SIGNAL

33410-MCV-N11

Unavailable

BOLT, SPECIAL (4X8)

33412-MEC-003

$0.71

GUIDE, R. FR. TURN SIGNAL WIRE

33421-MCV-N10

$6.87

TURN SIGNAL ASSY., L. FR. (12V 21W)

33450-MCV-N11

$145.67

BASE, L. TURN SIGNAL

33460-MCV-N11

Unavailable

GUIDE, L. FR. TURN SIGNAL WIRE

33471-MCV-N10

$6.87

BASE, R. TURN SIGNAL

33610-MCH-F11

Unavailable

BASE, L. TURN SIGNAL

33660-MCH-F10

Unavailable

HOLDER A, R. FR. TURN SIGNAL

53103-MCV-N10

Unavailable

HOLDER B, R. FR. TURN SIGNAL

53104-MCV-N10

Unavailable

HOLDER A, L. FR. TURN SIGNAL

53113-MCV-N10

Unavailable

HOLDER B, L. FR. TURN SIGNAL

53114-MCV-N10

$38.57

BOLT, SOCKET (6X15)

90071-ME9-000

$3.67

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92

BOLT, SOCKET (6X28)

96600-06028-00

$1.80

TURN SIGNAL ASSY., R. RR. (12V 21W)

33600-MCH-F11

$77.35

TURN SIGNAL ASSY., L. RR. (12V 21W)

33650-MCH-F10

$77.35
