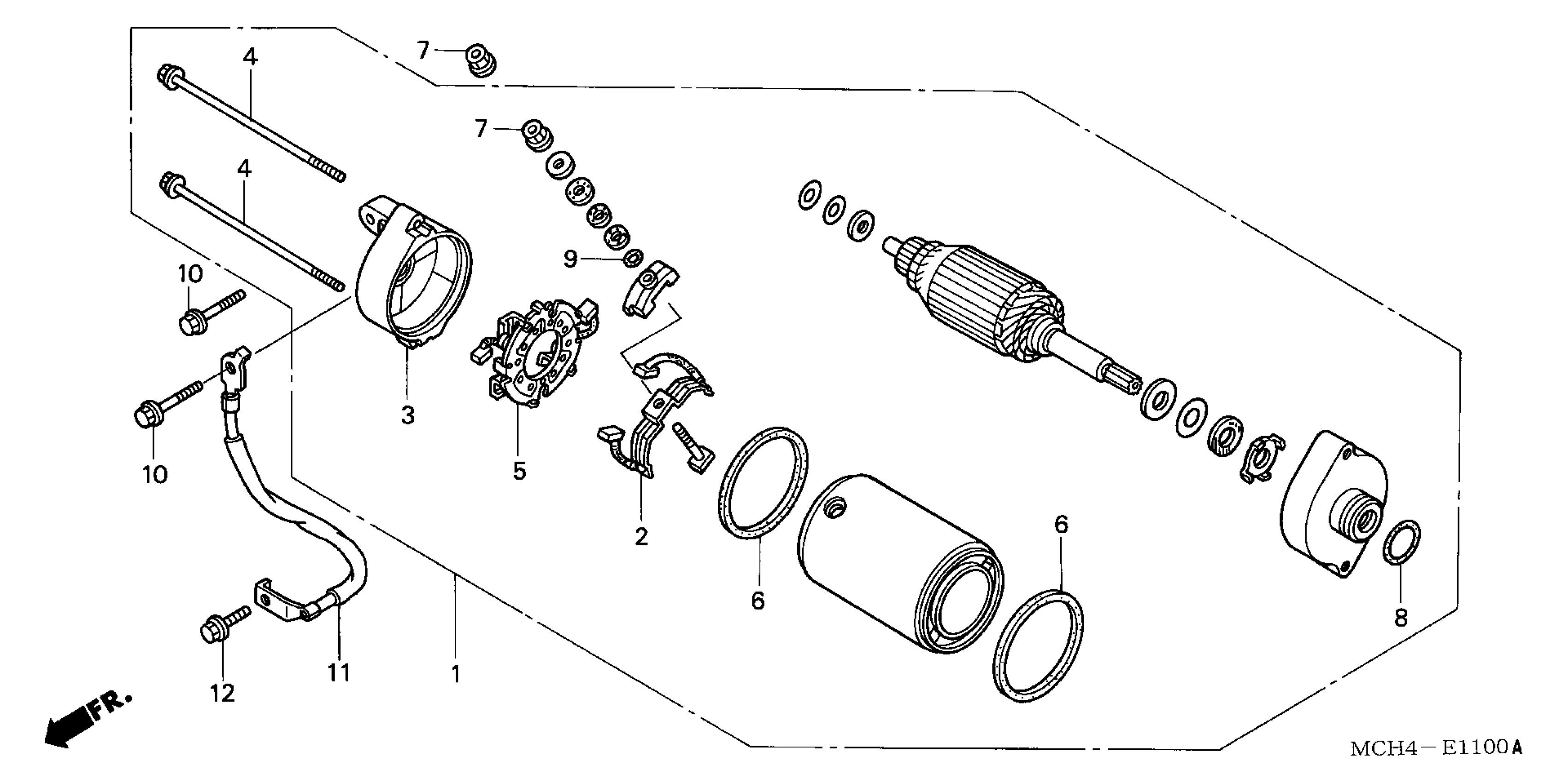

Honda VTX1800F2A (06) MOTORCYCLE, USA, VIN# 1HFSC46E-6A400001 TO 1HFSC46E-6A499999 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MCV-R20

Unavailable

2

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

3

BRACKET, RR.

31203-MV9-671

$68.75

4

BOLT, SETTING

31205-MR6-008

Unavailable

5

HOLDER SET, BRUSH

31206-MR6-008

$24.58

6

RING

31207-KS5-901

$3.12

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

8

O-RING (24.4X3.1)

91312-MG7-003

$6.34

9

O-RING

91320-MB0-000

$2.43

10

BOLT, FLANGE (6X28)

95701-06028-02

$1.92

11

CABLE, FRAME GROUND

32602-MCH-A00

$8.02

12

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
