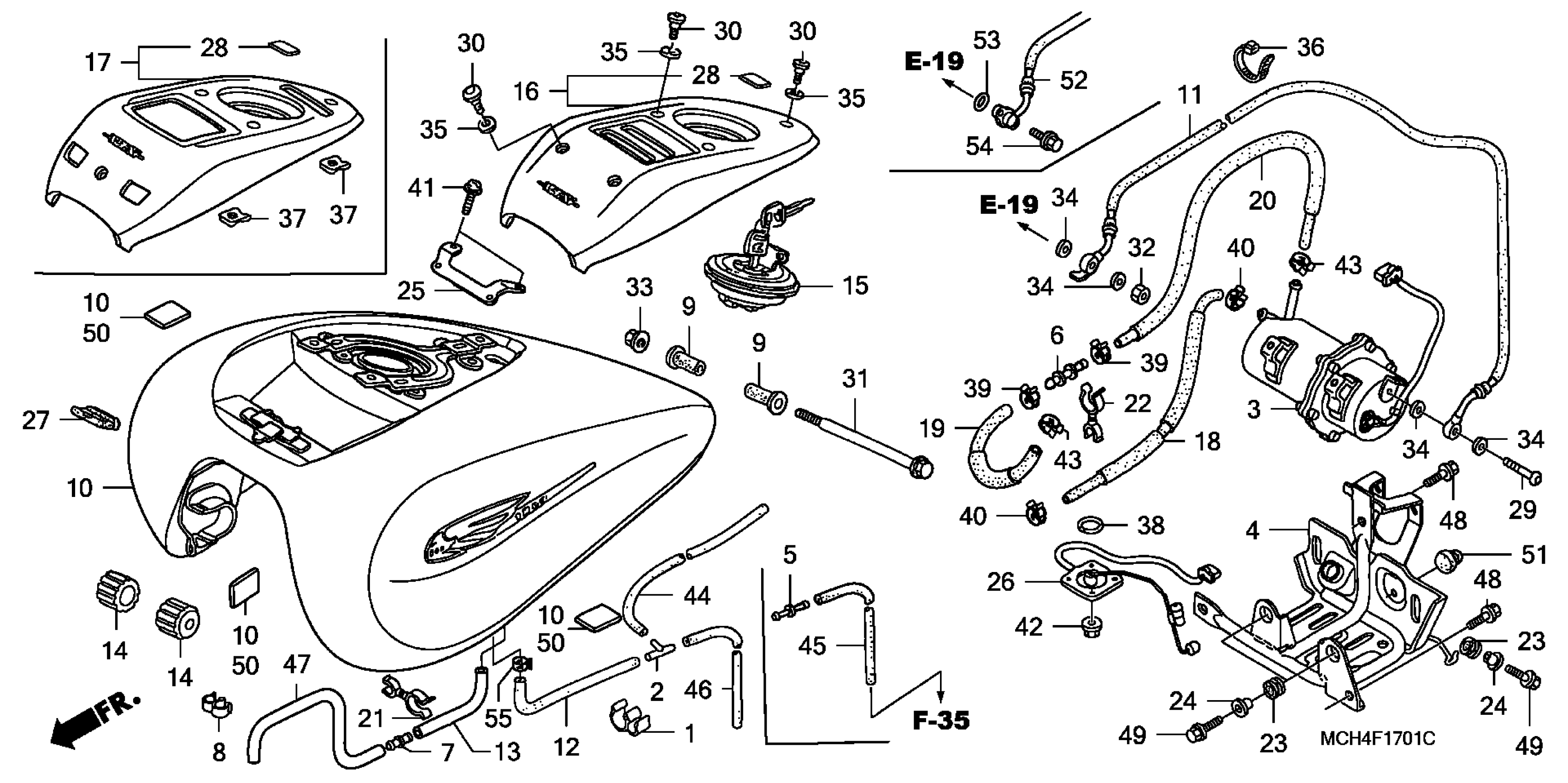

Honda VTX1800F1AC (08) MOTORCYCLE, USA, VIN# 1HFSC46D-8A600001 FUEL TANK (2) Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$6.80

3

PUMP UNIT, FUEL

16700-MCV-R13

$725.28

4

CASE STAY, FUEL PUMP

16730-MCV-R40

$77.94

5

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

6

JOINT, FUEL TUBE

16966-MR5-000

$7.23

7

JOINT, BREATHER TUBE

17359-419-670

$1.90

8

CLAMP, TUBE (7.5-11.5) (BLACK)

17439-PY3-A01

$5.46

9

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.20

10

TANK SET, FUEL (TYPE1) (WL) | Black NH1;

17520-MCH-L10ZA

Unavailable

10

TANK SET, FUEL (TYPE2) (WL) | Durango red metallic R274M;

17520-MCH-L10ZB

Unavailable

12

TUBE, FUEL TANK BREATHER

17528-MCV-K00

$7.90

13

TUBE, DRAIN

17543-MCH-C10

Unavailable

14

CUSHION, FR. FUEL TANK

17611-MCH-000

$27.21

15

CAP, FUEL FILLER This part replaces 17620-MCH-003.

17620-MCH-013

$141.15

17

COVER SET, FR. TOP (TYPE1) (WL)

17623-MCH-F10ZA

Unavailable

18

TUBE, FUEL

17680-MCV-R11

$10.77

19

TUBE, AIR VENT

17691-MCH-C11

$8.02

20

TUBE B, FUEL AIR DRAIN

17692-MCV-R11

$11.90

21

CLAMP A, TUBE

17695-MCH-C10

$2.01

22

CLAMP, TUBE

17695-MCV-R11

Unavailable

23

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.63

24

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.05

26

RESERVE UNIT

37810-MCH-F10

Unavailable

27

RUBBER, HEADLIGHT CASE MOUNTING

61313-KC5-000

$4.62

28

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.71

29

BOLT, BANJO (12MM)

90108-MBG-000

$9.60

30

SCREW, SPECIAL (6X14)

90117-MCH-C10

$2.76

31

BOLT, TANK HINGE

90135-MS2-000

$5.95

33

NUT, U (6MM)

90301-473-003

$3.89

34

WASHER, SEALING (12MM)

90428-PD6-003

$4.96

35

WASHER, TOP COVER SETTING

90508-MCH-C10

$1.96

36

BAND, WIRE HARNESS

90651-MA6-720

$3.63

37

NUT, CLIP (5MM)

90677-KAN-961

$3.89

38

O-RING (39.5X5)

91305-MC7-000

$3.16

39

CLAMP, TUBE (D12)

91405-PD1-004

$8.27

40

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.71

42

NUT, FLANGE (6MM)

94050-06080

$0.60

43

CLAMP, TUBE (D12)

95002-41200-04

$2.31

45

TUBE (CANISTER-2WAY)

17529-MCV-K30

$9.68

47

BULK HOSE, VACUUM (8X1000) (8X750)

95005-80001-50M

Unavailable

48

BOLT, FLANGE (8X14)

95701-08014-07

$0.93

49

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

50

TAPE A

64301-MN5-300

$2.69

51

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$3.97

52

HOSE, FUEL FEED

17527-MCV-K01

$175.49

53

O-RING (7.8X1.9)

91302-MCA-000

$2.12

54

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

55

CLAMP, TUBE (D8)

95002-40800-08

$2.07
