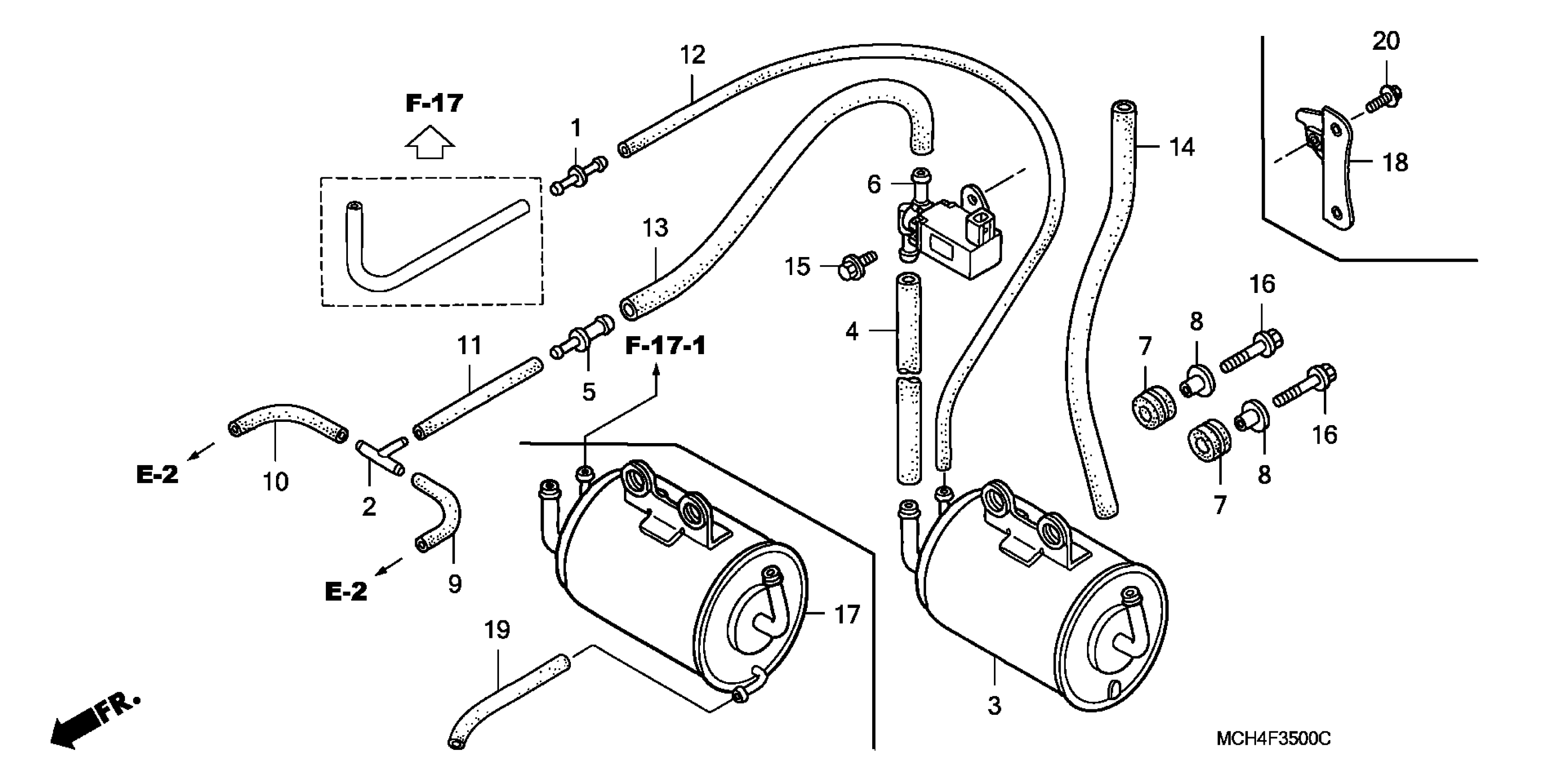

Honda VTX1800F1AC (06) MOTORCYCLE, USA, VIN# 1HFSC46D-6A400001 TO 1HFSC46D-6A499999 EVAP CANISTER (AC) Diagram

JOINT A, VACUUM TUBE

17201-MG9-000

$14.31

TUBE (PCS-CANISTER)

17412-MCH-770

$3.39

JOINT, TUBE

19126-KM1-010

$3.45

VALVE ASSY., PURGE CONTROL SOLENOID

36162-P2M-A01

$333.13

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.77

COLLAR (6.2X12)

90501-425-000

$4.36

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (8X1000) (8X260)

95005-80001-20M

$21.47

BULK HOSE, VACUUM (8X1000) (8X370)

95005-80001-20M

$21.47

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

CANISTER

17410-MCV-R40

$274.39

BRACKET, PURGE CONTROL SOLENOID

50329-MCV-R40

$15.25

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-50M

$12.31

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
