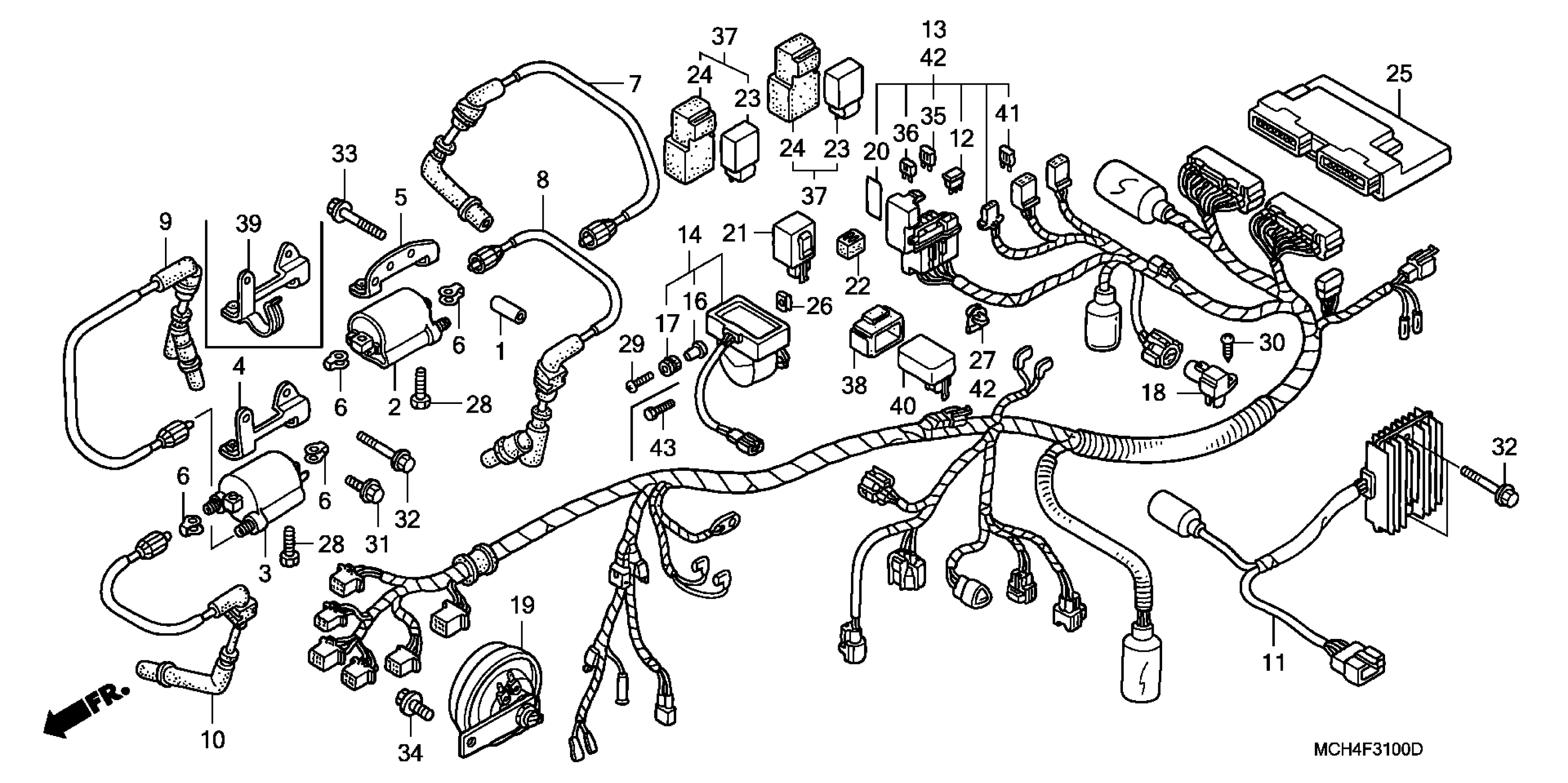

Honda VTX1800F1AC (05) MOTORCYCLE, USA, VIN# 1HFSC46C-5A300001 TO 1HFSC46C-5A399999 WIRE HARNESS Diagram

COLLAR, AIR CLEANER ELEMENT SETTING

17212-MR1-000

Unavailable

COIL, IGNITION

30510-MCC-003

$89.93

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

STAY, RR. IGNITION COIL

30515-MCH-000

$5.26

SPACER, IGNITION COIL

30520-ML7-000

$3.77

WIRE, IGNITION (1)

30751-MCH-000

$56.31

WIRE, IGNITION (2)

30752-MCH-000

$47.70

WIRE, IGNITION (3)

30753-MCH-000

$48.72

WIRE, IGNITION (4)

30754-MCH-000

$44.46

RECTIFIER ASSY., REGULATOR

31600-MCH-000

$145.78

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

SENSOR, BANK ANGLE This part replaces 35160-MCH-003.

35160-MCH-013

Unavailable

SENSOR, BANK ANGLE This part replaces 35161-MCH-003.

35160-MCH-013

Unavailable

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

SENSOR, MAP

37830-MCF-003

$206.58

HORN ASSY. (HIGH)

38110-MCH-003

Unavailable

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

PGM-FI UNIT

38770-MCH-F41

$1,080.30

NUT, CLIP (4MM)

64527-KE8-700

$6.00

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.67

BOLT, HEX. (6X22)

92101-06022-4J

$4.19

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

RELAY ASSY., STARTER

38500-GC7-612

$50.16

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

STAY, FR. IGNITION COIL

30514-MCV-R10

$5.66

RELAY, TURN SIGNAL POSITION

38301-MCV-N11

$41.42

FUSE, MINI (5A)

98200-40500

$1.49

WIRE HARNESS

32100-MCH-F41

Unavailable

BOLT, HEX. (4X22)

92101-04022-0A

$1.49
