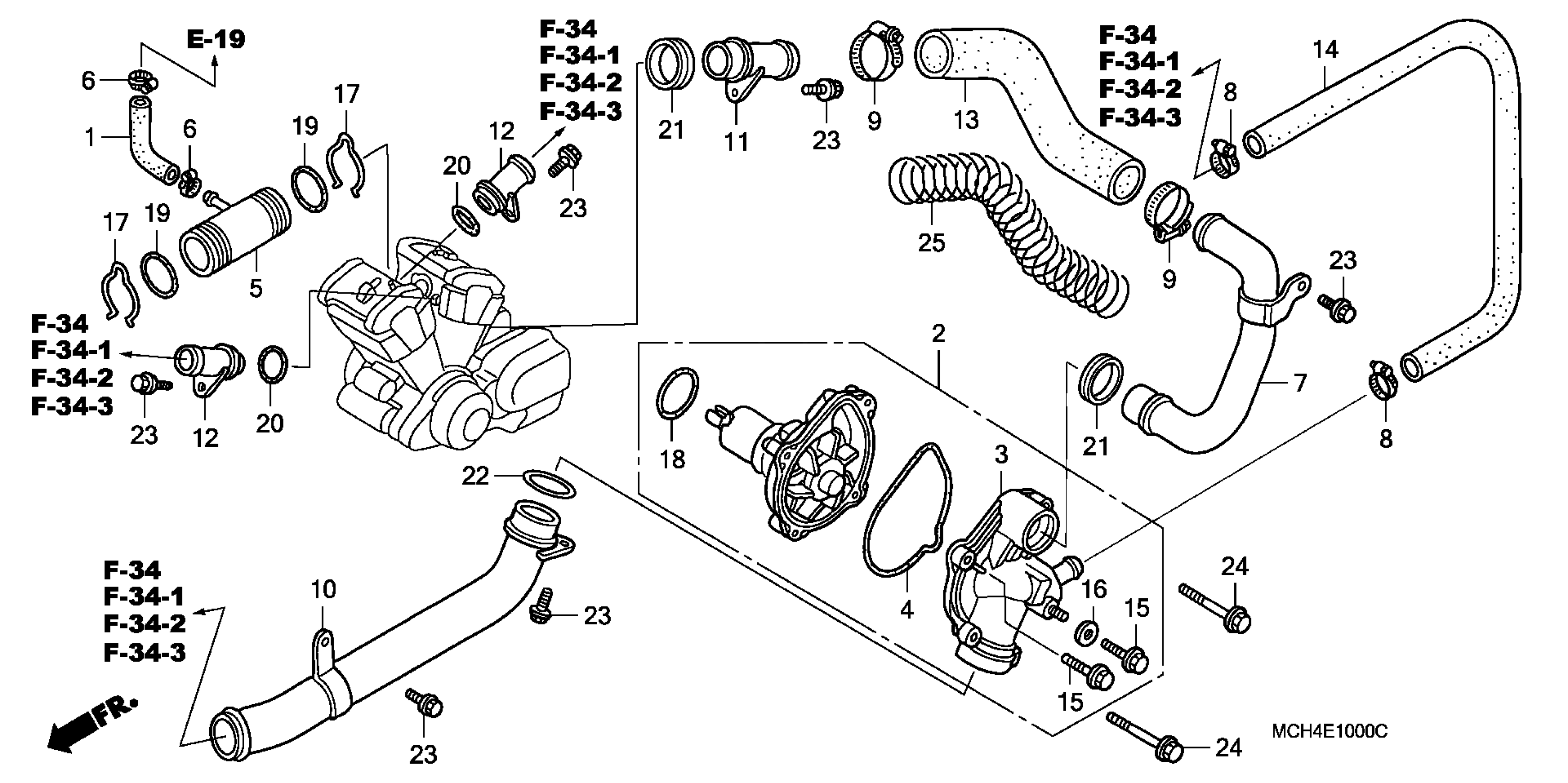

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 WATER PUMP Diagram

#

Description
Price

1

HOSE, THROTTLE BODY

19123-MCH-000

$4.47

2

WATER PUMP ASSY.

19200-MCH-000

$297.42

3

COVER, WATER PUMP

19220-MCH-000

Unavailable

4

GASKET, WATER PUMP COVER

19226-MCH-003

$8.24

5

JOINT, WATER (FR/RR CYLINDER)

19505-MCH-000

Unavailable

6

CLAMP, WATER HOSE

19507-MAL-600

$5.25

7

PIPE, INLET WATER (A)

19510-MCH-000

Unavailable

8

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

9

CLAMP, WATER HOSE

19516-MB6-000

$13.31

10

PIPE, INLET WATER (B)

19520-MCH-010

Unavailable

11

PIPE C, WATER

19524-MCH-000

$18.75

12

PIPE A, WATER

19525-MCH-000

$18.46

13

HOSE A, WATER

19526-MCH-000

$15.24

14

HOSE D, WATER

19531-MCH-010

$42.16

15

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

17

CLIP, RING (24MM)

90601-MCH-000

$2.46

18

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

19

O-RING (23.5X2.2)

91311-MCH-003

$2.71

20

O-RING (19X3) (NOK)

91312-KE7-003

$2.41

21

SEAL, WATER PIPE

91315-MB0-013

$2.50

22

O-RING (27X3.1) (FRAME NO.) This part replaces 91315-MCH-000.

91315-MCH-003

$4.14

23

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

24

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.59

24

BOLT, FLANGE (6X45)

95701-06045-07

$2.59
