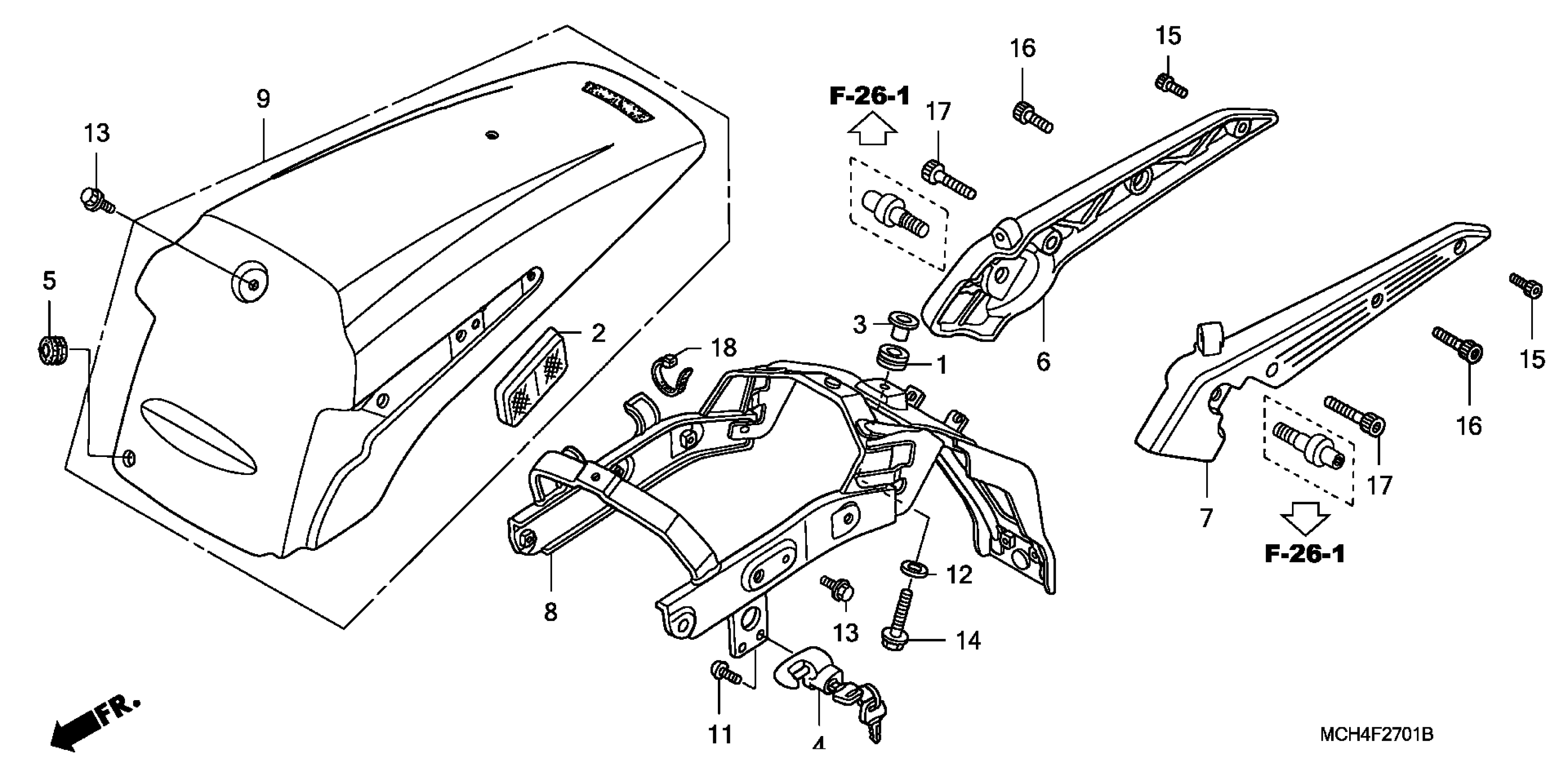

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 REAR FENDER + GRAB RAIL (VTX1800F) Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

REFLECTOR, RR. SIDE REFLEX

33741-MEG-671

$10.04

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.51

GROMMET, OIL TUBE

55204-GJ2-000

$3.24

GRAB RAIL, R.

77330-MCH-L10

$391.46

GRAB RAIL, L.

77340-MCH-L10

$391.46

GRAB RAIL (INNER)

77350-MCH-F10

$176.49

FENDER SET, RR. (TYPE1) (WL) | Black NH1;

80110-MCH-L10ZA

$775.88

FENDER SET, RR. (TYPE2) (WL) | Durango red metallic R274M;

80110-MCH-L10ZB

$775.88

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.09

WASHER, PLAIN (6MM)

94103-06800

$0.72

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

BOLT, FLANGE (6X25)

95801-06025-08

$1.79

BOLT, SOCKET (8X22)

96600-08022-00

$1.63

BOLT, SOCKET (10X32)

96600-10032-00

$1.93

BOLT, SOCKET (10X40)

96600-10040-00

$1.93

BAND, WIRE (BLACK)

90652-KT1-771

$4.28
